LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMB3090-R050-000R0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8839lm | 1.2A | 85°C | 68.1V | 108 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
|
CMB3090-R050-000Q0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMB3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8839lm | 1.8A | 85°C | 45.42V | 108 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.75mm | 23.00mm Dia | Flat |
|
CMA3090-0000-000Q0H0AL7BLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11720lm (Typ) | 1.8A | 85°C | 45V | 145 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0Z0A27HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 8220lm (Typ) | 1.8A | 85°C | 45V | 101 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0Z0A30HLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.8A | 85°C | 45V | 107 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9286lm (Typ) | 1.8A | 85°C | 45V | 115 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0Z0AL5ALED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9541lm (Typ) | 1.8A | 85°C | 45V | 118 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.8A | 85°C | 45V | 107 lm/W | 3.6A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0H0AL7BLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11270lm (Typ) | 1.2A | 85°C | 68V | 138 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0Z0A27HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 8220lm (Typ) | 1.2A | 85°C | 68V | 101 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0Z0A30HLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.2A | 85°C | 68V | 106 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9286lm (Typ) | 1.2A | 85°C | 68V | 114 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0Z0AL5ALED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9541lm (Typ) | 1.2A | 85°C | 68V | 117 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8682lm (Typ) | 1.2A | 85°C | 68V | 106 lm/W | 2.4A | 95 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000Q0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Bulk | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 9909lm (Typ) | 1.8A | 85°C | 45V | 122 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMA3090-0000-000R0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
0 |
|
Veri Sayfası |
XLamp® CMA3090 | Bulk | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 9909lm (Typ) | 1.2A | 85°C | 68V | 121 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
AB-GES-C14124W401N2LED ENG AB-GES NEUT WH RND 4000K |
0 |
|
Veri Sayfası |
AB-GES | Bag | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2700lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 140.00mm Dia | - | - | Flat |
|
|
AB-GES-C14124W501N2LED ENG AB-GES COOL WH RND 5000K |
0 |
|
Veri Sayfası |
AB-GES | Bag | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 2700lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 140.00mm Dia | - | - | Flat |
|

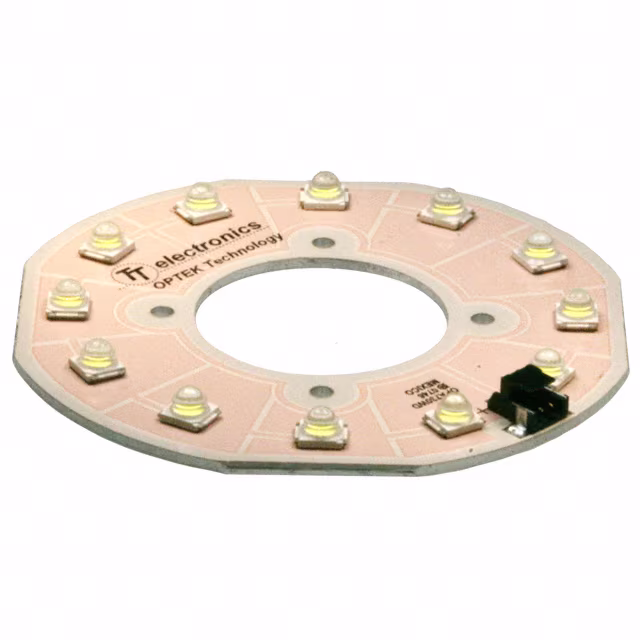

OPA730WDLED MOD OPA730 CL WH RING 6500K |
0 |
|
Veri Sayfası |
OPA730 | - | Obsolete | LED Module | White, Cool | 6500K | - | Ring (Disc) | 576lm (Typ) | 700mA | 25°C | 21.6V | 38 lm/W | 700mA | - | 40° | With Connector | 85.10mm Dia | 6.30mm | 35.60mm Dia | Flat |
|
|
CXA3590-0000-000NT0AB27GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Veri Sayfası |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
