LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000NTUAB65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Veri Sayfası |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTUAB65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Veri Sayfası |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 72V | 101 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
0A008-EGBF27508SEOUL VIOSYS, 33MW, 150MA, 3UP O |
0 |
|
- |
LUXdrive™ | Bag | Active | LED Engine | UltraViolet | - | 275nm | Starboard | 33mW | 100mA | 25°C | 16.8V | - | 200mA | - | 125° | - | 19.81mm L x 19.30mm W | 2.79mm | - | Flat |
|
SBR-70-G-R75-JK200LED MOD SBR-70 GREEN STARBOARD |
0 |
|
Veri Sayfası |
SBR-70 | Tray | Active | LED Module | Green | - | 530nm | Starboard | 2100lm (Typ) | 10.5A | 25°C | 4.5V | 44 lm/W | 14.0A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|

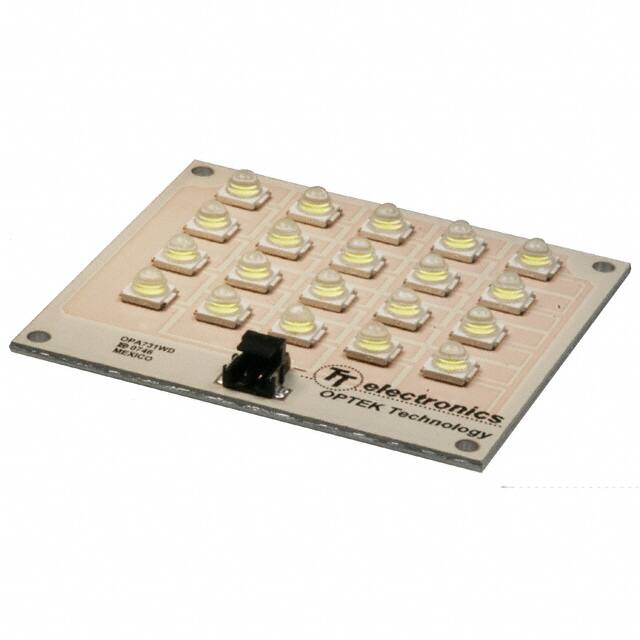

OPA731WDLED MOD OPA731 COOL WH SQ 6500K |
0 |
|
- |
OPA731 | - | Obsolete | LED Module | White, Cool | 6500K | - | Square | 960lm (Typ) | 1.4A | 25°C | 18V | 38 lm/W | 1.4A | - | 40° | With Connector | 69.85mm L x 63.50mm W | 1.45mm | - | Flat |
|
|
CXA3590-0000-000N0UZ457FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Veri Sayfası |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 2.4A | 85°C | 36V | 95 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0UZ457FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Veri Sayfası |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 77V | 89 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UBD27GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCB35GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCB40GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
PT-54-G-L31-MPJLED MOD PT-54 GREEN RECT |
0 |
|
Veri Sayfası |
PT-54 | Tray | Not For New Designs | LED Module | Green | - | 525nm | Rectangle | 2400lm (2000lm ~ 2800lm) | 13.5A | 40°C | 5.2V | 34 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
|
A008-EGBF27508SEOUL VIOSYS, 33MW, 150MA, 3UP O |
0 |
|
Veri Sayfası |
LUXdrive™ | Bulk | Active | LED Engine | UltraViolet | - | 275nm | Starboard | 33mW | 100mA | 25°C | 16.8V | - | 200mA | - | 125° | - | 19.81mm L x 19.30mm W | 2.79mm | - | Flat |
|
|
CXB3590-0000-000N0BDD40ELED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 14500lm (Typ) | 2.4A | 85°C | 36V | 168 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0BDD50ELED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 2.4A | 85°C | 36V | 168 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0BDD57ELED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | - | 2.4A | 85°C | 36V | 168 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0BDD65ELED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | - | 2.4A | 85°C | 36V | 168 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HCD30GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HDB40GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 13500lm (13000lm ~ 14000lm) | 2.4A | 85°C | 36V | 156 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HDB50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 13500lm (13000lm ~ 14000lm) | 2.4A | 85°C | 36V | 156 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HDB57ELED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Veri Sayfası |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 13500lm (13000lm ~ 14000lm) | 2.4A | 85°C | 36V | 156 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
