LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

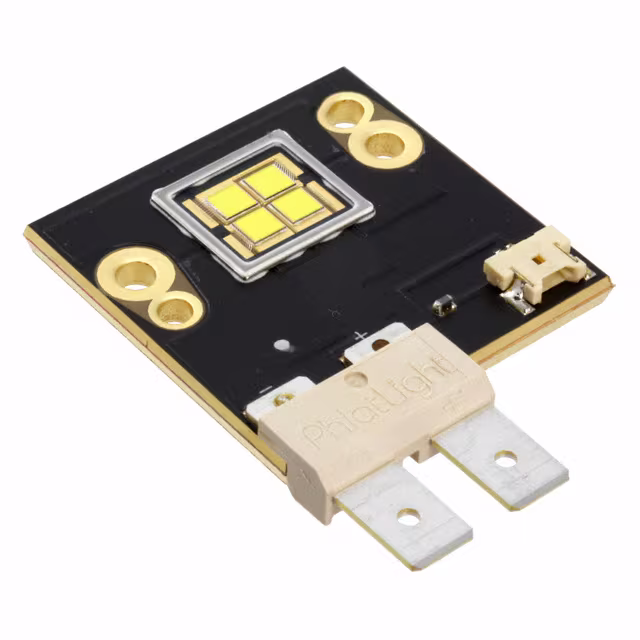

CBM-360-W65S-D32-WA102LED MOD CBM-360 CL WHT SQ 6500K |
0 |
|
Veri Sayfası |
CBM-360 | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Square | - | 6.3A | - | - | - | 6.3A | - | - | With Connector | - | - | - | Flat |
|
LHC1-2780-1203LED COB LUXEON WARM WHT SQ 2700K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1125lm (Typ) | 300mA | 85°C | 35.5V | 106 lm/W | 600mA | 80 | 125° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
LHC1-2780-1204LED COB LUXEON WARM WHT SQ 2700K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1700lm (Typ) | 450mA | 85°C | 35.5V | 106 lm/W | 900mA | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
LHC1-2780-1208LED COB LUXEON WARM WHT SQ 2700K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3400lm (Typ) | 900mA | 85°C | 35.5V | 106 lm/W | 1.8A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
LHC1-3080-1203LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1225lm (Typ) | 300mA | 85°C | 35.5V | 115 lm/W | 600mA | 80 | 125° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
LHC1-3080-1204LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1825lm (Typ) | 450mA | 85°C | 35.5V | 115 lm/W | 900mA | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
LHC1-3080-1205LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2450lm (Typ) | 600mA | 85°C | 35.5V | 115 lm/W | 1.2A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-3080-1208LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3650lm (Typ) | 900mA | 85°C | 35.5V | 115 lm/W | 1.8A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
LHC1-3090-1203LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1000lm (Typ) | 300mA | 85°C | 35.5V | 93 lm/W | 600mA | 90 | 125° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
LHC1-3090-1205LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2000lm (Typ) | 600mA | 85°C | 35.5V | 93 lm/W | 1.2A | 90 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-3090-1208LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2950lm (Typ) | 900mA | 85°C | 35.5V | 93 lm/W | 1.8A | 90 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
LHC1-4080-1203LED COB LUXEON NEUT WHT SQ 4000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1300lm (Typ) | 300mA | 85°C | 35.5V | 122 lm/W | 600mA | 80 | 125° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
LHC1-4080-1204LED COB LUXEON NEUT WHT SQ 4000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1950lm (Typ) | 450mA | 85°C | 35.5V | 122 lm/W | 900mA | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-4080-1205LED COB LUXEON NEUT WHT SQ 4000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2600lm (Typ) | 600mA | 85°C | 35.5V | 122 lm/W | 1.2A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-5080-1203LED COB LUXEON COOL WHT SQ 5000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1325lm (Typ) | 300mA | 85°C | 35.5V | 124 lm/W | 600mA | 80 | 125° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
LHC1-5080-1204LED COB LUXEON COOL WHT SQ 5000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1975lm (Typ) | 450mA | 85°C | 35.5V | 124 lm/W | 900mA | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-5080-1208LED COB LUXEON COOL WHT SQ 5000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3950lm (Typ) | 900mA | 85°C | 35.5V | 124 lm/W | 1.8A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
LHC1-4080-1208LED COB LUXEON NEUT WHT SQ 4000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3900lm (Typ) | 900mA | 85°C | 35.5V | 122 lm/W | 1.8A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
LHC1-2780-1205LED COB LUXEON WARM WHT SQ 2700K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2250lm (Typ) | 600mA | 85°C | 35.5V | 106 lm/W | 1.2A | 80 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
|
|
LHC1-3090-1204LED COB LUXEON WM WHT SQ 3000K |
0 |
|
Veri Sayfası |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1475lm (Typ) | 450mA | 85°C | 35.5V | 93 lm/W | 900mA | 90 | 125° | - | 24.00mm L x 20.00mm W | 1.50mm | 13.00mm Dia | Flat |
