LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2520-0000-000N00Q427GLED COB XLAMP WARM WHT SQU 2700K |
4 |
|
Veri Sayfası |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
SI-B8T07128HWWLED MOD LT-S282H LNR STRP 4000K |
0 |
|
Veri Sayfası |
LT-S282H | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1120lm (Typ) | 300mA | 50°C | 23.4V | 160 lm/W | 540mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
SPHWHAHDNH25YZT3D4LED COB D GEN4 NEUT WHT SQ 4000K |
0 |
|
Veri Sayfası |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5227lm (Typ) | 900mA | 85°C | 33.6V | 173 lm/W | 2.3A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
CLU028-1203C4-353M2K1LED COB CLU028 WARM WHT SQ 3500K |
0 |
|
Veri Sayfası |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1378lm (Typ) | 270mA | 85°C | 34.6V | 147 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
CMA1825-0000-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
21 |
|
Veri Sayfası |
XLamp® CMA1825 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3370lm (Typ) | 700mA | 85°C | 34.6V | 139 lm/W | 1.6A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CMA1825-0000-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
4 |
|
Veri Sayfası |
XLamp® CMA1825 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3063lm (Typ) | 700mA | 85°C | 34.6V | 126 lm/W | 1.6A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CMA1825-0000-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
Veri Sayfası |
XLamp® CMA1825 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2849lm (Typ) | 700mA | 85°C | 34.6V | 118 lm/W | 1.6A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
CXA1830-0000-000N00T235FLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 3320lm (3220lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
BXRE-27G6500-D-83LED COB V SER GEN 8 WHT SQ 2700K |
0 |
|
Veri Sayfası |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 142 lm/W | - | 90 | - | - | - | - | 22.00mm Dia | Flat |
|
CXA2530-0000-000N0UR440HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Veri Sayfası |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 800mA | 85°C | 37V | 91 lm/W | 1.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CLU028-1204C4-273H5K2LED COB CLU028 WARM WHT SQ 2700K |
0 |
|
Veri Sayfası |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1399lm (Typ) | 360mA | 85°C | 34.6V | 112 lm/W | 920mA | 90 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
|
CXA2530-0000-000N0HU240FLED COB XLAMP NEUT WHT SQU 4000K |
5 |
|
Veri Sayfası |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CMT1922-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
11 |
|
Veri Sayfası |
XLamp® CMT1922 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2784lm (Typ) | 600mA | 85°C | 34.2V | 136 lm/W | 785mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.45mm | 14.50mm Dia | Flat |
|
BXRC-30G4000-B-73LED COB VERO 18 WM WH RND 3000K |
0 |
|
Veri Sayfası |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3614lm (Typ) | 900mA | 85°C | 34.1V | 118 lm/W | 1.8A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-40G4000-B-73LED COB VERO 18 WHT RND 4000K |
0 |
|
Veri Sayfası |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3875lm (Typ) | 900mA | 85°C | 34.1V | 126 lm/W | 1.8A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-27E4000-B-73LED COB VERO 18 WM WHT RND 2700K |
0 |
|
Veri Sayfası |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4180lm (Typ) | 900mA | 85°C | 34.1V | 136 lm/W | 1.8A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
CXB1830-0000-000N0UT435GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Veri Sayfası |
XLamp® CXB1830 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CMU2239-0000-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
15 |
|
Veri Sayfası |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6060lm (Typ) | 1.08A | 85°C | 33.7V | 167 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
AB-FO02427-02012-9A1LED COB AB-FO WH LNR STRP 2700K |
0 |
|
Veri Sayfası |
AB-FO | Bag | Active | Chip On Board (COB) | White, Warm | 2700K | - | Linear Light Strip, Flexible | 447lm | 250mA | - | 24V | 70 lm/W | 250mA | 90 | 150° | IP65 | - | 2.20mm | - | Flat |
|

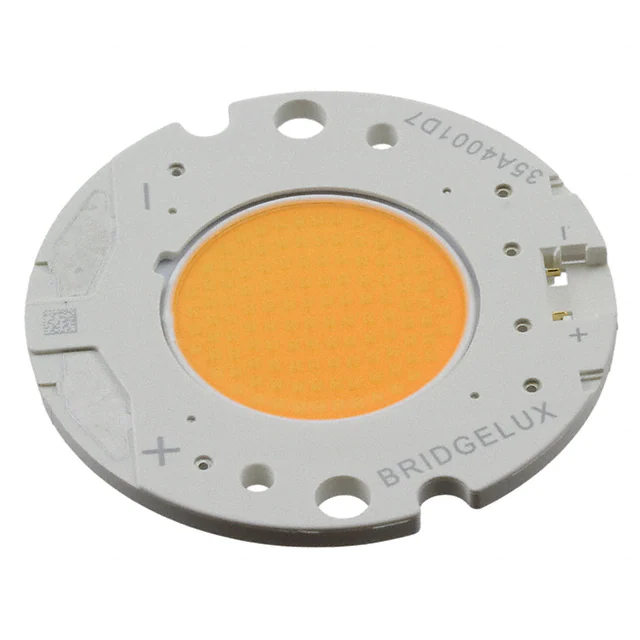

BXRC-35A4001-D-73LED COB DECOR WM WH ROUND 3500K |
14 |
|
Veri Sayfası |
Décor Series™ Class A Vero® 18 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3524lm (Typ) | 1.05A | 85°C | 28.1V | 119 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
