LED COB'ler, Motorlar, Modüller, Şeritler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Renk | CCT (K) (Renk Sıcaklığı) | Dalga Boyu | Yapılandırma | Parlaklık Akışı @ Akım/Sıcaklık | Akım - Test | Sıcaklık - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | Akım - Maksimum | CRI (Renk Yansıtma Endeksi) | Görüş Açısı | Özellikler | Boyut / Ölçü | Yükseklik | Işık Yayan Yüzey (LES) | Lens Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-27G20F0-C-82LED COB V13 F90 ARRAY SQ 2700K |
367 |
|
Veri Sayfası |
V13 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3146lm (Typ) | 500mA | 25°C | 33.4V | 184 lm/W | 1.26A | 90 | 120° | Dimming | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
CXA2530-0000-000N0YR227GLED COB XLAMP WARM WHT SQU 2700K |
112 |
|
Veri Sayfası |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 36V | 87 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
SSB1-48F01-4080-00LED MOD SSB1 WHT LNR STRP 4000K |
1,599 |
|
Veri Sayfası |
SSB1 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 2384lm (Typ) | 400mA | 50°C | 34.4V | 172 lm/W | 600mA | 80 | - | - | 559.50mm L x 22.00mm W | 6.00mm | - | Flat |
E0900.jpg)
|
L2C5-40901203E0900LED COB LUXEON WHT RECT 4000K |
284 |
|
Veri Sayfası |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1301lm (Typ) | 300mA | 85°C | 34.5V | 126 lm/W | 600mA | 90 | 115° | - | 16.00mm L x 19.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
CTM-18-6527-90-36-TW01LED MOD CTM WHITE RECT 6500K |
337 |
|
Veri Sayfası |
CTM, Human Centric (HCL) | Tray | Active | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Rectangle | 1785lm Warm White, 2000lm Cool White | 550mA | 85°C | 37V | 88 lm/W Warm White, 98 lm/W Cool White | 660mA | 90 | 130° | - | 24.00mm L x 20.00mm W | 1.58mm | 17.50mm Dia | Flat |
|
|
BXRE-40G20F0-C-82LED COB V13 F90 ARRAY SQ 4000K |
474 |
|
Veri Sayfası |
V13 F90 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3275lm (Typ) | 500mA | 25°C | 33.4V | 191 lm/W | 1.26A | 90 | 120° | Dimming | 19.00mm L x 19.00mm W | 1.65mm | 14.80mm Dia | Flat |
|
BXRC-40E4000-B-73LED COB VERO 18 WHT RND 4000K |
200 |
|
Veri Sayfası |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4528lm (Typ) | 900mA | 85°C | 34.1V | 148 lm/W | 1.8A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
LST1-01F09-IR03-00LED MOD OSLON STARBOARD |
222 |
|
Veri Sayfası |
OSLON® Black | Bulk | Active | LED Module | - | - | 940nm | Starboard | 970mW | 350mA | 25°C | 2.75V | - | 1A | - | 150° | - | - | - | - | Domed |
|
CXB2530-0000-000N0HT435HLED COB XLAMP WARM WHT SQU 3500K |
107 |
|
Veri Sayfası |
XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 36V | 124 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
BXRE-35E4000-C-83LED COB V SER GEN 8 WHT SQ 3500K |
309 |
|
Veri Sayfası |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 182 lm/W | - | 80 | - | - | - | - | 18.00mm Dia | Flat |
|
BXRE-50C4001-C-74LED COB V18 CL WHT SQUARE 5000K |
430 |
|
Veri Sayfası |
Gen 7 V18 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6453lm (Typ) | 1.17A | 85°C | 34V | 162 lm/W | 2.34A | 70 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | Flat |
|
BXRC-30G2000-C-83LED COB VERO 13C WHT RND 3000K |
158 |
|
Veri Sayfası |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2419lm (Typ) | 500mA | 25°C | 33.4V | 145 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
|
BXRC-35E2000-C-83LED COB VERO 13C WM WH RND 3500K |
147 |
|
Veri Sayfası |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 3050lm (Typ) | 500mA | 25°C | 33.4V | 183 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
|
BXRC-27E2000-C-83LED COB VERO 13C WM WH RND 2700K |
125 |
|
Veri Sayfası |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2805lm (Typ) | 500mA | 25°C | 33.4V | 168 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
BXRC-50E2001-C-84-SELED COB VERO SE 13C WH RND 5000K |
200 |
|
Veri Sayfası |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3041lm (Typ) | 500mA | 25°C | 33.4V | 182 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
BXRC-30G2000-C-83-SELED COB VERO SE13C WH RND 3000K |
170 |
|
Veri Sayfası |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2371lm (Typ) | 500mA | 25°C | 33.4V | 142 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
BXRC-40E2000-C-83-SELED COB VERO SE 13C WH RND 4000K |
140 |
|
Veri Sayfası |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3006lm (Typ) | 500mA | 25°C | 33.4V | 180 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|

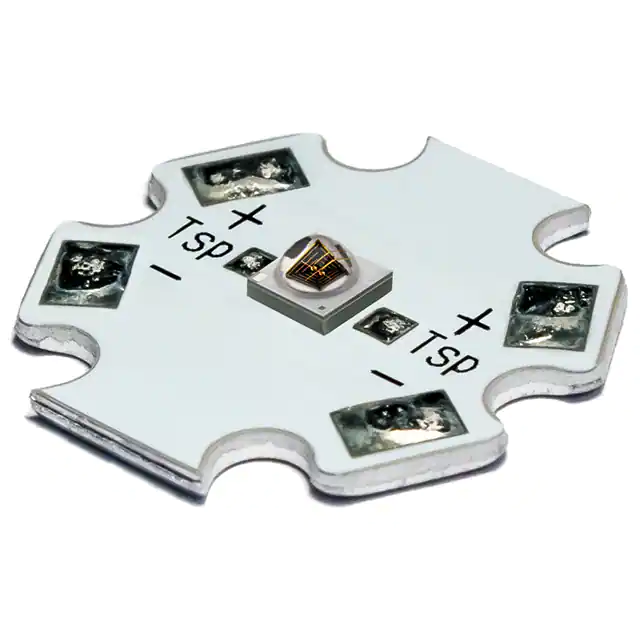

LST1-01G01-IR03-00LED MOD SST-10 STARBOARD |
290 |
|
Veri Sayfası |
SST-10 | Bulk | Active | LED Module | - | - | 940nm | Starboard | 225mW | 350mA | 25°C | 1.4V | - | 1.5A | - | 130° | - | - | - | - | Domed |
|
|
LST1-01G01-IR04-00LED MOD SST-10 STARBOARD |
119 |
|
Veri Sayfası |
SST-10 | Bulk | Active | LED Module | - | - | 940nm | Starboard | 225mW | 350mA | 25°C | 1.4V | - | 1.5A | - | 90° | - | - | - | - | Domed |
|
|
BXRC-30E2000-C-83LED COB VERO 13C WHT RND 3000K |
189 |
|
Veri Sayfası |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2980lm (Typ) | 500mA | 25°C | 33.4V | 178 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
