LED Beyaz Aydınlatma
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Renk | CCT (K) (Renk Sıcaklığı) | Flüks @ 85°C, Akım - Test | Flüks @ 25°C, Akım - Test | Akım - Test | Voltaj - İleri (Vf) (Tipik) | Lumen/Watt @ Akım - Test | CRI (Renk Yansıtma Endeksi) | Akım - Maksimum | Görüş Açısı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi | Boyut / Ölçü | Yükseklik - Oturmuş (Maksimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

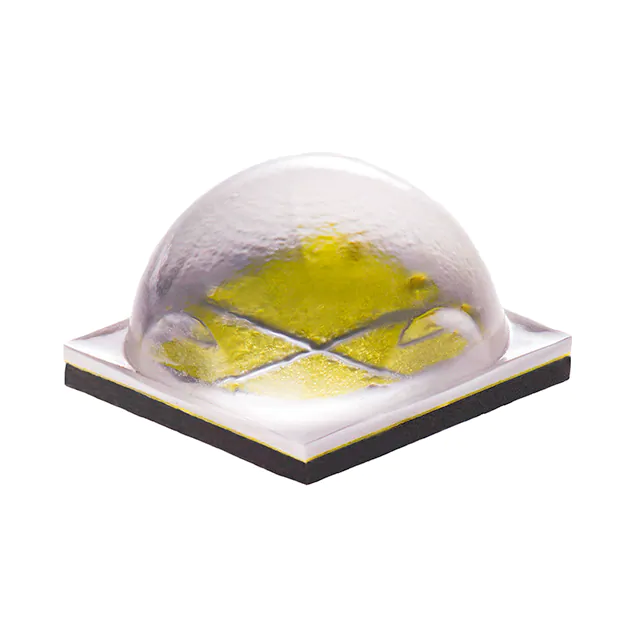

XHP70A-00-0000-0D0UK230GLED XLAMP WARM WHT 3000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3000K 3-Step MacAdam Ellipse | 1245lm (1200lm ~ 1290lm) | - | 2.1A, 1.05A | 6V, 12V | 99 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK230HLED XLAMP WARM WHT 3000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3000K 2-Step MacAdam Ellipse | 1245lm (1200lm ~ 1290lm) | - | 2.1A, 1.05A | 6V, 12V | 99 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK235GLED XLAMP WARM WHT 3500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3500K 3-Step MacAdam Ellipse | 1245lm (1200lm ~ 1290lm) | - | 2.1A, 1.05A | 6V, 12V | 99 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK235HLED XLAMP WARM WHT 3500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3500K 2-Step MacAdam Ellipse | 1245lm (1200lm ~ 1290lm) | - | 2.1A, 1.05A | 6V, 12V | 99 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK40E3LED XLAMP COOL WHITE 5000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK40E4LED XLAMP NEUTRAL WHT 4500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4500K | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK40E5LED XLAMP NEUTRAL WHT 4000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK435GLED XLAMP WARM WHT 3500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3500K 3-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK435HLED XLAMP WARM WHT 3500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3500K 2-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK440GLED XLAMP NEUTRAL WHT 4000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K 3-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK440HLED XLAMP NEUTRAL WHT 4000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K 2-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK445GLED XLAMP NEUTRAL WHT 4500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4500K 3-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UK450GLED XLAMP COOL WHITE 5000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K 3-Step MacAdam Ellipse | 1335lm (1290lm ~ 1380lm) | - | 2.1A, 1.05A | 6V, 12V | 106 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20CBLED XLAMP COOL WHITE 6500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6500K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20DTLED XLAMP COOL WHITE 7000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 7000K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20DVLED XLAMP COOL WHITE 6000K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6000K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20E1LED XLAMP COOL WHITE 6500K SMD |
0 |
|
- |
Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6500K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
-Series.JPG)
|
CLL130-0101B2-273M1C5LED WARM WHT 2700K SMD |
0 |
|
Veri Sayfası |
- | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 2700K 3-Step MacAdam Ellipse | - | 18lm (Typ) | 50mA | 3.02V | 119 lm/W | 80 | 85mA | - | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.033" (0.85mm) |
|
|
CLL130-0101B2-303M1C5LED WARM WHT 3000K SMD |
0 |
|
Veri Sayfası |
- | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | 3000K 3-Step MacAdam Ellipse | - | 18lm (Typ) | 50mA | 3.02V | 119 lm/W | 80 | 85mA | - | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.033" (0.85mm) |
|
|
CLL130-0101B2-403M1C5LED NEUTRAL WHT 4000K SMD |
0 |
|
Veri Sayfası |
- | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | 19lm (Typ) | 50mA | 3.02V | 126 lm/W | 80 | 85mA | - | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.033" (0.85mm) |
