Panel Göstergeleri, Pilot Lambalar
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Lamba Renk | Lens Renk | Lens Şeffaflığı | Dereceler | Voltaj | Akım | Panel Kesik Şekli | Panel Kesik Ölçüleri | Lens Boyutu | Lens Stili | Millikandela Derecesi | Dalga Boyu - Pik | Görüş Açısı | Sonlandırma Stili | Giriş Koruma | Özellikler |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3-KHDW12.0PNL MNT RED 20MA W/WIRE: 12" |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM5-PPGDW12.0PNL MNT W/ WIRE 555NM 10MCD GRN |
0 |
|
Veri Sayfası |
PM5 | Bag | Obsolete | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 10mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
PM3-KRDPNL MNT 645NM 40MCD 1.7V RED |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.7V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | - | - | - |
|
PM5-KADW12.0PNL MNT AMBER W/WIRE: 12" |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Amber | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 605nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|

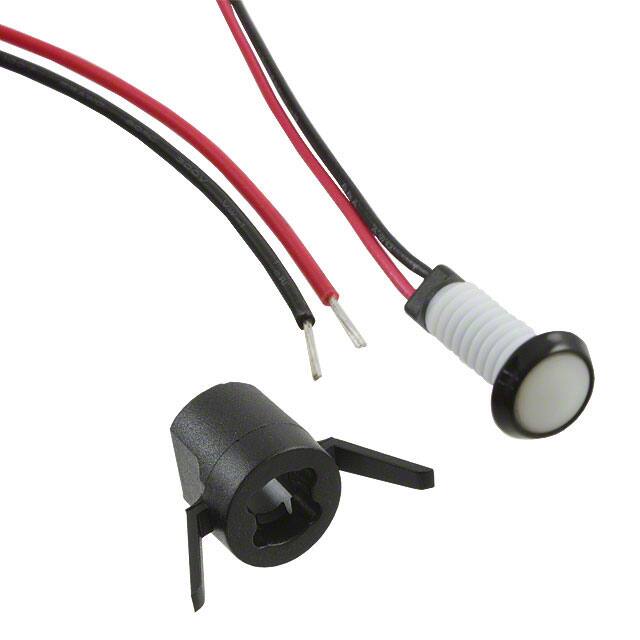

PM3-KADW12.0PNL MNT AMBER 20MA W/WIRE: 12" |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Amber | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 100mcd | 610nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM5-KGDPNL MNT 568NM 30MCD 2.1V GREEN |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | - | - | - |
|

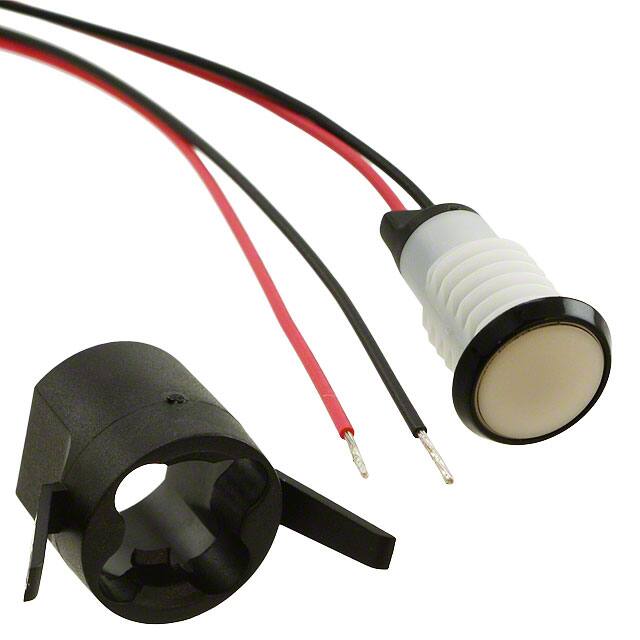

PM5-KGDW12.0LED PANEL INDICATOR GRN 2.1V |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM5-KHDPNL MNT 625NM 25MCD 2V RED |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 625nm | 120° | - | - | - |
|
PM3PGTPNL MNT W/ WIRE 555NM 10MCD GRN |
0 |
|
Veri Sayfası |
PM3 | Tray | Obsolete | LED | Green | Green | Clear | Vf (Typ), If (Max) | 2.2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 555nm | 30° | - | - | - |
|
PM3-KBWDPNL MNT 470NM 200MCD 4V BLUE |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Blue | White | Diffused | Vf (Typ), If (Max) | 4V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 200mcd | 470nm | 120° | - | - | - |
|
PM5-KHDW12.0LED PANEL INDICATOR RED 2V |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 25mcd | 625nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM3PGTW12.0PNL MNT GREEN 20MA W/WIRE 12" |
0 |
|
Veri Sayfası |
PM3 | Bag | Obsolete | LED | Green | Green | Clear | Vf (Typ), If (Max) | 2.2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 555nm | 30° | Wire Leads - 12" (304.80mm) | - | - |
|
PM5-KRDPNL MNT 645NM 40MCD 1.7V RED |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.7V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | - | - | - |
|
PM5-KRDW12.0LED PANEL INDICATOR RED 1.7V |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.7V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
PM5-KYDPNL MNT 590NM 300MCD 2V YLW |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Yellow | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 300mcd | 590nm | 120° | - | - | - |
|
|
PM5-KYDW12.0LED PANEL INDICATOR YLW 2V |
0 |
|
- |
PM5 | Bag | Obsolete | LED | Yellow | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 300mcd | 590nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
|
|
PM3-KHDPNL MNT 625NM 30MCD 2V RED |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Red | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | - | - | - |
|
PM5-PBWDW12.0PNL MNT W/ WIRE 430NM 200MCD BLU |
0 |
|
Veri Sayfası |
PM5 | Bag | Obsolete | LED | Blue | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39" (9.91mm) | 9.70mm Dia | Round with Flat Top | 200mcd | 430nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - |
|
|
PM3-KPGDPNL MNT 555NM 20MCD 2.2V GREEN |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | - | - | - |
|

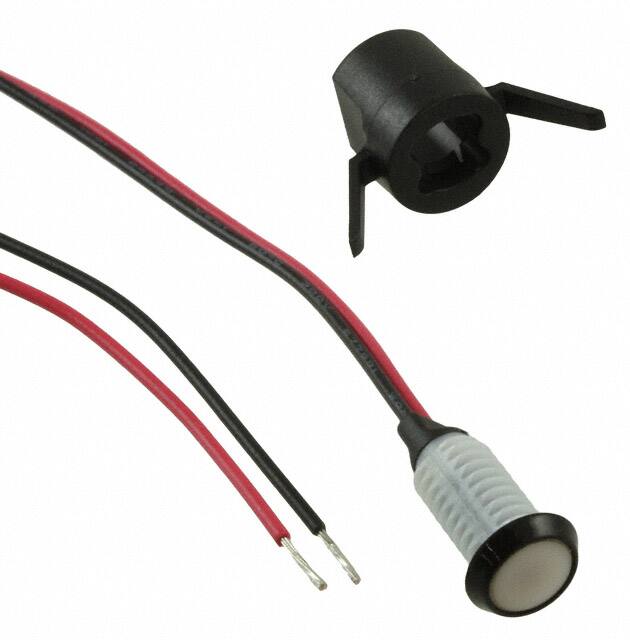

PM3-KPGDW12.0PNL MNT GREEN 20MA W/WIRE: 12" |
0 |
|
- |
PM3 | Bag | Obsolete | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.2V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | - | - |
