Panel Göstergeleri, Pilot Lambalar
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Tür | Lamba Renk | Lens Renk | Lens Şeffaflığı | Dereceler | Voltaj | Akım | Panel Kesik Şekli | Panel Kesik Ölçüleri | Lens Boyutu | Lens Stili | Millikandela Derecesi | Dalga Boyu - Pik | Görüş Açısı | Sonlandırma Stili | Giriş Koruma | Özellikler |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRLB-1-3061-9933-IPMI DIA .319" (8.1MM) WHITE 26V |
0 |
|
Veri Sayfası |
CRLB | Bag | Active | LED | White | White | - | DC | 28V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP67 | - |
|
|
CRLB-1-3061-9909-IPMI DIA .319" (8.1MM) WHITE 12V |
0 |
|
Veri Sayfası |
CRLB | Bag | Active | LED | White | White | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | 5mm, T-1 3/4 | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP67 | - |
|
|
CR-1-3061-9913-IPMI DIA .319" (8.10MM) WHITE 48V |
0 |
|
Veri Sayfası |
CR | Bag | Active | LED | White | White | - | DC | 48V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CR-1-3061-9911-IPMI DIA .319" (8.10MM) WHITE 24V |
0 |
|
Veri Sayfası |
CR | Bag | Active | LED | White | White | - | DC | 24V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CR-1-3061-9909-IPMI DIA .319" (8.10MM) WHITE 12V |
0 |
|
Veri Sayfası |
CR | Bag | Active | LED | White | White | - | DC | 12V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
CR-1-3061-9922-IPMI DIA .319" (8.10MM) WHITE 5V |
0 |
|
Veri Sayfası |
CR | Bag | Active | LED | White | White | - | DC | 5V | 20mA | Round | 0.32" (8.10mm) | - | Round with Domed Top | 27000mcd | - | 15° | Wire Leads - 6.000" (152.40mm) | IP66 | - |
|
|
6563122204F1/2" DOM R/G 5VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Red | - | - | DC | 5V Green, 5V Red | 8mA Green, 11mA Red | Round | 0.50" (12.70mm) | - | Round with Domed Top | 1340mcd Green, 490mcd Red | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561122204F1/2" FLT R/G 5VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Red | - | - | DC | 5V Green, 5V Red | 8mA Green, 11mA Red | Round | 0.50" (12.70mm) | - | Round with Flat Top | 910mcd Green, 330mcd Red | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561124204F1/2" FLT R/G 24VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Red | - | - | DC | 24V Green, 24V Red | 10mA Green, 11mA Red | Round | 0.50" (12.70mm) | - | Round with Flat Top | 910mcd Green, 330mcd Red | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561324204F1/2" FLT Y/G 24VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Yellow | - | - | DC | 24V Green, 24V Yellow | 10mA Green, 11mA Yellow | Round | 0.50" (12.70mm) | - | Round with Flat Top | 864mcd Green, 320mcd Yellow | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561322204F1/2" FLT Y/G 5VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Yellow | - | - | DC | 5V Green, 5V Yellow | 8mA Green, 11mA Yellow | Round | 0.50" (12.70mm) | - | Round with Flat Top | 864mcd Green, 320mcd Yellow | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561123204F1/2" FLT R/G 12VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Red | - | - | DC | 12V Green, 12V Red | 9mA Green, 10mA Red | Round | 0.50" (12.70mm) | - | Round with Flat Top | 910mcd Green, 330mcd Red | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
6561323204F1/2" FLT Y/G 12VDC W/TERM |
0 |
|
- |
656 | Bag | Active | LED | Green, Yellow | - | - | DC | 12V Green, 12V Yellow | 9mA Green, 10mA Yellow | Round | 0.50" (12.70mm) | - | Round with Flat Top | 864mcd Green, 320mcd Yellow | - | - | Quick Connect | IP66, IP67, NEMA 4X | - |
|
|
Q14F1BXXB02ELED INDICATOR 14MM |
0 |
|
Veri Sayfası |
Q14 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 100mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14F1CXXB02ELED INDICATOR 14MM |
0 |
|
Veri Sayfası |
Q14 | Bulk | Active | LED | Green, Red | Green, Red | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10.00mm Dia | Round with Flat Top | 100mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1BXXB02ELED INDICATOR 14MM |
0 |
|
Veri Sayfası |
Q14 | Bulk | Active | LED | Blue | Blue | Diffused | DC | 1.8V ~ 3.3V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 540mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q14P1CXXB02ELED INDICATOR 14MM |
0 |
|
Veri Sayfası |
Q14 | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 540mcd | - | 100° | Solder Lug | IP67 | - |
|

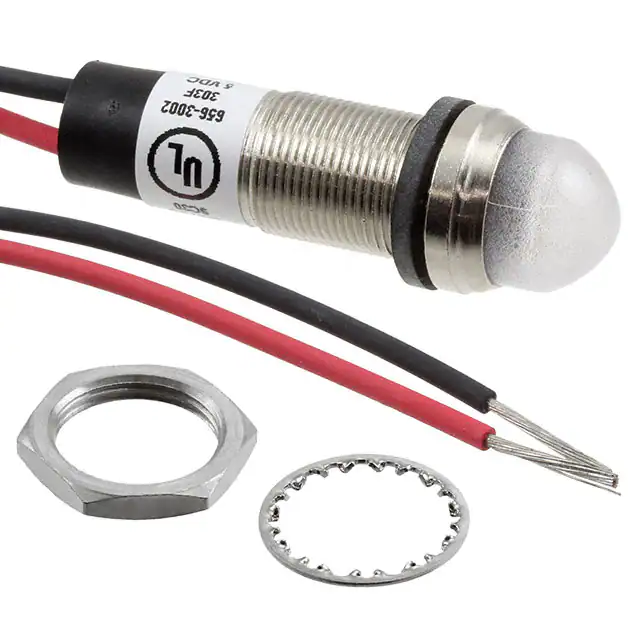

6563123303F1/2" DOM R/G 12VDC W/LEAD |
0 |
|
Veri Sayfası |
656 | Bag | Active | LED | Green, Red | - | Clear | DC | 12V | 9mA Green, 10mA Red | Round | 0.50" (12.70mm) | - | Round with Domed Top | 1340mcd Green, 490mcd Red | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
6563323303F1/2" DOM Y/G 12VDC W/LEAD |
0 |
|
Veri Sayfası |
656 | Bag | Active | LED | Green, Yellow | - | Clear | DC | 12V | 9mA Green, 10mA Yellow | Round | 0.50" (12.70mm) | - | Round with Domed Top | 430mcd Green, 480mcd Yellow | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|

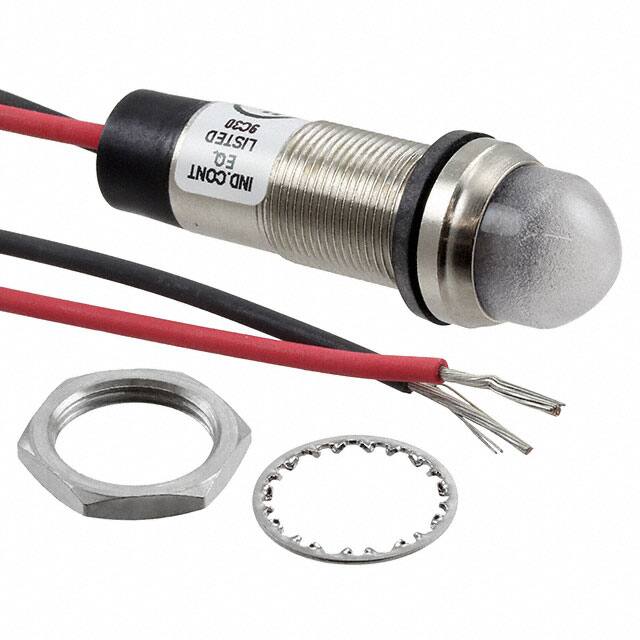

6563324303F1/2" DOM Y/G 24VDC W/LEAD |
0 |
|
Veri Sayfası |
656 | Bag | Active | LED | Green, Yellow | - | Clear | DC | 24V | 10mA Green, 11mA Yellow | Round | 0.50" (12.70mm) | - | Round with Domed Top | 430mcd Green, 480mcd Yellow | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
