AC-DC Dönüştürücüler, Çevrim Dışı Anahtarlar
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Çıkış Yalıtımı | Dahili Anahtar(lar) | Voltaj - Kırılma | Topoloji | Voltaj - Başlangıç | Voltaj - Besleme (Vcc/Vdd) | Görev Döngüsü | Frekans - Anahtarlama | Güç (Watt) | Arıza Koruma | Kontrol Özellikleri | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Tedarikçi Cihaz Paketi | Montaj Türü |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

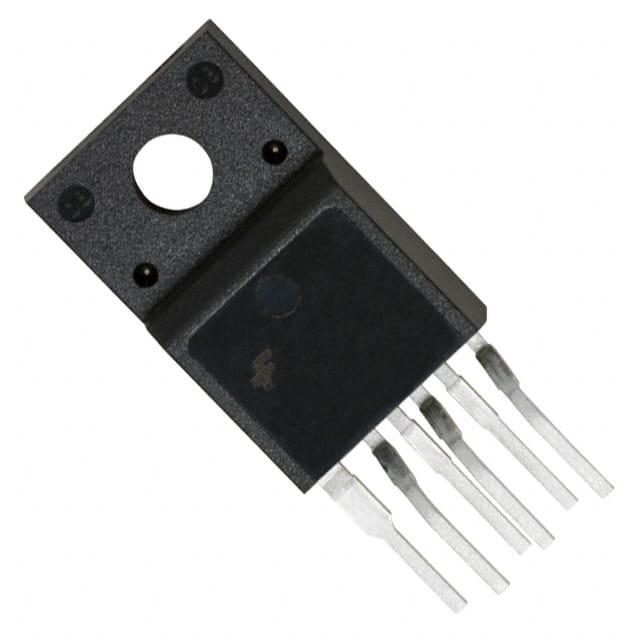

FSDM0565RELDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | 82% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (Forming) | Through Hole |
|
FSFM260NIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Veri Sayfası |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 21V | 77% | 67kHz | 35 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -25°C ~ 85°C (TA) | - | - | 8-DIP | Through Hole |
|
FSFR1600LIC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
- |
FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 160 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP (L forming) | Through Hole |
|
FSFR1700LIC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
- |
FSFR | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 14.5 V | 11.3V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Load, Over Temperature, Over Voltage | EN, Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP (L forming) | Through Hole |
|
FSFR1700USIC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
Veri Sayfası |
FSFR-US | 10-SSIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 12.5 V | 10V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP | Through Hole |
|
|
FSFR1700USLIC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
Veri Sayfası |
FSFR-US | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 12.5 V | 10V ~ 25V | 50% | Up to 300kHz | 200 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP (L forming) | Through Hole |
|
|
FSFR1800USLIC OFFLINE SW HALF-BRIDGE 9SIP |
0 |
|
Veri Sayfası |
FSFR-US | 10-SIP Module, 9 Leads, Formed Leads | Tube | Obsolete | Isolated | Yes | 500V | Half-Bridge | 12.5 V | 10V ~ 25V | 50% | Up to 300kHz | 260 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 130°C (TJ) | - | - | 9-SIP (L forming) | Through Hole |
|
FSGM0465RBWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
- |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (Forming) | Through Hole |
|

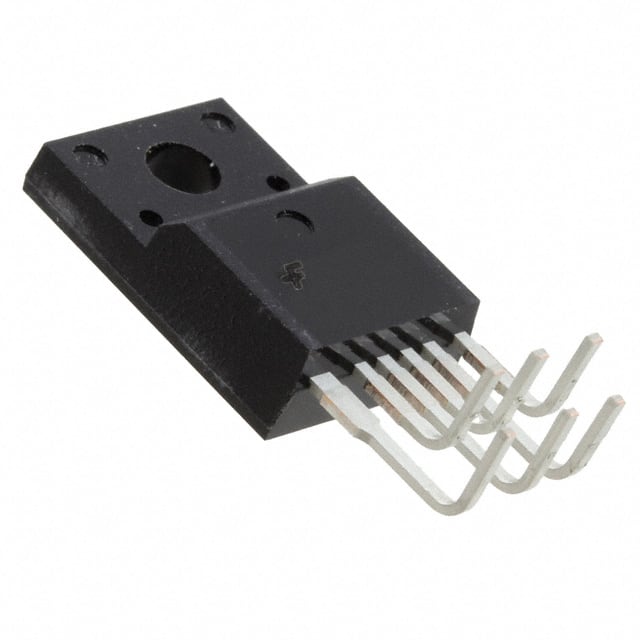

FSGM0465RLDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (L-Forming) | Through Hole |
|

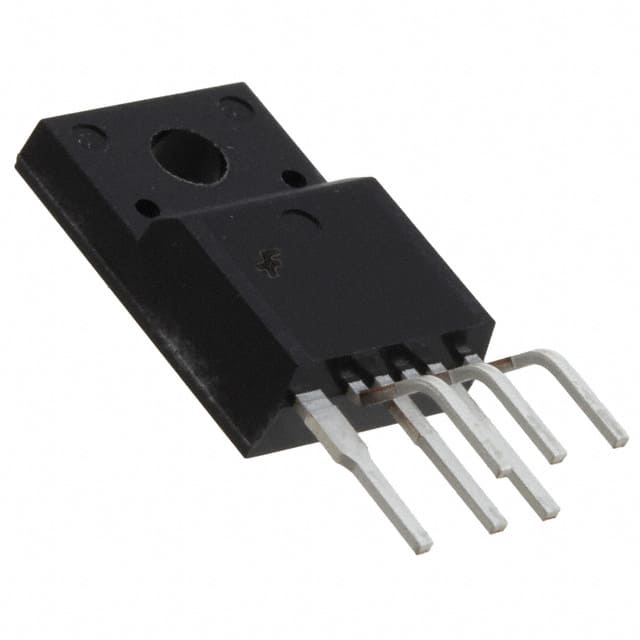

FSGM0465RUDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (U-Forming) | Through Hole |
|
|
FSGM0465RWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSGM0565RUDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 80 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (U-Forming) | Through Hole |
|
|
FSGM0565RWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 80 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSGM0765RLDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 90 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (L-Forming) | Through Hole |
|
|
FSGM0765RUDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 90 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (U-Forming) | Through Hole |
|
|
FSGM0765RWDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 7.5V ~ 26V | 70% | 66kHz | 90 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 125°C (TJ) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSL116LRIC OFFLINE SWITCH FLYBACK 8DIP |
0 |
|
Veri Sayfası |
FPS™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 26V | 77% | 50kHz | 16 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | - | -40°C ~ 105°C (TA) | - | - | 8-DIP | Through Hole |
|
FSL206MRLIC OFFLINE SWITCH FLYBACK 8LSOP |
0 |
|
Veri Sayfası |
FPS™ | 8-SMD, Gull Wing | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 8 V | 7V ~ 26V | 72% | 67kHz | 12 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | - | - | 8-LSOP | Surface Mount |
|
|

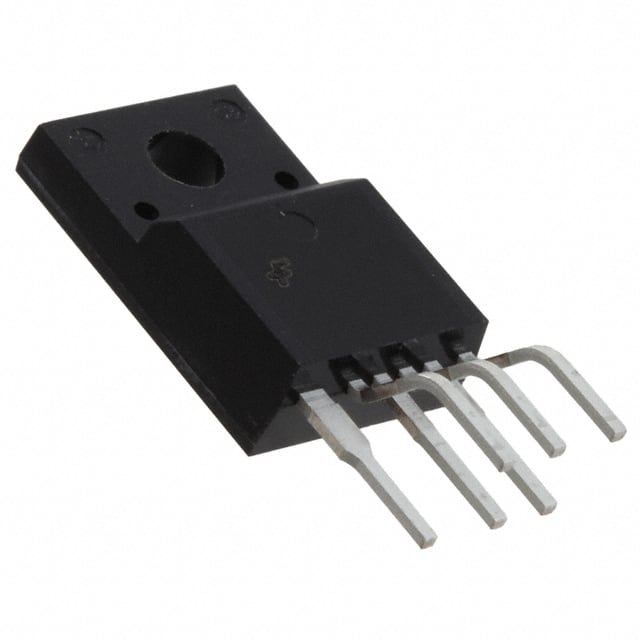

FSQ0465RBWDTUIC OFFLINE SWITCH FLYBACK TO220F |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | - | 48kHz ~ 67kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Sync | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (Forming) | Through Hole |
|
|
FSQ0465RSLDTUIC OFFLINE SW FLBACK TO220F-6L |
0 |
|
Veri Sayfası |
FPS™ | TO-220-6 Full Pack, Formed Leads | Tube | Obsolete | Isolated | Yes | 650V | Flyback | 12 V | 8V ~ 20V | - | 48kHz ~ 67kHz | 70 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Sync | -25°C ~ 85°C (TA) | - | - | TO-220F-6L (L-Forming) | Through Hole |
