Güç Dağıtım Anahtarları, Yük Sürücüleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Anahtar Türü | Çıkış Sayısı | Oran - Giriş:Çıkış | Çıkış Yapılandırması | Çıkış Türü | Arayüz | Voltaj - Yük | Voltaj - Besleme (Vcc/Vdd) | Akım - Çıkış (Maksimum) | Rds Açık (Tipik) | Giriş Türü | Özellikler | Arıza Koruma | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN450P-EIC PWR DRIVER 1:1 PWRSO20 |
0 |
|
- |
20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tube | Obsolete | Relay, Solenoid Driver | 3 | 1:1 | High Side | - | On/Off | 5.5V ~ 36V | Not Required | 10A, 2A | 40mOhm (Max), 300mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
VN920DB5TR-EIC PWR SSR HIGH SIDE SGL P2PAK |
0 |
|
Veri Sayfası |
P2PAK (4 Leads + Tab) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 18mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P2PAK |
|
VND810SP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 3.5A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|

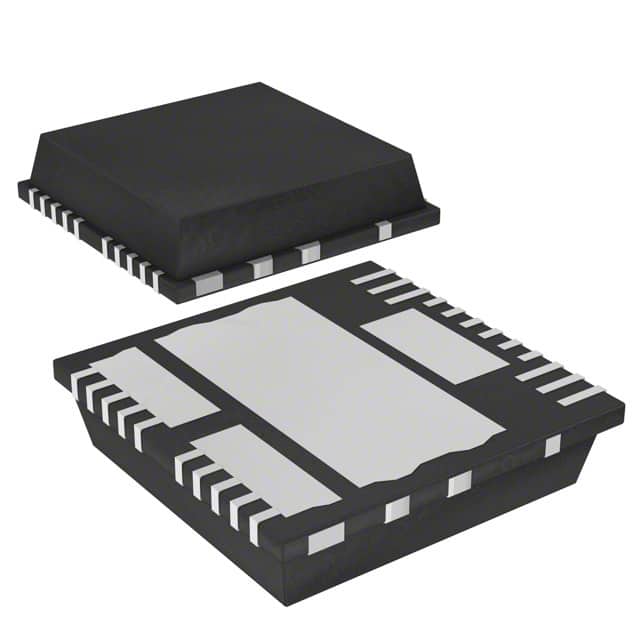

VND5004B-EIC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
Veri Sayfası |
24-PowerDFN | VIPower™ | Tray | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
VN450PTR-EIC PWR DRIVER 1:1 PWRSO20 |
0 |
|
- |
20-SOIC (0.433", 11.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 3 | 1:1 | High Side | - | On/Off | 5.5V ~ 36V | Not Required | 10A, 2A | 40mOhm (Max), 300mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
|
VNV35NV04-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VNV35NV04TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | OMNIFET II™, VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 30A | 10mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
VNQ05XSP16TR-EIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
0 |
|
Veri Sayfası |
16-PowerBSOP (0.370", 9.40mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 5A | 110mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
|
VND830MSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
VND5004BSP30-EIC PWR SWITCH N-CH MULTIPWRSO-30 |
0 |
|
Veri Sayfası |
30-PowerSOP (0.630", 16.00mm Width) | VIPower™ | Tube | Discontinued | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 70A | 4mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | MultiPowerSO-30 |
|
|
VN920DB5-EIC PWR SSR HIGH SIDE SGL P2PAK |
0 |
|
Veri Sayfası |
P2PAK (4 Leads + Tab) | VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 18mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | P2PAK |
|
|
VND830ASPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN06SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 26V | Not Required | 9A | 180mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VND810SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 3.5A | 160mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN920DSPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 30A | 16mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN02HSPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 6A | 400mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VND830ASP-EIC PWR SSR HI SIDE N-CH PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN02HSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 6A | 400mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VND830LSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 18A | 60mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN02NSP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Veri Sayfası |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 7V ~ 26V | Not Required | 6A | 400mOhm (Max) | Non-Inverting | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
