Güç Dağıtım Anahtarları, Yük Sürücüleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Paket/Kutular | Seri | Paketlenme | Ürün Durumu | Anahtar Türü | Çıkış Sayısı | Oran - Giriş:Çıkış | Çıkış Yapılandırması | Çıkış Türü | Arayüz | Voltaj - Yük | Voltaj - Besleme (Vcc/Vdd) | Akım - Çıkış (Maksimum) | Rds Açık (Tipik) | Giriş Türü | Özellikler | Arıza Koruma | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC35XS3400DHFKIC PWR SWITCH N-CHAN 1:4 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:4 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 35mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|

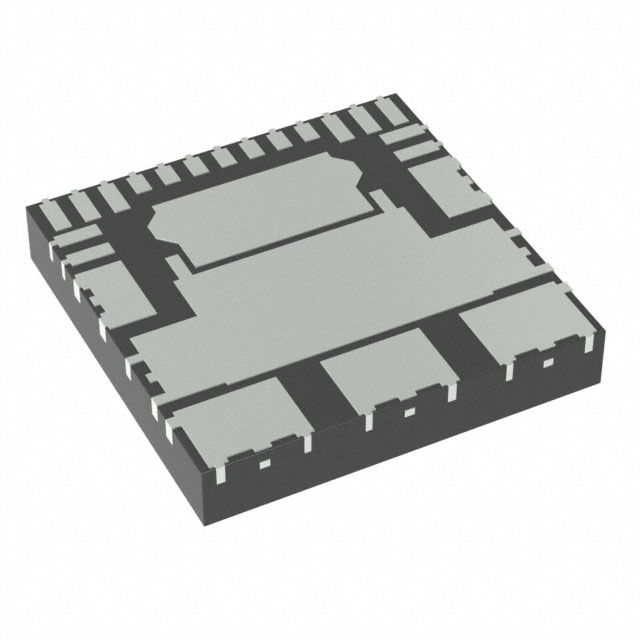

MC35XS3500HFKIC PWR SWITCH N-CHAN 1:6 24PQFN |
0 |
|
Veri Sayfası |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|

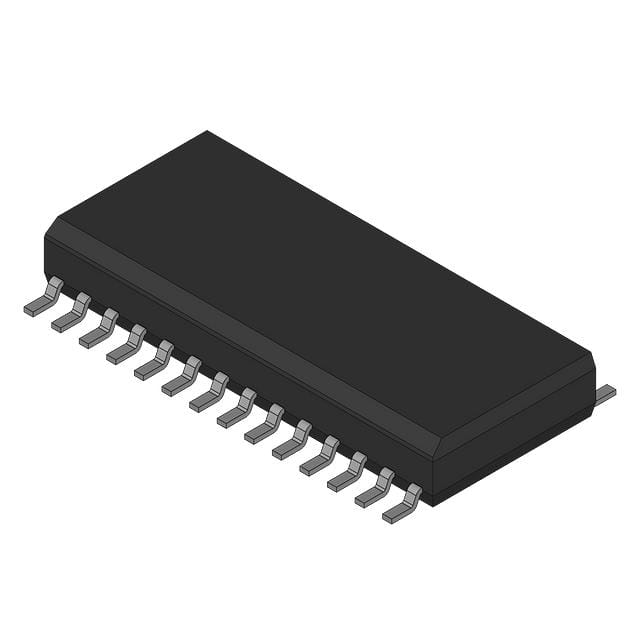

MC33880PEGIC PWR SWITCH N-CHAN 1:8 28SOIC |
0 |
|
- |
28-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 24.5V | 4.75V ~ 5.25V | 800mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
MC33880PEWIC PWR SWITCH N-CHAN 1:8 32SOIC |
0 |
|
- |
32-BSSOP (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 24.5V | 4.75V ~ 5.25V | 800mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
AUIPS7091STRLIC PWR SWITCH N-CHAN 1:1 D2PAK-5 |
0 |
|
Veri Sayfası |
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
AUIPS7091GIC PWR SWITCH N-CHAN 1:1 DSO-8 |
0 |
|
Veri Sayfası |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-906 |
|
AUIPS7091SIC PWR SWITCH N-CHAN 1:1 D2PAK-5 |
0 |
|
Veri Sayfası |
TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 1.5A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
|
AUIPS71451GTRIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Veri Sayfası |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 60V | Not Required | 1.5A | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-906 |
|
|
AUIPS71451GIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Veri Sayfası |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 60V | Not Required | 1.5A | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-906 |
|
AUIPS7091IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Veri Sayfası |
TO-220-5 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220-5 |
|

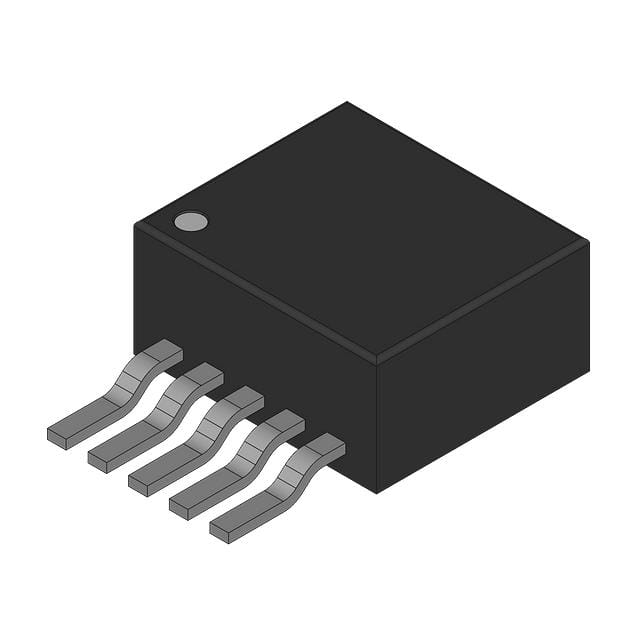

AUIR3320STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Veri Sayfası |
TO-263-5, D2PAK (4 Leads + Tab), Variant | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 45A | 3.3mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
|
AUIR3320SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Veri Sayfası |
TO-263-5, D2PAK (4 Leads + Tab), Variant | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 45A | 3.3mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
AUIPS6044GIC PWR SWITCH N-CHAN 1:1 28SOIC |
0 |
|
Veri Sayfası |
28-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 4A | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
AUIPS7081RIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Veri Sayfası |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 55mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5 |
|
|
AUIPS7081IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Veri Sayfası |
TO-220-5 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2A | 55mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220-5 |
|
|
AUIPS7081SIC PWR SWITCH N-CHAN 1:1 D2PAK-5 |
0 |
|
Veri Sayfası |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 35V | Not Required | 2.3A | 55mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5 |
|
|
AUIPS6044GTRIC PWR SWITCH N-CHAN 1:1 28SOIC |
0 |
|
Veri Sayfası |
28-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 28V | Not Required | 4A | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
AAT4616IGV-1-T1IC PWR SWITCH P-CHAN 1:1 SOT23-5 |
0 |
|
Veri Sayfası |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 2A | 130mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
FDZ2040LIC PWR SWITCH P-CHAN 1:1 4WLCSP |
0 |
|
Veri Sayfası |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.6V ~ 4V | Not Required | 1.2A | 47mOhm | Non-Inverting | Load Discharge | - | -25°C ~ 75°C (TA) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
AAT4290IJS-1-T1IC PWR SWTCH P-CHAN 1:5 SC70JW-8 |
0 |
|
Veri Sayfası |
8-TFSOJ (0.069", 1.75mm Width) | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 5 | 1:5 | High Side | P-Channel | S²Cwire™ | 1.8V ~ 5.5V | Not Required | 250mA | 1.1Ohm | Non-Inverting | Slew Rate Controlled | UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
