Voltaj Regülatörleri - Doğrusal, Düşük Düşüşlü (LDO) Regülatörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Çıkış Yapılandırması | Çıkış Türü | Regülatör Sayısı | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış (Minimum/Sabit) | Voltaj - Çıkış (Maksimum) | Voltaj Düşüşü (Maksimum) | Akım - Çıkış | Akım - Dinlenme (Iq) | Akım - Besleme (Maksimum) | PSRR (Besleme Voltajı Reddi Oranı) | Kontrol Özellikleri | Koruma Özellikleri | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD1117D33CTRIC REG LINEAR 3.3V 800MA 8SO |
15,624 |
|
Veri Sayfası |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS7A0228PDQNRIC REG LINEAR 2.8V 200MA 4X2SON |
14,365 |
|
Veri Sayfası |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.36V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
MC79L15ACPRPGIC REG LINEAR -15V 100MA TO92-3 |
11,290 |
|
Veri Sayfası |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.7V @ 40mA (Typ) | 100mA | - | - | 39dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
MC78L05ACPRAGIC REG LINEAR 5V 100MA TO92-3 |
10,389 |
|
Veri Sayfası |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 6 mA | - | 49dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
ST715C33RIC REG LINEAR 3.3V 85MA SOT323-5 |
8,389 |
|
Veri Sayfası |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.3V | - | 1V @ 85mA | 85mA | 5.5 µA | 6.5 µA | 57dB ~ 38dB (100kHz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-323-5 |
|
L78M12CVIC REG LINEAR 12V 500MA TO220AB |
5,833 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | 6 mA | - | 55dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

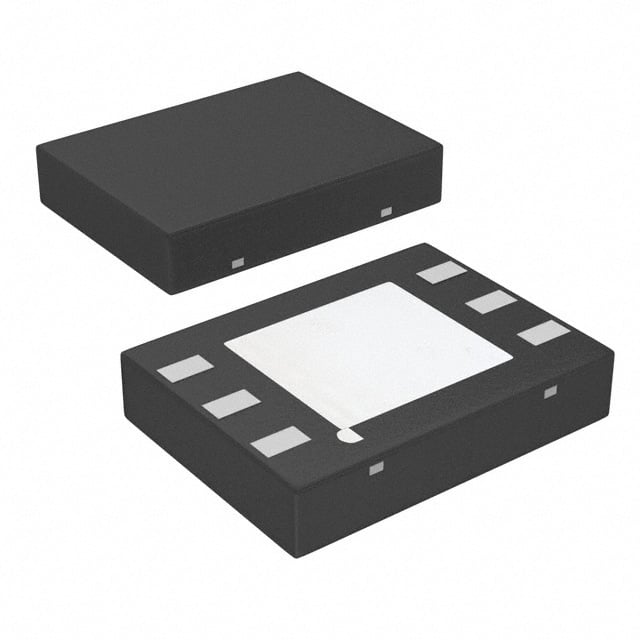

LP3981ILD-3.3/NOPBIC REG LINEAR 3.3V 300MA 6WSON |
5,831 |
|
Veri Sayfası |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 300mA | 300mA | 120 µA | 210 µA | 50dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x4) |
|
|
TPS7A0233DQNR200-MA, NANOPOWER-IQ (25 NA), LO |
5,147 |
|
Veri Sayfası |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.31V @ 200mA | 200mA | 60 nA | - | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
LD1117V33CIC REG LINEAR 3.3V 800MA TO220AB |
4,933 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TCR3UG18A,LFIC REG LINEAR 1.8V 300MA 4WCSP-F |
4,526 |
|
Veri Sayfası |
TCR3UG | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.457V @ 300mA | 300mA | 680 nA | - | 70dB (1kHz) | Enable | Inrush Current, Over Current, Thermal Shutdown | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-WCSP-F (0.65x0.65) |
|
L7915CV-DGIC REG LINEAR -15V 1.5A TO220 |
4,468 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.1V @ 1A (Typ) | 1.5A | 3 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
LK112M60TRIC REG LINEAR 6V 150MA SOT23-5 |
4,413 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 14V | 6V | - | 0.35V @ 150mA | 150mA | 250 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TLV1117-50IDCYRIC REG LINEAR 5V 800MA SOT223-4 |
4,351 |
|
Veri Sayfası |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.3V @ 800mA | 800mA | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
LD1117V33IC REG LINEAR 3.3V 800MA TO220AB |
3,157 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
TLV1117-33IDCYRG3IC REG LIN 3.3V 800MA SOT223-4 |
2,364 |
|
Veri Sayfası |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.3V @ 800mA | 800mA | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
L7915CVIC REG LINEAR -15V 1.5A TO220AB |
2,323 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -15V | - | 1.1V @ 1A (Typ) | 1.5A | 3 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|

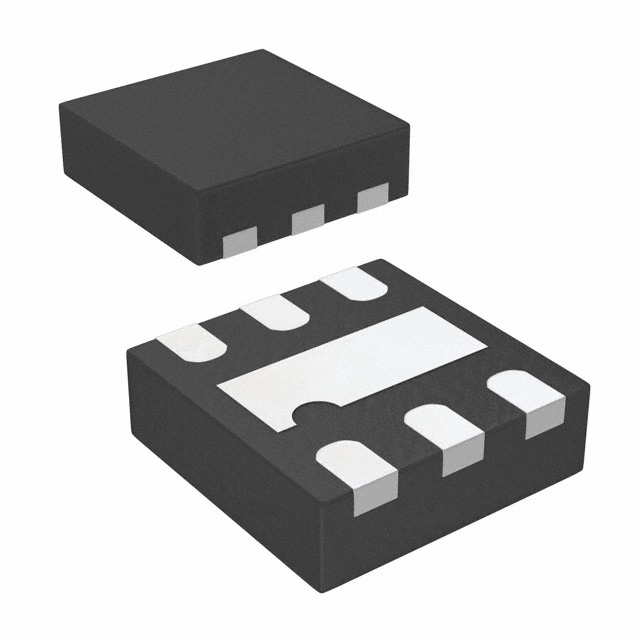

NCP176AMX330TCGIC REG LINEAR 3.3V 500MA 6XDFN |
376,201 |
|
Veri Sayfası |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.165V @ 500ma | 500mA | 90 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
TPS79918YZURIC REG LINEAR 1.8V 200MA 5DSBGA |
10,287 |
|
Veri Sayfası |
- | 5-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.18V @ 200mA | 200mA | 60 µA | - | 70dB ~ 38dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA |
|
TPS7A0318DBVRIC REG LINEAR 1.8V 200MA SOT23-5 |
51,017 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.45V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
LP2980AIM5-2.5/NOPBIC REG LINEAR 2.5V 50MA SOT23-5 |
19,981 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 2.5V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
