Voltaj Regülatörleri - Doğrusal, Düşük Düşüşlü (LDO) Regülatörleri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Çıkış Yapılandırması | Çıkış Türü | Regülatör Sayısı | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış (Minimum/Sabit) | Voltaj - Çıkış (Maksimum) | Voltaj Düşüşü (Maksimum) | Akım - Çıkış | Akım - Dinlenme (Iq) | Akım - Besleme (Maksimum) | PSRR (Besleme Voltajı Reddi Oranı) | Kontrol Özellikleri | Koruma Özellikleri | Çalışma Sıcaklığı | Sınıf | Kalite Belirtimi | Montaj Türü | Tedarikçi Cihaz Paketi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

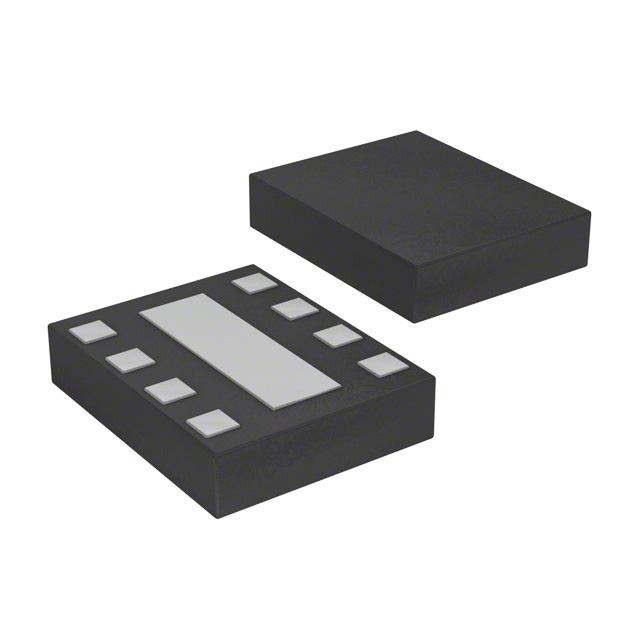

NCP186AMX300TAGIC REG LINEAR 3V 1A 8XDFN |
16,706 |
|
Veri Sayfası |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.16V @ 1A | 1A | 140 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 8-XDFN (1.6x1.2) |
|
TPS7A0333DBVRIC REG LINEAR 3.3V 200MA SOT23-5 |
15,705 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.31V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
MCP1703T-3302E/MCIC REG LINEAR 3.3V 250MA 8DFN |
15,531 |
|
Veri Sayfası |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-DFN (2x3) |
|
TPS73018DBVTIC REG LINEAR 1.8V 200MA SOT23-5 |
14,520 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.21V @ 200mA | 200mA | 250 µA | - | 68dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A0312PDBVRIC REG LINEAR 1.2V 200MA SOT23-5 |
13,345 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.7V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
NCP186BMX180TAGIC REG LINEAR 1.8V 1A 8XDFN |
13,209 |
|
Veri Sayfası |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.285V @ 1A | 1A | 140 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 8-XDFN (1.6x1.2) |
|
TAR5S50TE85LFIC REG LINEAR 5V 200MA SMV |
11,457 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 0.2V @ 50mA | 200mA | - | 850 µA | 70dB (1kHz) | ON/OFF | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
LM2931CMX/NOPBIC REG LIN POS ADJ 100MA 8SOIC |
10,811 |
|
Veri Sayfası |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26V | 3V | 24V | 0.3V @ 100mA | 100mA | 1 mA | 15 mA | 55dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
NCP167AFCT330T2GIC REG LINEAR 3.3V 700MA 4WLCSP |
8,148 |
|
Veri Sayfası |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.29V @ 700mA | 700mA | 18 µA | - | 83dB ~ 63dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
NCP1117LPST50T3GIC REG LINEAR 5V 1A SOT223 |
8,009 |
|
Veri Sayfası |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 5V | - | 1.4V @ 1A | 1A | 700 µA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
LDL1117S18RIC REG LINEAR 1.8V 1.2A SOT223 |
6,886 |
|
Veri Sayfası |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 1.8V | - | 0.6V @ 1.2A | 1.2A | 500 µA | - | 87dB ~ 65dB (120Hz ~ 100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
LD2981ABM50TRIC REG LINEAR 5V 100MA SOT23-5 |
6,493 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.375V @ 100mA | 100mA | 150 µA | 2.6 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPS73001DBVTIC REG LIN POS ADJ 200MA SOT23-6 |
4,777 |
|
Veri Sayfası |
- | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.22V | 5.5V | 0.21V @ 200mA | 200mA | 250 µA | - | 68dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
|
NCP186AMX280TAGIC REG LINEAR 2.8V 1A 8XDFN |
4,194 |
|
Veri Sayfası |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.17V @ 1A | 1A | 140 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C | - | - | Surface Mount | 8-XDFN (1.6x1.2) |
|
|
TPS7A0330PDBVRIC REG LINEAR 3V 200MA SOT23-5 |
2,501 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.36V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
NCP170BXV250T2GIC REG LIN 2.5V 150MA SOT563-6 |
2,366 |
|
Veri Sayfası |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.33V @ 150mA | 150mA | 900 nA | - | 57dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-563 |
|
L7815ACVIC REG LINEAR 15V 1.5A TO220AB |
1,804 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1.5A | 6 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
LM317LZRAGIC REG LINEAR POS ADJ 100MA TO92 |
1,667 |
|
Veri Sayfası |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
L7905CV-DGIC REG LINEAR -5V 1.5A TO220 |
1,331 |
|
Veri Sayfası |
- | TO-220-3 | Tube | Active | Negative | Fixed | 1 | -35V | -5V | - | 1.4V @ 1A (Typ) | 1.5A | 3 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220 |
|
|
TPS7A0325PDBVRIC REG LINEAR 2.5V 200MA SOT23-5 |
1,142 |
|
Veri Sayfası |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.36V @ 200mA | 200mA | 300 nA | - | 55dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
