Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTN1AS-TMP-F-DC5VRELAY GEN PURPOSE SPST 30A 5V |
0 |
|
Veri Sayfası |
JT-N | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 160 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
G4B-112T-US-AC120RELAY GEN PURPOSE SPST 15A 120V |
0 |
|
Veri Sayfası |
G4B | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 10.8 mA | Non Latching | - | Quick Connect - 0.110"/0.250" | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
2956026RELAY GEN PURPOSE SPDT 120V |
0 |
|
Veri Sayfası |
EMG17-REL | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 95W | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 6 ms | 11 ms | - | Silver Nickel (AgNi) | cULus, EAC, UL | General Purpose | - | - |
|
2960630RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Veri Sayfası |
- | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 20.9 mA | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
2960698RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
Veri Sayfası |
- | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 21 mA | Non Latching | - | PC Pin | - | - | - | - | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
G8P-1A4TP DC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
G8P-1C4TP DC12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
|
G8P-1C4TP DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
G8P-1A2T-F DC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
|
G8P-1A2T-F DC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
G8P-1C2T-F DC12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 77 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
|
G8P-1C2T-F DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Veri Sayfası |
G8P | Bulk | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 36 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
T75S5D112-05RELAY GEN PURPOSE SPDT 14A 5V |
0 |
|
Veri Sayfası |
T75 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 14 A | 400VAC - Max | 5600VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.6 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
T75S5D112-12RELAY GEN PURPOSE SPDT 14A 12V |
0 |
|
Veri Sayfası |
T75 | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 14 A | 400VAC - Max | 5600VA | 18.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.5 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
T75S5D112-24RELAY GEN PURPOSE SPDT 14A 24V |
0 |
|
Veri Sayfası |
T75 | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 14 A | 400VAC - Max | 5600VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 17.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
KUIP-11AT5-120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Veri Sayfası |
KUIP | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 20 ms | 15 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
S87R11A2B1D1120RELAY GEN PURPOSE DPDT 20A 120V |
0 |
|
Veri Sayfası |
S87R | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 277VAC - Max | 5540VA | 33 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 102 VAC | - | - | - | -10°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

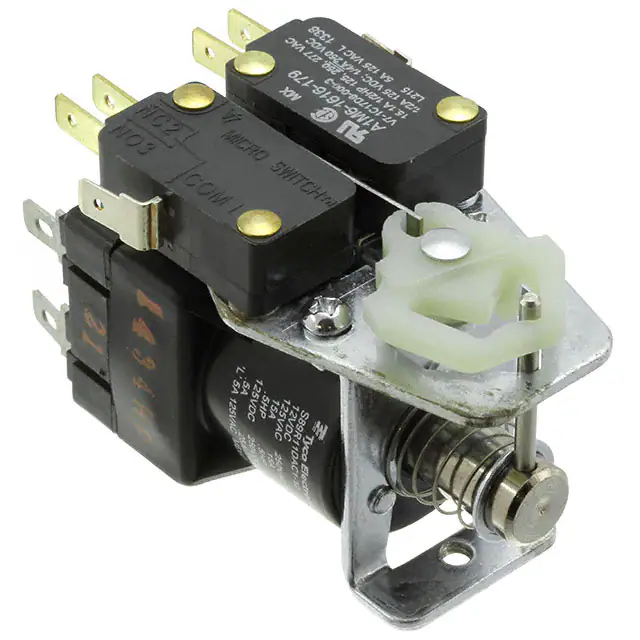

S89R11DAC1-12RELAY IMPULSE DPDT 15A 12V |
0 |
|
Veri Sayfası |
S89R | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 533 mA | Latching, Single Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
S89R11APP1-120RELAY IMPULSE DPDT 15A 120V |
0 |
|
Veri Sayfası |
S89R | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 75 mA | Latching, Single Coil | - | Plug In, 8 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
G2R-1-ASI-DC12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
