Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT114006RELAY GEN PURPOSE SPDT 12A 6V |
5,908 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J115F11A110VACS6RELAY GEN PURPOSE SPST 40A 110V |
275 |
|
Veri Sayfası |
J115F1 | Tube | Active | Through Hole | 110VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 46.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VAC | 33 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
2-1415356-1RELAY GEN PURPOSE SPST 6A 12V |
1,034 |
|
Veri Sayfası |
PBH, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 30 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
3-1415356-1RELAY GEN PURPOSE SPST 6A 9V |
874 |
|
Veri Sayfası |
PB, SCHRACK | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RYA31012RELAY GEN PURPOSE SPST 8A 12V |
182 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RT314048RELAY GEN PURPOSE SPDT 16A 48V |
1,427 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
J115F11A24VACS6RELAY GEN PURPOSE SPST 40A 24V |
789 |
|
Veri Sayfası |
J115F1 | Tube | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 200 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 7.2 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21A220VACSRELAY GEN PURPOSE SPST 40A 220V |
296 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 220VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 16.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 165 VAC | 66 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F21C110VACSRELAY GEN PURPOSE SPDT 40A 110V |
282 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 110VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 46.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VAC | 33 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21CL110VACSRELAY GEN PURPOSE SPDT 40A 110V |
273 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 110VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 46.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VAC | 33 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

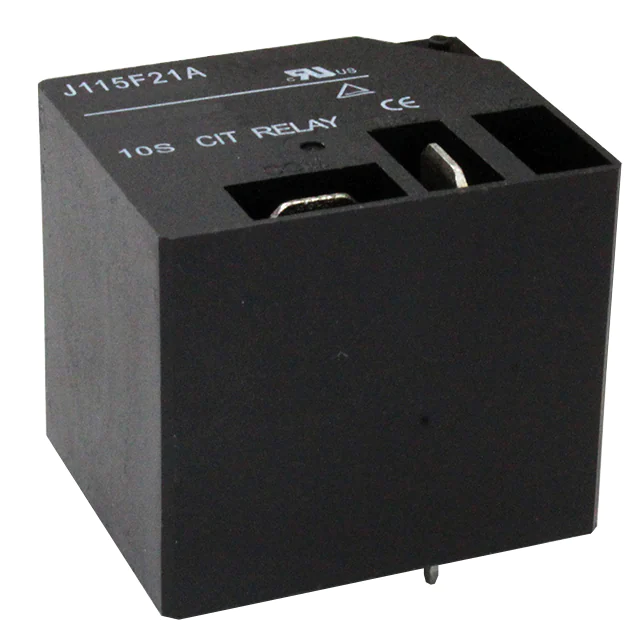

J115F21AH12VDCS61.5RELAY GEN PURPOSE SPST 50A 12V |
799 |
|
Veri Sayfası |
J115F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J1511CP120VAC1.2RELAY GEN PURPOSE SPDT 20A 120V |
207 |
|
Veri Sayfası |
J151 | Tray | Active | Through Hole | 120VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G5RLU-1-E DC6RELAY GEN PURPOSE SPDT 16A 6V |
144 |
|
Veri Sayfası |
G5RL-U | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 100 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
J115F21CH5VDCS61.5URELAY GEN PURPOSE SPDT 50A 5V |
195 |
|
Veri Sayfası |
J115F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
1393243-7RELAY GEN PURPOSE DPDT 8A 20V |
1,045 |
|
Veri Sayfası |
RT2, SCHRACK | Bulk | Active | Through Hole | 20VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | Class F | 14 VDC | 0.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
7-1415356-1RELAY GEN PURPOSE SPDT 6A 9V |
787 |
|
Veri Sayfası |
PBH, SCHRACK | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
J115F11C110VACS6RELAY GEN PURPOSE SPDT 40A 110V |
257 |
|
Veri Sayfası |
J115F1 | Tube | Active | Through Hole | 110VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 46.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VAC | 33 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F21CL220VACSRELAY GEN PURPOSE SPDT 40A 220V |
288 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 220VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 16.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 165 VAC | 66 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

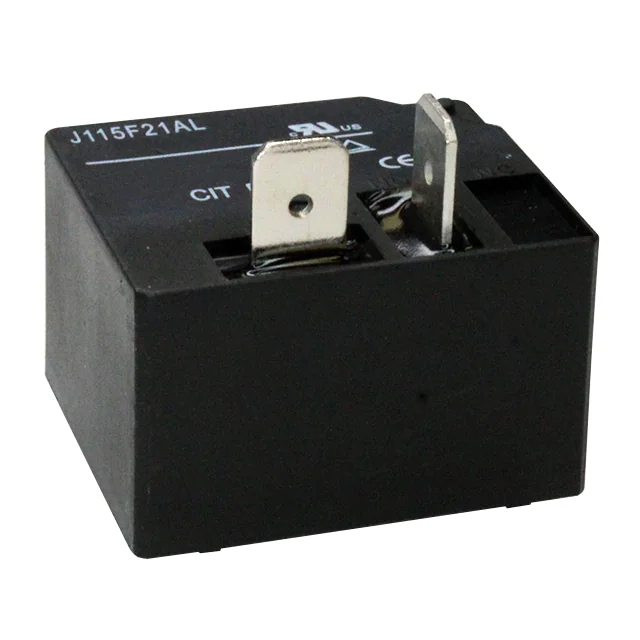

J115F21AL240VACSRELAY GEN PURPOSE SPST 40A 240V |
300 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 240VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 15.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALFG2PF09RELAY GEN PURPOSE SPST 31A 9V |
1,008 |
|
Veri Sayfası |
ALFG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 31 A | 250VAC - Max | 7750VA | 155 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
