Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7NS1D1-24BRIDGE 1-PH KBPC8-PB10 600V 150C |
0 |
|
Veri Sayfası |
T7N | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
G2RV-SL700 AC110RELAY GEN PURPOSE SPDT 6A 110V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 110VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-SL700 AC230RELAY GEN PURPOSE SPDT 6A 230V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 7.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-SL700 AC/DC48RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 5.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-SL700 AC/DC24RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
G2RV-SL700 DC12 (DC11)RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 27.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|

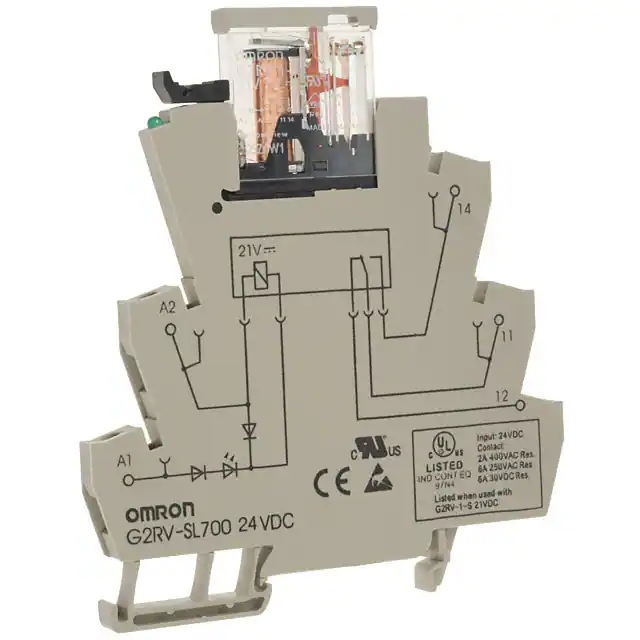

G2RV-SL700 DC24 (DC21)RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Veri Sayfası |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | CE, cULus, TUV | General Purpose | - | - |
|
KBP-17DG-24RELAY GEN PURPOSE 4PDT 10A 24V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 104 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

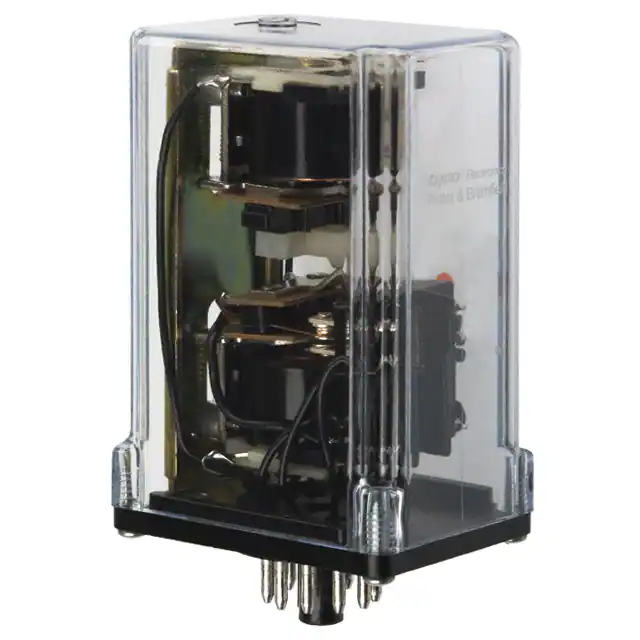

KBP-20DG-110RELAY GEN PURPOSE 5PDT 10A 110V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 110VDC | 5PDT (5 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KBP-20AG-120RELAY GEN PURPOSE 5PDT 10A 120V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 120VAC | 5PDT (5 Form C) | 10 A | 120VAC - Nom | - | 68 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KBP-17AG-120RELAY GEN PURPOSE 4PDT 10A 120V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 44 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KBP-17DG-110RELAY GEN PURPOSE 4PDT 10A 110V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 20 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
CSL-38-30010RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Veri Sayfası |
CS | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|
|
KBP-11DG-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 104 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
KBP-11DG-110RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
Veri Sayfası |
KBP | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 120VAC - Nom | - | 24 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
|
CSL-38-40010RELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
Veri Sayfası |
CS | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|
CSJ-38-71010RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
Veri Sayfası |
CS | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 105 VAC | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|
|
V23057A 13A401RELAY GEN PURPOSE SPDT 8A 48V |
0 |
|
Veri Sayfası |
V23057, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 32 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
V23061B1010A401RELAY GEN PURPOSE SPDT 8A 60V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
V23061B1005A401RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
