Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

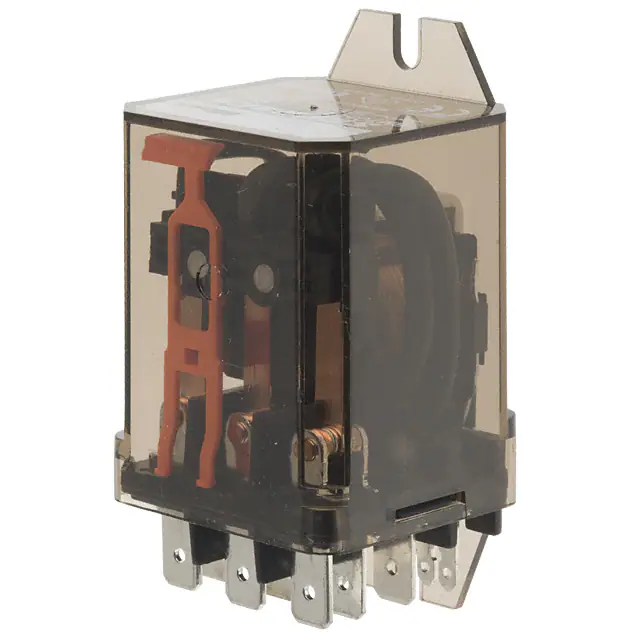

RM808024RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
Veri Sayfası |
RM, SCHRACK | Tray | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 25 A | 400VAC - Max | 10000VA | 50 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

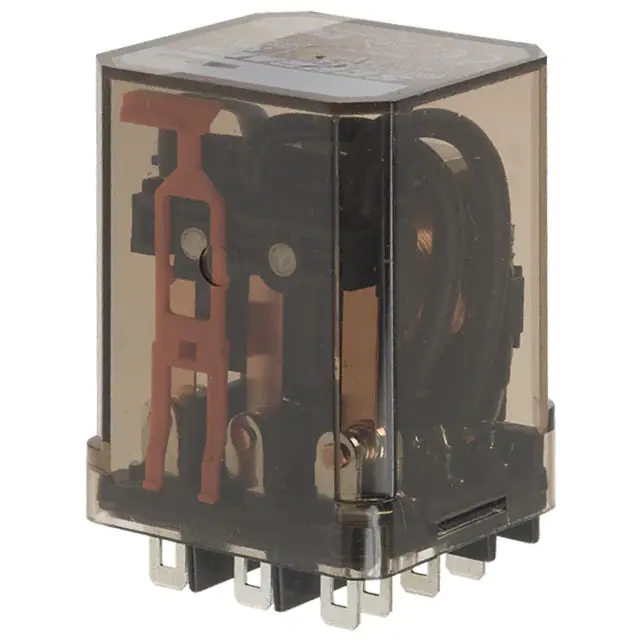

RM602110RELAY GEN PURPOSE 3PST 10A 110V |
0 |
|
Veri Sayfası |
RM, SCHRACK | Tray | Active | Socketable | 110VDC | 3PST-NO (3 Form A) | 10 A | 400VAC - Max | 4000VA | 15.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | 11 VDC | 15 ms | 5 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
3-1415410-0RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Veri Sayfası |
41063, SCHRACK | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 15 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 14.6 VDC | 1.8 VDC | - | - | -20°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
3-1415410-4RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
Veri Sayfası |
41063, SCHRACK | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 30 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 7.3 VDC | 0.9 VDC | - | - | -20°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
3-1415410-9RELAY GEN PURPOSE SPST 16A 6V |
0 |
|
Veri Sayfası |
41063, SCHRACK | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 60 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 3.6 VDC | 0.45 VDC | - | - | -20°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
1-1416200-7RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 3200VA | 18.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
OSA-SH-212DM3,000RELAY GEN PURPOSE DPST 3A 12V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
OSA-SH-212DM5,000RELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
OSA-SS-206DM5,000RELAY GEN PURPOSE DPST 5A 6V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 90 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.3 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
OSA-SS-212DM3,000RELAY GEN PURPOSE DPST 3A 12V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
OSA-SS-212DM5,000RELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
OSA-SS-224DM5,000RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Veri Sayfası |
OSA, OEG | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
PCE-124D1H,000RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Veri Sayfası |
PCE, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 28VDC - Max | 2400VA, 280W | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
SDT-S-103LMR,000RELAY GEN PURPOSE SPST 5A 3V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 83.3 mA | Non Latching | - | PC Pin | - | Class E | 2.25 VDC | 0.3 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
8-1419125-0RELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 108 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-S-105LMR,000RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-S-105LMR2,000RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
- |
SDT-R, OEG | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 30 mA | Non Latching | - | PC Pin | - | Class E | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-S-106LMR,000RELAY GEN PURPOSE SPST 5A 6V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 41.7 mA | Non Latching | - | PC Pin | - | Class E | 4.5 VDC | 0.6 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-S-109DMR,000RELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 60 mA | Non Latching | - | PC Pin | - | Class E | 6.75 VDC | 0.9 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
SDT-S-109LMR,000RELAY GEN PURPOSE SPST 5A 9V |
0 |
|
Veri Sayfası |
SDT-R, OEG | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 27.8 mA | Non Latching | - | PC Pin | - | Class E | 6.75 VDC | 0.9 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
