Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

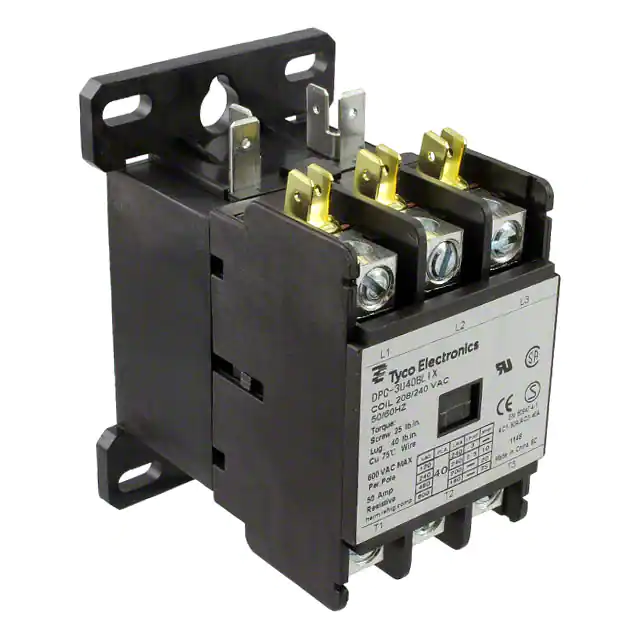

DPC-3U40BL1XRELAY 3PST 40A 208-240V |
0 |
|
Veri Sayfası |
DPC | Bulk | Obsolete | Chassis Mount | 208 ~ 240VAC | 3PST-NO (DM) (3 Form X) | 40 A | - | - | 67 mA | Non Latching | - | Solder Lug | - | - | 177 VDC | 140 VDC | - | - | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus | General Purpose | - | - |
|
PCFN-112H2MG,000RELAY GEN PURPOSE SPST 26A 12V |
0 |
|
Veri Sayfası |
PCFN Solar, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 26 A | 277VAC - Max | 7202VA | 125 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 7.8 VDC | 1.2 VDC | 20 ms | 10 ms | -25°C ~ 75°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

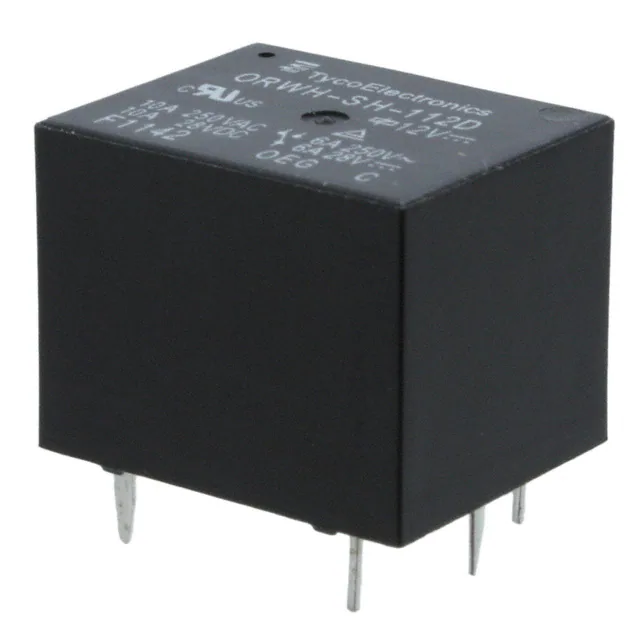

ORWH-SH-112D,N000RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Veri Sayfası |
ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
D8010LRELAY GEN PURPOSE 10A |
0 |
|
- |
- | Bulk | Discontinued | Through Hole | - | - | 10 A | - | - | - | Non Latching | - | PC Pin | - | - | - | - | - | - | -40°C ~ 125°C | - | - | General Purpose | - | - |
|
G7L-1A-T-80-CB AC100/120RELAY GEN PURPOSE SPST 30A 120V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 20.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-1A-TJ-CB DC48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 40 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-TUB-80-CB AC100/120RELAY GEN PURPOSE SPST 30A 120V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 20.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-P-CB AC12RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Through Hole | 12VAC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 142 mA | Non Latching | - | PC Pin | - | Class B | 9 VAC | 1.8 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G7L-2A-BUBJ-80-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | Test Button | Screw Terminal | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-P-CB DC6RELAY GEN PURPOSE SPST 20A 6V |
0 |
|
Veri Sayfası |
G7L | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 317 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
VMAXAARELAY GEN PURPOSE DPDT 7A 120V |
0 |
|
- |
VMA, AGASTAT | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 7 A | 250VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 104 VAC | 78 VAC | - | - | -10°C ~ 55°C | - | - | General Purpose | - | - |
|
VMAXBARELAY GEN PURPOSE DPDT 7A 240V |
0 |
|
- |
VMA, AGASTAT | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 209 VAC | 156 VAC | - | - | -10°C ~ 55°C | - | - | General Purpose | - | - |
|
7-1608065-1RELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
Veri Sayfası |
187 | Tray | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 333.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
5-1608054-5RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
- |
157, CII | Tray | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Nom | 2.7VA | 53.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

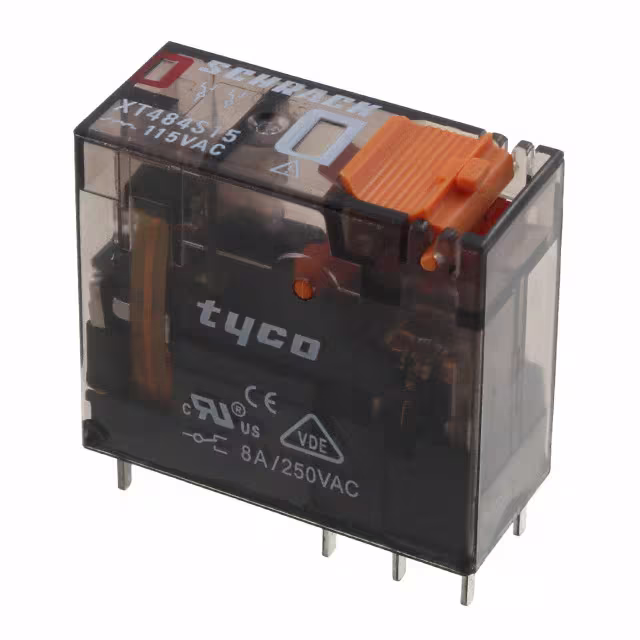

XT484S15RELAY GEN PURPOSE DPDT 8A 115V |
0 |
|
- |
XT, SCHRACK | Tube | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 16.7 mA | Non Latching | Lighted Indicator | Plug In | - | - | 86.3 VAC | 17.3 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
T9AV5D22-22RELAY GEN PURPOSE SPDT 20A 22V |
0 |
|
Veri Sayfası |
T9A | Bulk | Obsolete | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 45.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
ALE7PB05RELAY GEN PURPOSE SPST 16A 5V |
0 |
|
Veri Sayfası |
ALE | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
AHN12024RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Veri Sayfası |
AHN | Tube | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 22 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

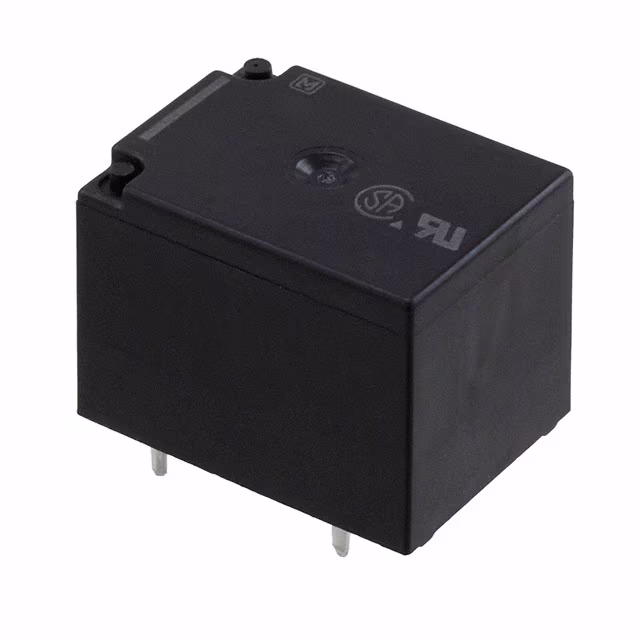

JS1F-F-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Veri Sayfası |
JS | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
MY4N-AC110/120RELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
Veri Sayfası |
MY | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 27.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
