Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2903699RELAY GEN PURPOSE DPDT 16A 24V |
0 |
|
Veri Sayfası |
REL-PR2 | - | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 16 A | 440VAC, 250VDC - Max | 7040VA, 4000W | 116 mA | Non Latching | - | Plug In | - | - | - | - | 25 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, EAC, UR | General Purpose | - | - |
|
|
2903700RELAY GEN PURPOSE DPDT 16A 120V |
0 |
|
Veri Sayfası |
REL-PR2 | - | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 16 A | 440VAC, 250VDC - Max | 7040VA, 4000W | 23 mA | Non Latching | - | Plug In | - | - | - | - | 25 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, EAC, UR | General Purpose | - | - |
|
|
2903701RELAY GEN PURPOSE DPDT 16A 230V |
0 |
|
Veri Sayfası |
REL-PR2 | - | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 16 A | 440VAC, 250VDC - Max | 7040VA, 4000W | 12 mA | Non Latching | - | Plug In | - | - | - | - | 25 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, cURus, EAC, UR | General Purpose | - | - |
|
|
2834957RELAY GEN PURPOSE DPDT 10A 220V |
0 |
|
Veri Sayfası |
REL-IR | Bulk | Obsolete | Socketable | 220VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 3.6 mA | Non Latching | Diode, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -55°C ~ 70°C | Silver (Ag) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
|
2833958RELAY GEN PURPOSE DPDT 10A 60V |
0 |
|
Veri Sayfası |
REL-IR | Bulk | Obsolete | Socketable | 60VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | - | 15 mA | Non Latching | - | Plug In | - | - | - | - | 13 ms | 5 ms | -55°C ~ 70°C | Silver (Ag) | cULus, EAC, UL, VDE | General Purpose | - | - |
|

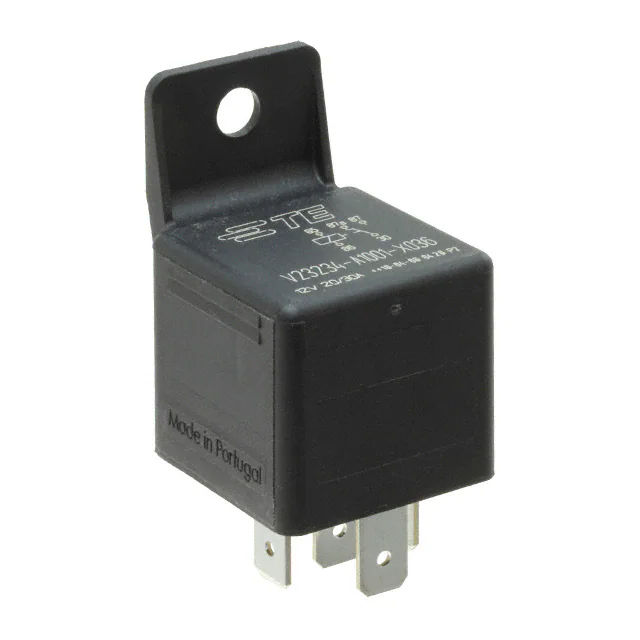

3-1904022-2RELAY GEN PURPOSE SPDT 30A 12V |
0 |
|
Veri Sayfası |
V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
|
|
ORWH-SS-112DM1F,000RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Veri Sayfası |
ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 70°C | Silver Zinc Oxide (AgZnO) | cURus, TUV | General Purpose | - | - |
|
|
3-1393224-9RY210032 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 32VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 22.4 VDC | 3.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
1-1393225-1RELAY GEN PURPOSE SPDT 8A 15V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 15VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | - | - | - | 9 ms | 5 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|
|
1393224-3RYA30009 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
1393224-5RYA30019 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 19VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | - | 13.3 VDC | 1.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
2-1393224-3RYA50005 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
9-1393224-1RY550005 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|
|
9-1393224-3RY550009 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|
|
9-1393224-7RY550048 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 5.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | - | cURus, VDE | General Purpose | - | - |
|
|
7-1393224-5RY530060 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 4.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 42 VDC | 6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
KUM-4231KUM-4231=RELAY,HOLD TO 65VAC,KCI |
0 |
|
- |
KUM | Tray | Obsolete | - | - | SPST-NC (DB) (1 Form Y) | 15 A | 277VAC - Max | 4155VA | - | Non Latching | - | - | - | - | - | - | 15 ms | 10 ms | - | - | CSA, UR | General Purpose | - | - |
|
|
KRPA-11DN-125RELAY GEN PURPOSE DPDT 10A 125V |
0 |
|
Veri Sayfası |
KRPA | Tray | Obsolete | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 93.75 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-14ANP-120RELAY GEN PURPOSE 3PDT 10A 120V |
0 |
|
Veri Sayfası |
KRPA | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 13.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
1393092-9RELAY GEN PURPOSE 3PDT 10A 115V |
0 |
|
Veri Sayfası |
MT, SCHRACK | Bulk | Active | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 57.5 mA | Non Latching | - | Plug In | - | Class B | 97.8 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
