Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6CK-1117P-US DC3RELAY GEN PURPOSE SPST 10A 3V |
151 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6B-1174P-1-US DC24RELAY GEN PURPOSE SPST 8A 24V |
171 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
7-1415014-1RELAY GEN PURPOSE SPDT 16A 24V |
997 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

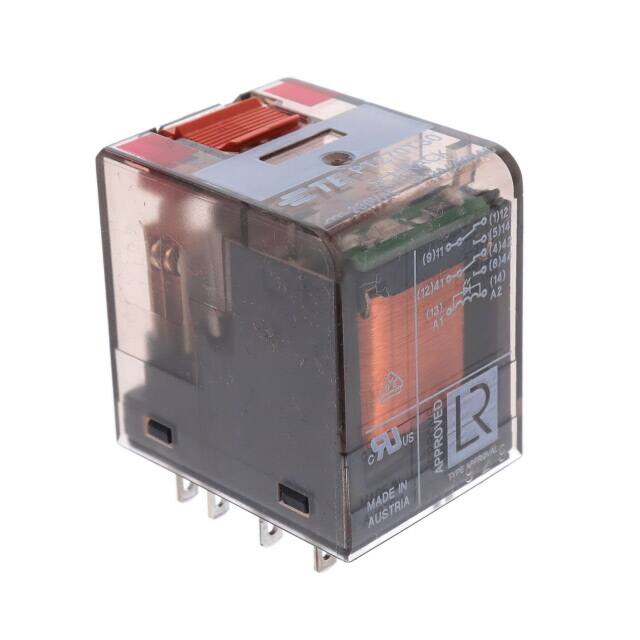

3-1415002-1RELAY GEN PURPOSE DPDT 12A 230V |
211 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 11.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | Sealed - Flux Protection | Class F | 207 VAC | 69 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
4-1419172-4RELAY GEN PURPOSE SPDT 3A 12V |
605 |
|
Veri Sayfası |
V23101, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 125VAC, 120VDC - Max | 375VA, 360W | 37.5 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
1-1415898-1RELAY GEN PURPOSE SPST 16A 48V |
124 |
|
Veri Sayfası |
RT1, Inrush, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G6B-1174P-FD-US DC6RELAY GEN PURPOSE SPST 8A 6V |
343 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR | General Purpose | - | - |
|
V23101D 107A301RELAY GEN PURPOSE SPDT 3A 24V |
1,187 |
|
Veri Sayfası |
V23101, AXICOM | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 125VAC, 120VDC - Max | 375VA, 360W | 8.6 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|

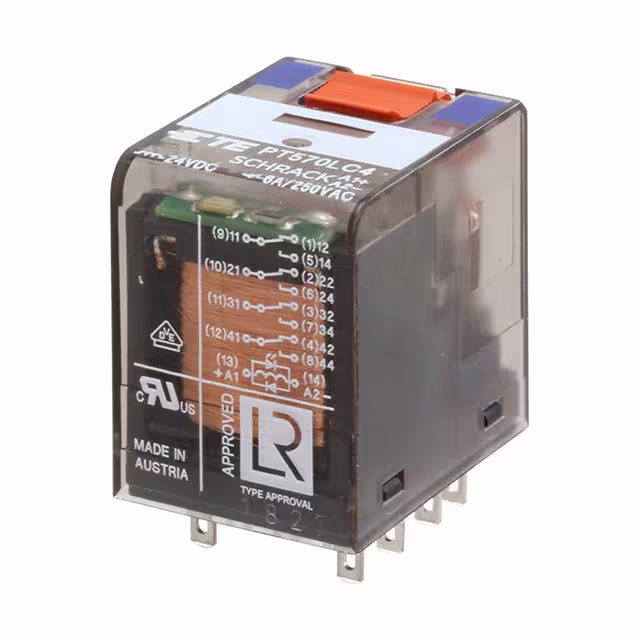

7-1415541-0RELAY GEN PURPOSE 4PDT 6A 24V |
981 |
|
Veri Sayfası |
PT, SCHRACK | Tube | Active | Socketable | 24VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 30.8 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 18 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
1-1393240-1RELAY GEN PURPOSE SPDT 16A 12V |
2,787 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6B-1174P-1-US DC5RELAY GEN PURPOSE SPST 8A 5V |
317 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RTE44730RELAY GEN PURPOSE DPST 8A 230V |
981 |
|
Veri Sayfası |
RT2, SCHRACK | Tube | Active | Through Hole | 230VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 172.5 VAC | 34.5 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AL4C12PCLD02400GRELAY GEN PURPOSE 4PDT 12A 24V |
1,000 |
|
Veri Sayfası |
AL | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 12 A | 277VAC, 28VDC - Max | 3324VA, 336W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
7-1415027-1RELAY GEN PURPOSE DPDT 12A 6V |
416 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 125 mA | Non Latching | Test Button | PC Pin | Sealed - Flux Protection | Class F | 4.5 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
PT570006RELAY GEN PURPOSE 4PDT 6A 6V |
260 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 6VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 125 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 4.5 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
PT370524RELAY GEN PURPOSE 3PDT 10A 24V |
213 |
|
Veri Sayfası |
PT, SCHRACK | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 125 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 19.2 VAC | 7.2 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AL4C12SCLA22000GRELAY GEN PURPOSE 4PDT 12A 220V |
1,000 |
|
Veri Sayfası |
AL | Box | Active | Socketable | 220VAC | 4PDT (4 Form C) | 12 A | 277VAC, 28VDC - Max | 3324VA, 336W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
|
AL4C10SCLD02400GRELAY GEN PURPOSE 4PDT 10A 24V |
1,000 |
|
Veri Sayfası |
AL | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
1-1393240-9RELAY GEN PURPOSE SPDT 16A 110V |
1,500 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 3.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
AL4C12PCLA22000GRELAY GEN PURPOSE 4PDT 12A 220V |
1,000 |
|
Veri Sayfası |
AL | Box | Active | Socketable | 220VAC | 4PDT (4 Form C) | 12 A | 277VAC, 28VDC - Max | 3324VA, 336W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
