Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST2-DC5V-FRELAY GEN PURPOSE DPST 8A 5V |
1,264 |
|
Veri Sayfası |
ST | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 3040VA, 2000W | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
DK2A-5VRELAY GEN PURPOSE DPST 8A 5V |
419 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
2903334RELAY GEN PURPOSE DPDT 8A 24V |
1,935 |
|
Veri Sayfası |
RIF | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA | General Purpose | - | - |
|
2961448RELAY GEN PURPOSE DPDT 8A 120V |
321 |
|
Veri Sayfası |
REL-MR | Tube | Active | Through Hole | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cULus, EAC, UR | General Purpose | - | - |
|

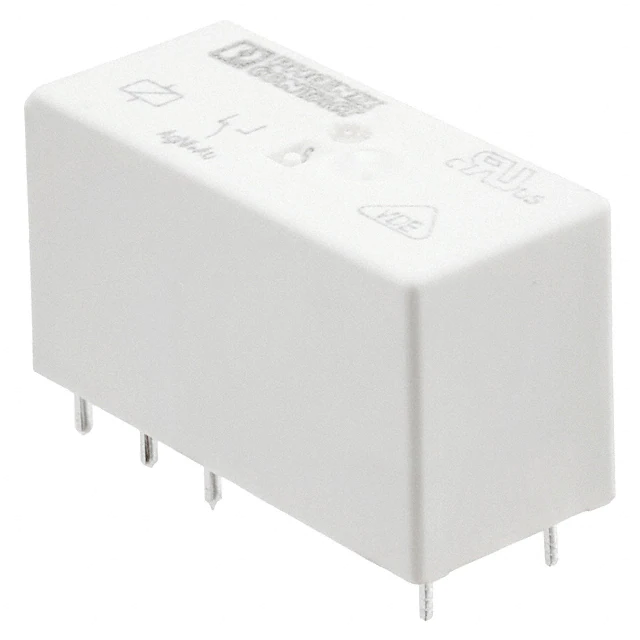

2961516RELAY GEN PURPOSE SPDT 16A 120V |
101 |
|
Veri Sayfası |
REL-MR | Tube | Active | Through Hole | 120VAC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
|
DK2A-12VRELAY GEN PURPOSE DPST 8A 12V |
1,279 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
AZEV140-1AE1BG-12DRELAY EV CHARGING DPST 50A 12V |
834 |
|
Veri Sayfası |
AZEV140 | Tray | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 50 A | 440VAC - Max | 22000VA | 175.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) | CQC, cURus, TUV | EV Charging | - | - |
|
|
DK1A-L2-5V-FRELAY GEN PURPOSE SPST 10A 5V |
211 |
|
Veri Sayfası |
DK | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-14 AC120RELAY GEN PURPOSE SPDT 8A 120V |
2,320 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 120VAC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
ADJH21012RELAY GEN PURPOSE SPST 50A 12V |
186 |
|
Veri Sayfası |
ADJH | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 83.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

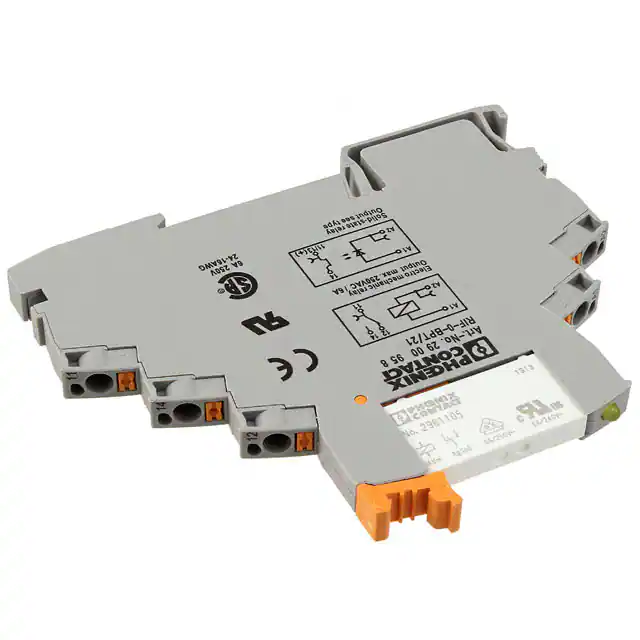

2903370RELAY GEN PURPOSE SPDT 6A 24V |
4,065 |
|
Veri Sayfası |
RIF | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 9 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 5 ms | 8 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA | General Purpose | - | - |
|

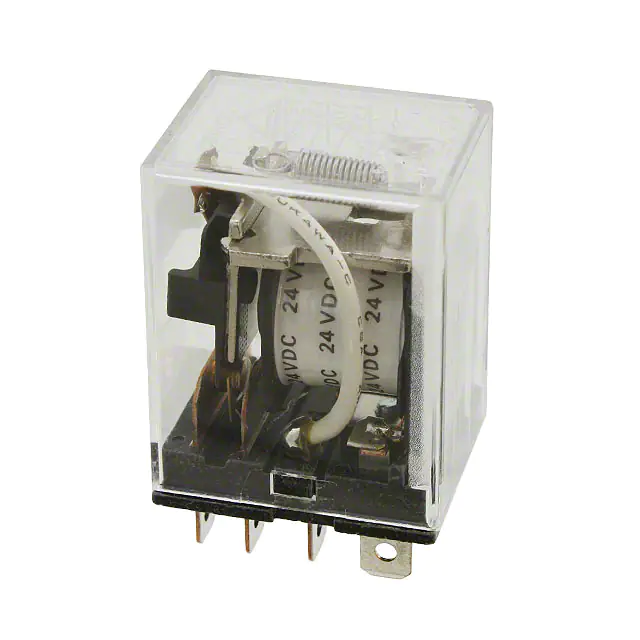

LY1-DC24RELAY GEN PURPOSE SPDT 15A 24V |
876 |
|
Veri Sayfası |
LY | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 36.9 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
LY2-0-DC24RELAY GEN PURPOSE DPDT 10A 24V |
12,921 |
|
Veri Sayfası |
LY | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 36.9 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
DE1A1B-24VRELAY GEN PURPOSE DPST 8A 24V |
444 |
|
Veri Sayfası |
DE | Tube | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
G5PZ-1A-X DC12RELAY GEN PURPOSE SPST 20A 12V |
176 |
|
Veri Sayfası |
G5PZ-X | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 400VDC - Max | 4000VA | 44.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, cULus, TUV | General Purpose | - | - |
|

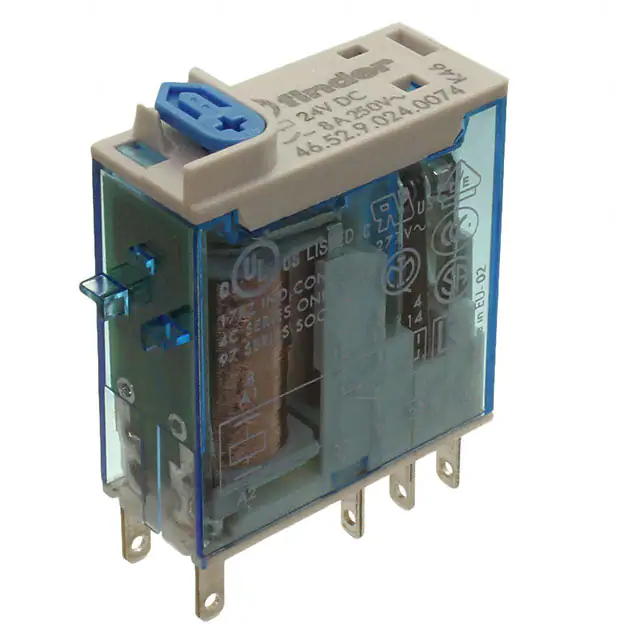

46.52.9.024.0074RELAY GEN PURPOSE DPDT 8A 24V |
318 |
|
Veri Sayfası |
46 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 20 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 17.5 VDC | 4.8 VDC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
APF30305RELAY GEN PURPOSE SPDT 6A 5V |
1,308 |
|
Veri Sayfası |
APF | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | - | 34 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-S AC24(S)RELAY GEN PURPOSE SPDT 10A 24V |
799 |
|
Veri Sayfası |
G2RS | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 37.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
RTS3TF12RELAY GEN PURPOSE SPST 16A 12V |
2,359 |
|
Veri Sayfası |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
4-1393243-3RELAY GEN PURPOSE DPDT 8A 230V |
1,263 |
|
Veri Sayfası |
RT2, SCHRACK | Tube | Active | Through Hole | 230VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 3.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
