Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RT134615RELAY GEN PURPOSE SPST 12A 115V |
0 |
|
Veri Sayfası |
RT1, SCHRACK | Bulk | Active | Through Hole | 115VAC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 86.3 VAC | 17.3 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9AS1D27-12RELAY GEN PURPOSE SPST 21A 12V |
0 |
|
Veri Sayfası |
T9A | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 21 A | 277VAC - Max | 5817VA | 83 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|

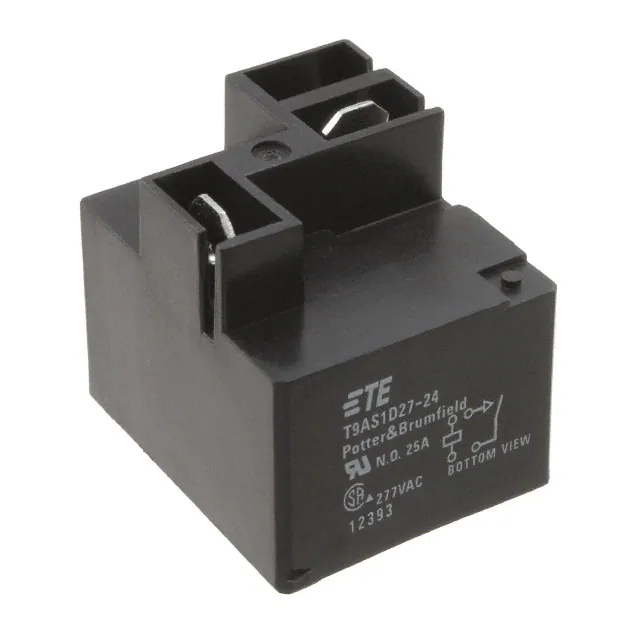

T9AS1D27-24RELAY GEN PURPOSE SPST 21A 24V |
0 |
|
- |
T9A | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 21 A | 277VAC - Max | 5817VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
1-1956171-4RELAY GEN PURPOSE SPST 8A 12V |
560 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | - | Class F | - | - | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
RP420110RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
Veri Sayfası |
RP II/2, SCHRACK | Bulk | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 4.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | 11 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
1-1415543-5RELAY GEN PURPOSE DPST 8A 110V |
0 |
|
Veri Sayfası |
RT2, SCHRACK | Bulk | Active | Through Hole | 110VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2RN5013BRELAY GEN PURPOSE SPDT 10A 5V |
250 |
|
- |
G2R | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | - | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
1-1393219-6PE015048 |
0 |
|
Veri Sayfası |
PE, SCHRACK | Tube | Discontinued | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 4.4 mA | Non Latching | - | PC Pin | - | - | 36 VDC | 4.8 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G8P-1C4TP-DC12POWER PCB RELAY |
4,443 |
|
- |
G8P | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | - | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
1-1904022-1RELAY GEN PURPOSE SPDT 30A 12V |
114 |
|
Veri Sayfası |
V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | 141.2 mA | Non Latching | Resistor | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
|
G6CU-2117P-US-DC3POWER RELAYS - POWER PCB RELAY |
1,131 |
|
Veri Sayfası |
G6C | Box | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | - | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
1-1393234-6RELAY GEN PURP |
128 |
|
Veri Sayfası |
RP II/1, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
2-1415898-1RELAY GEN PURPOSE SPST 16A 48V |
0 |
|
Veri Sayfası |
RT1, Inrush, SCHRACK | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 6400VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
5-1415520-1RELAY GEN PURPOSE SPST 16A 12V |
405 |
|
Veri Sayfası |
RF, SCHRACK | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 11 ms | 7 ms | -40°C ~ 105°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
4-1415382-1RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Veri Sayfası |
RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 13.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
2-1393238-3RELAY GEN PURPOSE SPDT 12A 110V |
0 |
|
Veri Sayfası |
RT1, SCHRACK | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 3.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
1-1956171-7RELAY GEN PURPOSE SPST 8A 24V |
1,067 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
3-1415540-0RELAY GEN PURPOSE SPST 16A 6V |
0 |
|
Veri Sayfası |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 109.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RT314A03Power/Signal Relay, 1 Form C, SP |
137,291 |
|
Veri Sayfası |
RT | Bulk | Active | Through Hole | 3VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 4000VA | 143 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.1 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cCSAus, CQC, cURus, VDE | General Purpose | - | - |
|
|
2-1415390-1RELAY GEN PURPOSE SPDT 5A 6V |
0 |
|
Veri Sayfası |
PE, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
