Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20.23.9.012.0000RELAY IMPULSE DPST 16A 12V |
8 |
|
Veri Sayfası |
20 | Bulk | Active | DIN Rail | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 16 A | 400VAC - Max | 6400VA | 440 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 10.8 VDC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
20.23.9.024.0000RELAY IMPULSE DPST 16A 24V |
38 |
|
Veri Sayfası |
20 | Bulk | Active | DIN Rail | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 16 A | 400VAC - Max | 6400VA | 230 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 21.6 VDC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
20.22.9.012.0000RELAY IMPULSE DPST 16A 12V |
21 |
|
Veri Sayfası |
20 | Bulk | Active | DIN Rail | 12VDC | DPST-NO (2 Form A) | 16 A | 400VAC - Max | 6400VA | 440 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 10.8 VDC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
MJN3C-IN-AC120RELAY GEN PURPOSE 3PDT 10A 120V |
14 |
|
Veri Sayfası |
MJN | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 16.7 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 45°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
MY2K DC12RELAY GEN PURPOSE DPDT 3A 12V |
8 |
|
Veri Sayfası |
MYK | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 110 mA | Latching, Dual Coil | - | Plug In | - | - | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 60°C | - | CE, CSA, LR, UR, TUV, VDE | General Purpose | - | - |
|
SP4-L2-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
21 |
|
Veri Sayfası |
SP | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 12.5 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
KRPA-14AN-120RELAY GEN PURPOSE 3PDT 10A 120V |
87 |
|
Veri Sayfası |
KRPA | Tray | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | Class B | 102 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1123700000RELAY GEN PURPOSE DPDT 8A 24V |
13 |
|
Veri Sayfası |
TERMSERIES | Bulk | Active | DIN Rail | 24 ~ 230VAC/DC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 40 ms | 100 ms | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
G7EB-1A-E DC24RELAY GEN PURPOSE SPST 100A 24V |
42 |
|
Veri Sayfası |
G7EB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 120 A | 800VAC, 60VDC - Max | 48000VA, 6000W | 116.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|
|
20.22.9.012.4000RELAY IMPULSE DPST 16A 12V |
6 |
|
Veri Sayfası |
20 | Box | Active | DIN Rail | 12VDC | DPST-NO (2 Form A) | 16 A | 400VAC - Max | 6400VA | 440 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 10.8 VDC | - | - | - | -40°C ~ 40°C | Silver Tin Oxide (AgSnO) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
|
G7EB-1A-E DC12RELAY GEN PURPOSE SPST 100A 12V |
54 |
|
Veri Sayfası |
G7EB | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 120 A | 800VAC, 60VDC - Max | 48000VA, 6000W | 235.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, TUV, UL | General Purpose | - | - |
|

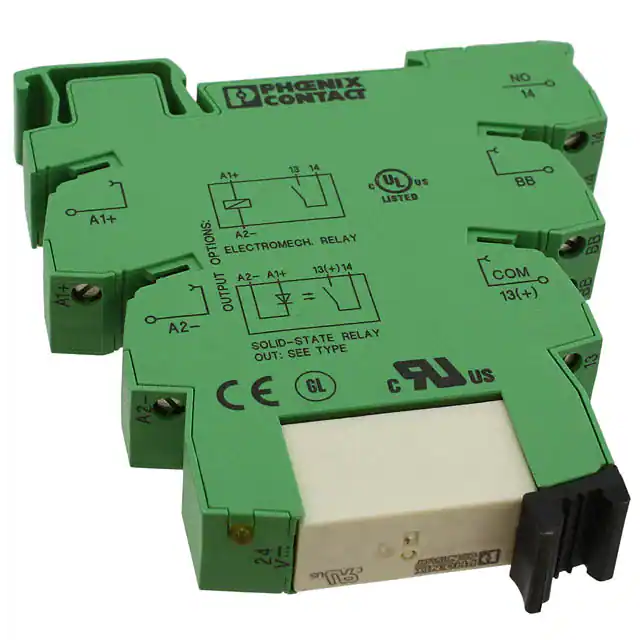

2967604RELAY GEN PURPOSE SPST 6A 24V |
44 |
|
Veri Sayfası |
PLC-RSC | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
859-390RELAY GEN PURPOSE SPDT 5A 24V |
19 |
|
Veri Sayfası |
859 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 12 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 6 ms | 6 ms | -40° ~ 70°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
MJN2CK-DC12RELAY GEN PURPOSE DPDT 10A 12V |
85 |
|
Veri Sayfası |
MJN | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 100 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|

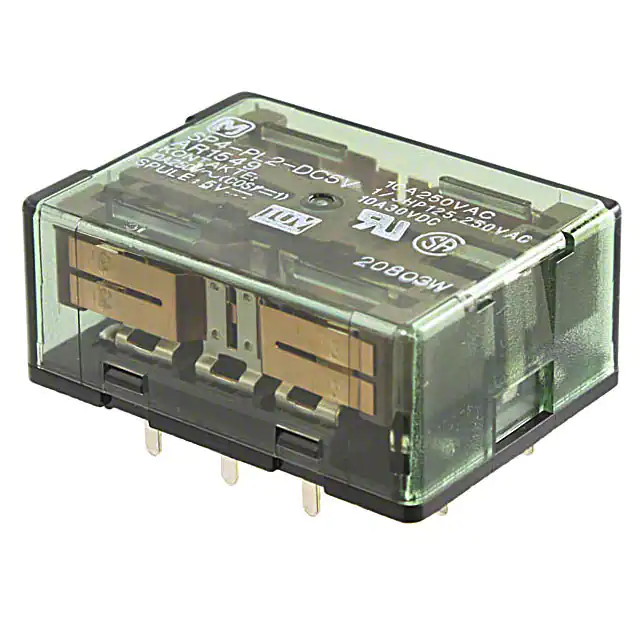

SP4-PL2-DC5VRELAY GEN PURPOSE 4PDT 10A 5V |
80 |
|
Veri Sayfası |
SP | Box | Active | Through Hole | 5VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 60.2 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
SP4-DC12VRELAY GEN PURPOSE 4PDT 10A 12V |
10 |
|
Veri Sayfası |
SP | Box | Active | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 25 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
2759080000RELAY MODULE, 24 V DC, GREEN LED |
22 |
|
Veri Sayfası |
FSKIT | Box | Active | DIN Rail | 24VDC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 6 A | 250VAC - Max | 1500VA | 20 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 18.7 VDC | 3.15 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CE, cULus | General Purpose | - | - |
|
KUEP-3D15-24RELAY GEN PURPOSE SPST 10A 24V |
77 |
|
Veri Sayfası |
KUEP | Bulk | Active | Socketable | 24VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
T92HP7D1X-24RELAY GEN PURPOSE DPST 50A 24V |
32 |
|
Veri Sayfası |
T92 | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 50 A | 600VAC - Max | 30000VA | 68.6 mA | Non Latching | - | - | - | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|

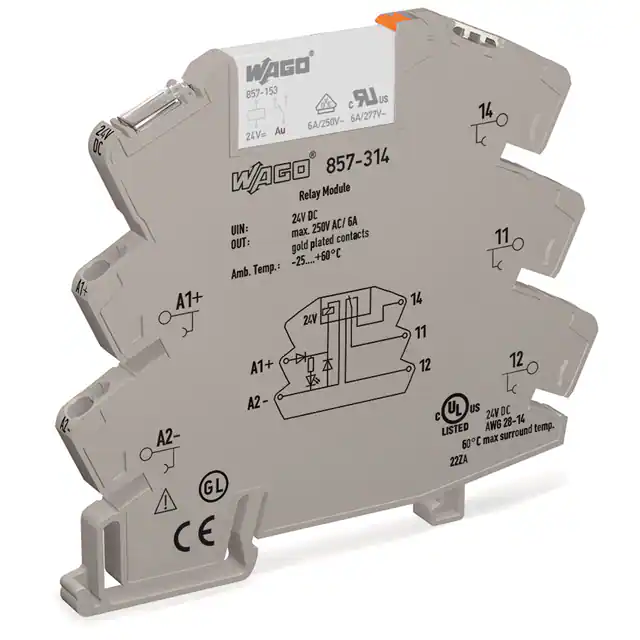

857-314RELAY GEN PURPOSE SPDT 6A 24V |
25 |
|
Veri Sayfası |
857 | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 10 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 6 ms | 6 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | EAC, UL | General Purpose | - | - |
