Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A-E-ASI DC24RELAY GEN PURPOSE SPST 16A 24V |
71 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
AZ2800-2A-277AERELAY EV CHG SOLAR DPST 40A 277V |
74 |
|
Veri Sayfası |
AZ2800 | Tray | Active | Chassis Mount | 277VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 14.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 221.6 VAC | 55.4 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
7760056068RELAY GEN PURPOSE DPDT 10A 12V |
28 |
|
Veri Sayfası |
DRM | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 75 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB DC48RELAY GEN PURPOSE SPST 30A 48V |
34 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 40 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
G2R-2-S DC48(S)RELAY GEN PURPOSE DPDT 5A 48V |
62 |
|
Veri Sayfası |
G2RS | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 11.4 mA | Non Latching | - | Plug In | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|

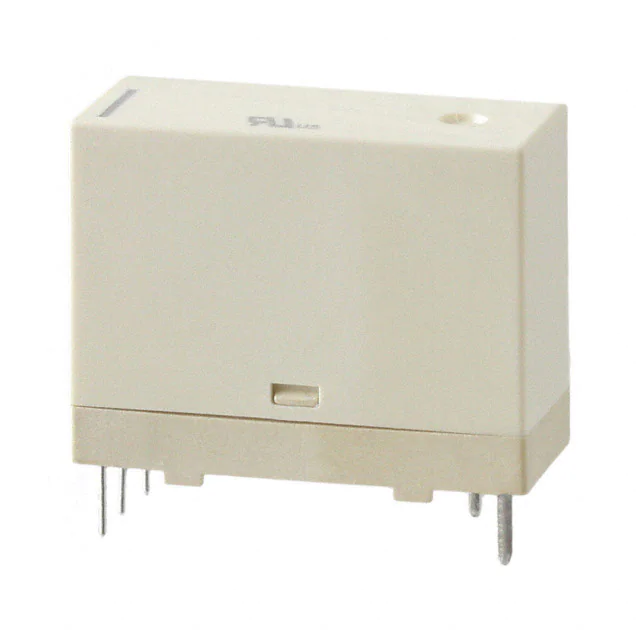

ADW1212WRELAY GEN PURPOSE SPST 8A 12V |
100 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G4W-1112P-US-TV8-HP DC24RELAY GEN PURPOSE SPST 15A 24V |
35 |
|
Veri Sayfası |
G4W | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 33.3 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
.jpg)
|
G2R-1-SD DC48(S)RELAY GEN PURPOSE SPDT 10A 48V |
27 |
|
Veri Sayfası |
G2RS | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 11.4 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
7760056055RELAY GEN PURPOSE DPDT 10A 24V |
28 |
|
Veri Sayfası |
DRM | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 150 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | cURus | General Purpose | - | - |
|
G6B-2114P-1-US DC24RELAY GEN PURPOSE DPST 5A 24V |
72 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|

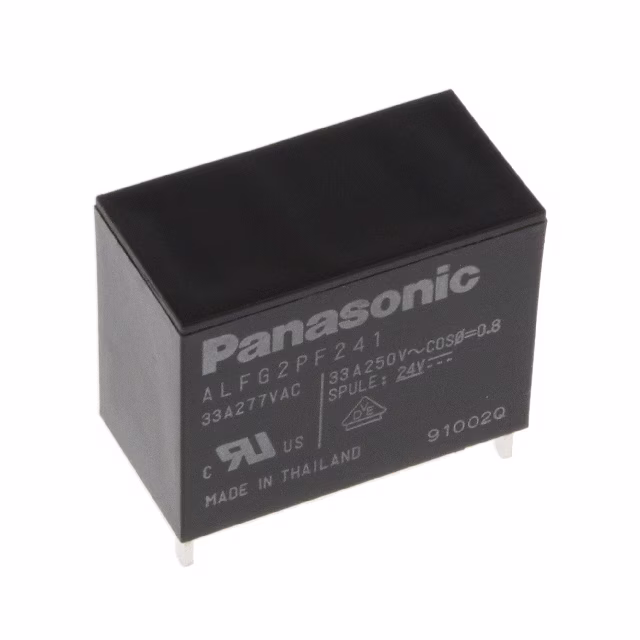

ALFG2PF241RELAY GEN PURPOSE SPST 33A 24V |
49 |
|
Veri Sayfası |
ALFG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 33 A | 250VAC - Max | 8250VA | 58.6 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G7L-1A-T-CB AC200/240RELAY GEN PURPOSE SPST 30A 240V |
28 |
|
Veri Sayfası |
G7L | Bulk | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 10.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 150 VAC | 36 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|

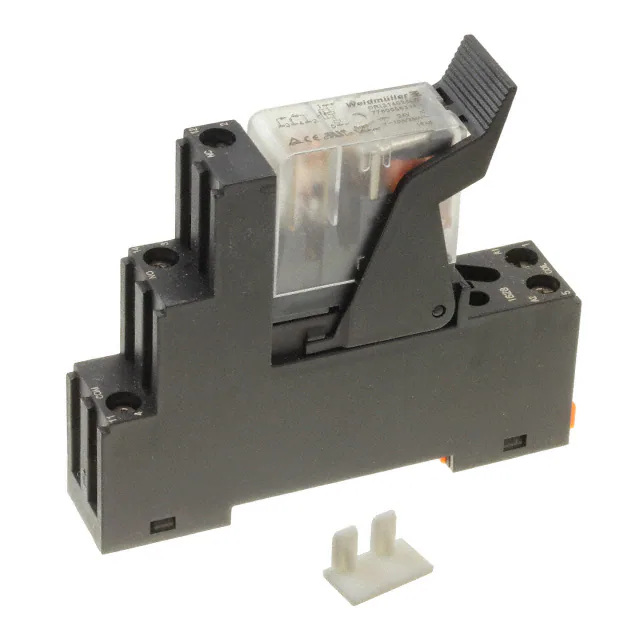

2476680000RELAY GEN PURPOSE SPDT 10A 24V |
11 |
|
Veri Sayfası |
DRI | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 21.8 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 18 VDC | 3.6 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
788-154RELAY GEN PURPOSE SPDT 16A 24V |
8 |
|
Veri Sayfası |
788 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 17 mA | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
8870360000RELAY GEN PURPOSE DPDT 8A 115V |
12 |
|
Veri Sayfası |
RCI | Bulk | Active | Through Hole | 115VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 6.6 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 86.3 VAC | 17.3 VAC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
|
G2R-2-S DC6(S)RELAY GEN PURPOSE DPDT 5A 6V |
26 |
|
Veri Sayfası |
G2RS | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 87 mA | Non Latching | - | Plug In | - | - | 4.2 VDC | 0.9 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
2961477RELAY GEN PURPOSE DPDT 8A 120V |
44 |
|
Veri Sayfası |
REL-MR | Bulk | Active | Through Hole | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 7 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
2961464RELAY GEN PURPOSE DPDT 8A 24V |
8 |
|
Veri Sayfası |
REL-MR | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 24 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
2476800000RELAY GEN PURPOSE SPDT 10A 230V |
8 |
|
Veri Sayfası |
DRI | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 4.9 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
G6CU-2114P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
77 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
