Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24450RELAY GEN PURPOSE DPDT 75A 12V |
10 |
|
Veri Sayfası |
- | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 75 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | - | Copper | - | General Purpose | - | - |
|

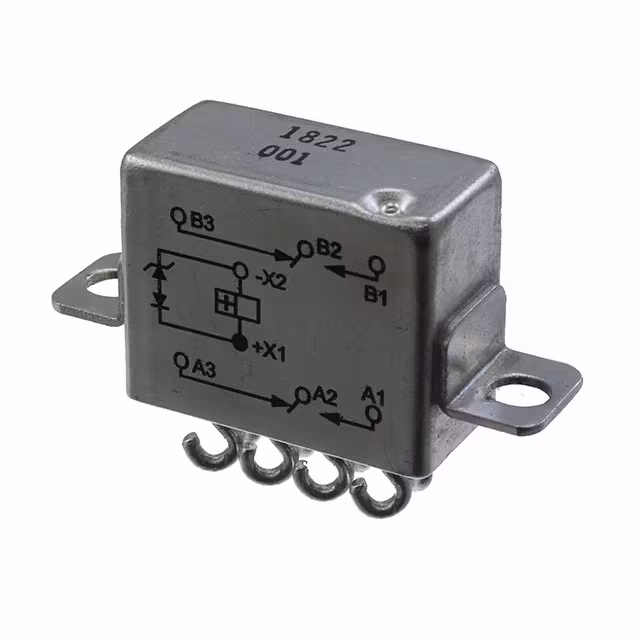

FCB-205-0223MRELAY GEN PURPOSE DPDT 5A 28V |
8 |
|
Veri Sayfası |
FCB-205, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | - | - | 56 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-83536/2 |
|
G6B-4CB DC24RELAY GEN PURPOSE 4PDT 5A 24V |
8 |
|
Veri Sayfası |
G6B-4 | Bulk | Active | DIN Rail | 24VDC | 4PDT (4 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 12.5 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CE, CSA, UR, VDE | General Purpose | - | - |
|
G9EA-1-B-CA DC48RELAY GEN PURPOSE SPST 30A 48V |
5 |
|
Veri Sayfası |
G9EA-1 | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 400VDC - Max | 12000W | 102 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
MM4XKP DC24RELAY GEN PURPOSE 4PDT 5A 24V |
11 |
|
Veri Sayfası |
MMK | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | 20VA, 700W | 94 mA | Latching, Dual Coil | - | Plug In, 15 Pin (Octal) | - | - | 19.2 VDC | - | 60 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
29-011-12ARELAY GEN PURPOSE SPST 75A 28V |
12 |
|
Veri Sayfası |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 75 A | - | 10W | 368.4 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 35 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

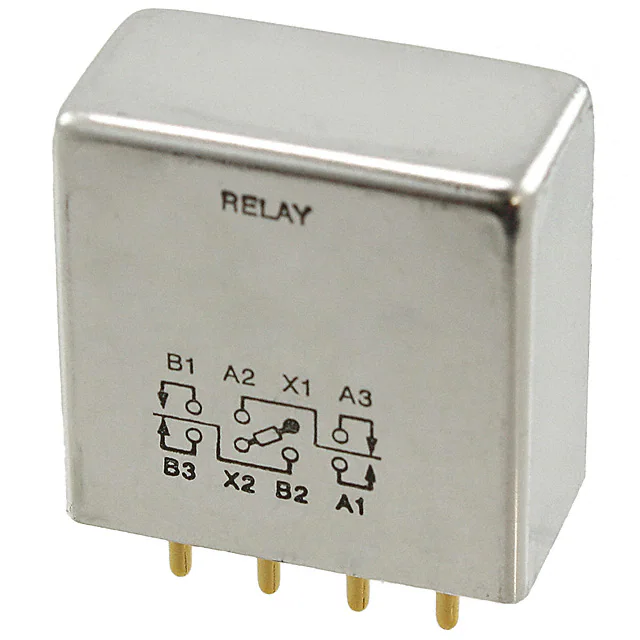

B07D034BB2-0120RELAY GEN PURPOSE DPDT 10A 12V |
8 |
|
Veri Sayfası |
07, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 160 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.5 VDC | 0.8 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-5757/23 |
|
G9EC-1 DC12RELAY GEN PURPOSE SPST 200A 12V |
9 |
|
Veri Sayfası |
G9EC-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 938 mA | Non Latching | - | Wire Leads | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | cURus | General Purpose | - | - |
|

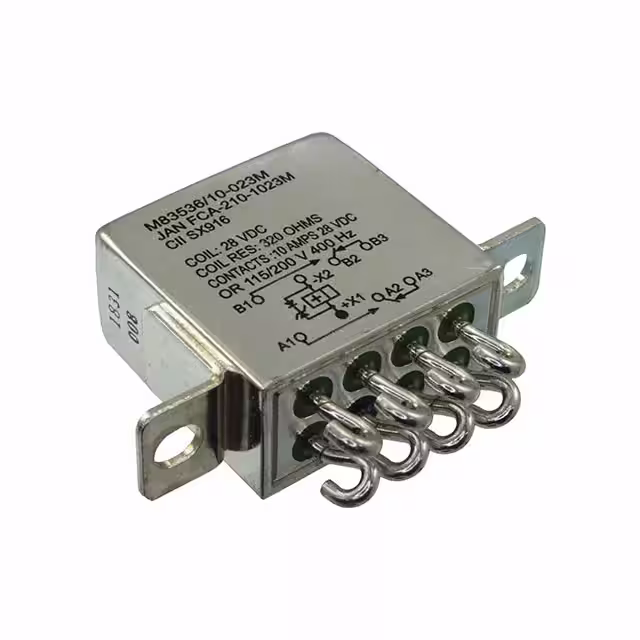

FCA-210-1023MRELAY DPDT 10A 28V |
9 |
|
Veri Sayfası |
FCA-210, CII | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | - | - | 87.5 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

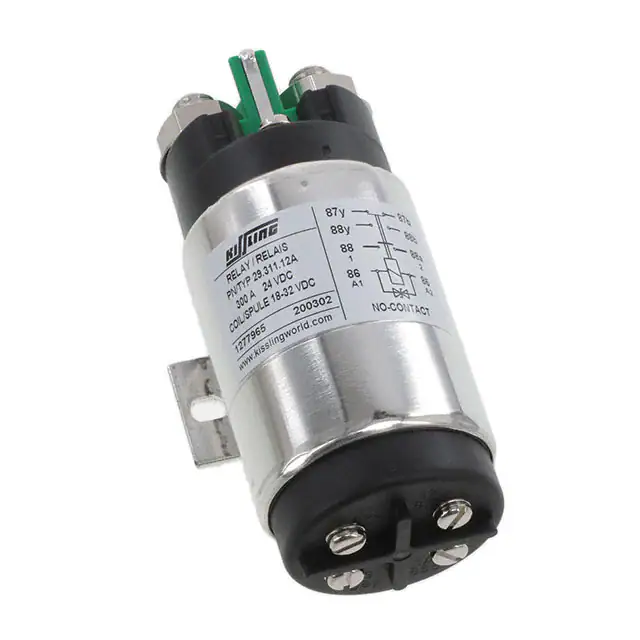

29-311-12ARELAY GEN PURPOSE SPST 300A 28V |
13 |
|
Veri Sayfası |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|

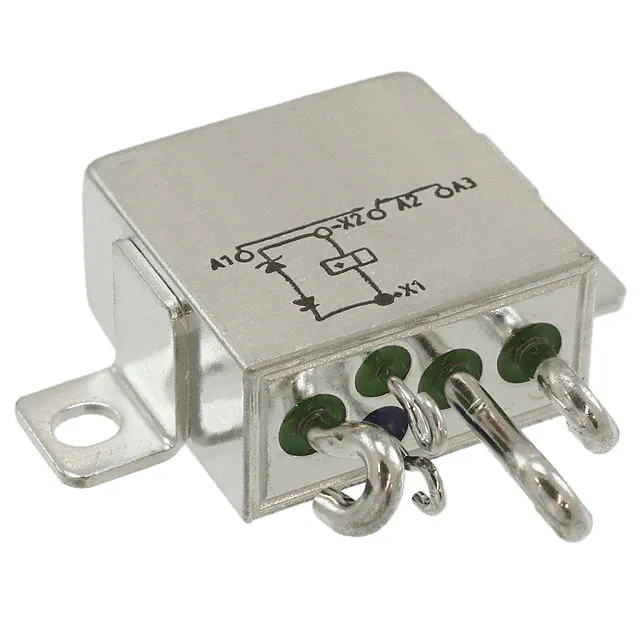

FCA-125-24RELAY GEN PURPOSE SPDT 25A 28V |
8 |
|
Veri Sayfası |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 875 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-6106/19 |
|

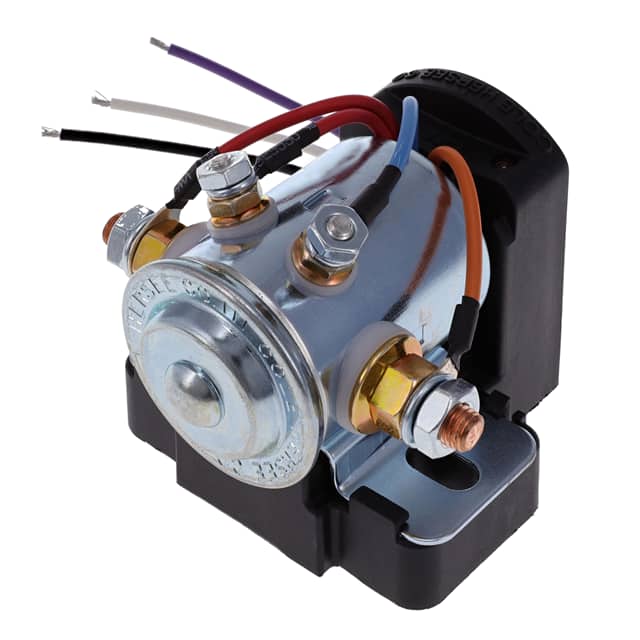

48530RELAY GEN PURPOSE 200A 16V |
3 |
|
Veri Sayfası |
- | Bulk | Active | Chassis Mount | 16VDC | - | 200 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | - | - | General Purpose | - | - |
|
K81B335RELAY GEN PURPOSE SPST 5A 26.5V |
3 |
|
Veri Sayfası |
K81B, KILOVAC | Bulk | Active | Through Hole | 26.5VDC | SPST-NC (1 Form B) | 5 A | 10000VDC - Nom | - | 91.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
|
1423156-2RELAY GEN PURPOSE SPDT 10A 120V |
5 |
|
- |
GP, AGASTAT | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | - | - | - | Non Latching | - | Plug In | - | - | 102 VAC | - | 18 ms | - | 0°C ~ 60°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
K41R334RELAY GEN PURPOSE SPDT 25A 26.5V |
7 |
|
Veri Sayfası |
K41, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Nom | - | 331.3 mA | Latching, Dual Coil | - | Wire Leads | - | - | 16 VDC | - | 6 ms | - | -55°C ~ 125°C | - | - | General Purpose | - | - |
|

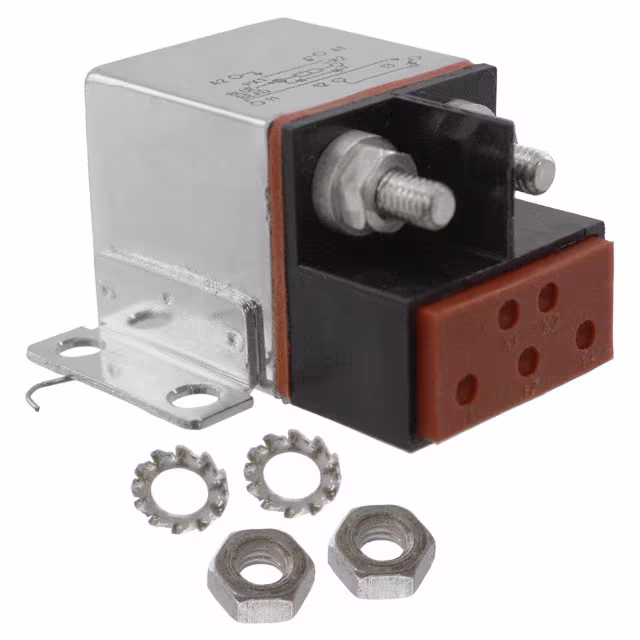

FCAC-150-KR4RELAY GEN PURPOSE SPST 50A 28V |
13 |
|
Veri Sayfası |
FCAC-150, CII | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | 96.6 mA | Non Latching | - | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
FC-325-8RELAY GEN PURPOSE 3PST 25A 28V |
6 |
|
Veri Sayfası |
FC-325, CII | Bulk | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 25 A | 115VAC, 28VDC - Nom | - | 175 mA | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
FC-335-SY3RELAY GEN PURPOSE 3PST 35A 28V |
10 |
|
Veri Sayfası |
FC-335, CII | Bulk | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 35 A | 115VAC, 28VDC - Nom | - | 750 mA | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - | - | General Purpose | - | - |
|
|
FCC-325-CW4RELAY GEN PURPOSE 3PST 25A 28V |
2 |
|
Veri Sayfası |
FCC-325, CII | Box | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 25 A | 115VAC, 28VDC - Nom | 2875VA, 700W | 175 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
3-1618276-5RELAY GEN PURPOSE SPDT 10A 26.5V |
5 |
|
Veri Sayfası |
K61, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 10 A | - | - | 212 mA | Non Latching | - | Solder Turret, Wire Leads | - | - | 18 VDC | 1 VDC | 15 ms | 15 ms | -55°C ~ 85°C | - | - | General Purpose | - | - |
