Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R10-R2P6-V90RELAY GEN PURPOSE 6PDT 3A 12V |
0 |
|
Veri Sayfası |
R10 | Bulk | Active | Through Hole | 12VDC | 6PDT (6 Form C) | 3 A | 120VAC - Nom | - | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
R10-E1P6-V90RELAY GEN PURPOSE 6PDT 3A 12V |
0 |
|
Veri Sayfası |
R10 | Bulk | Active | Socketable | 12VDC | 6PDT (6 Form C) | 3 A | 120VAC - Nom | - | 133 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|

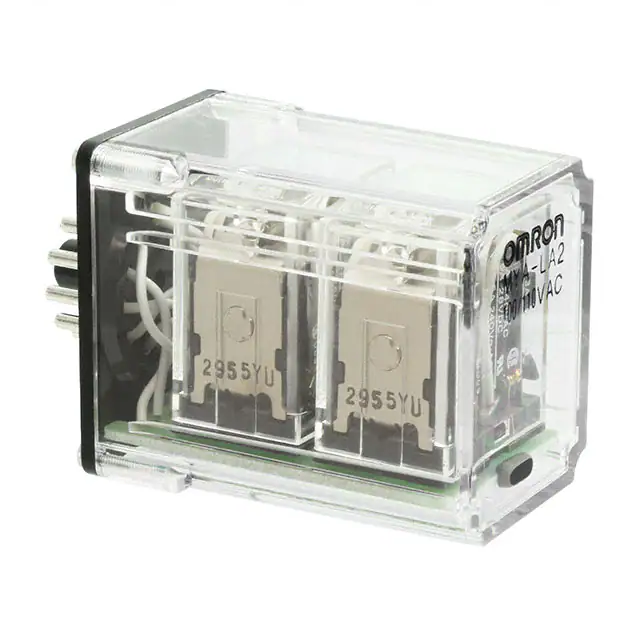

MYA-LA2 AC100/110RELAY 110V |
2 |
|
- |
MYA | Bulk | Active | - | 110VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KAP-11AG-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
KUL-5D15D-12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
Veri Sayfası |
KUL | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 133.3 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 25 ms | 25 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
8501CO16V29POWER RELAY, TYPE C, 2 HP, 30A R |
11 |
|
Veri Sayfası |
Square D 8501C | Box | Active | Chassis Mount | 480VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
8501CO16V04POWER RELAY, TYPE C, 2 HP, 30A R |
10 |
|
Veri Sayfası |
Square D 8501C | Box | Active | Chassis Mount | 277VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
8501CO16V20POWER RELAY, TYPE C, 2 HP, 30A R |
9 |
|
Veri Sayfası |
Square D 8501C | Box | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
8501CO16V08POWER RELAY, TYPE C, 2 HP, 30A R |
6 |
|
Veri Sayfası |
Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | SPDT (1 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | CE, CSA, UL | General Purpose | - | - |
|

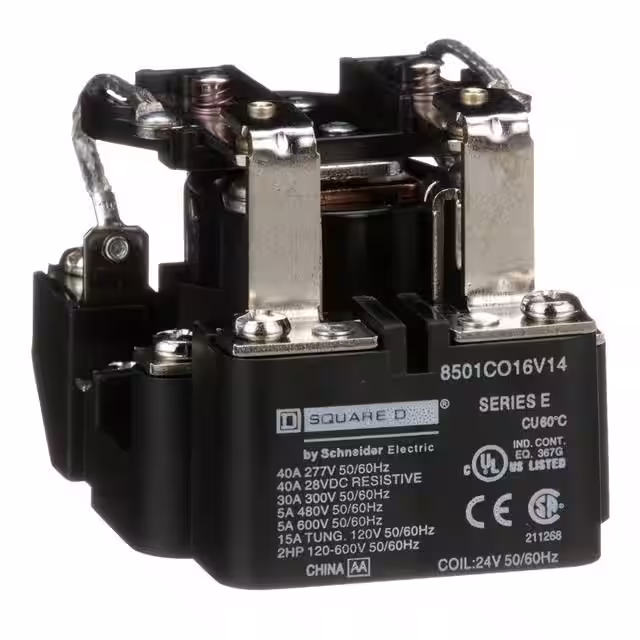

8501CO16V14POWER RELAY, TYPE C, 2 HP, 30A R |
2 |
|
Veri Sayfası |
Square D 8501C | Box | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
PRD-11AJ0-24RELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
Veri Sayfası |
PRD | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 410 mA | Non Latching | - | Screw Terminal | - | Class B | 20.4 VAC | 2.4 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
ARP120A6RALTERNATING RELAY |
4 |
|
Veri Sayfası |
ARP | Box | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 240VAC, 24VDC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 102 VAC | - | - | - | -28°C ~ 65°C | - | - | Impulse | - | - |
|
9-1393806-2RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Veri Sayfası |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
8-1393806-3RELAY GEN PURPOSE DPST 5A 20V |
0 |
|
Veri Sayfası |
V23154, AXICOM | Bulk | Obsolete | Socketable | 20VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 8.2 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
4-1393127-8POWER RELAY ASSEMBLY |
0 |
|
Veri Sayfası |
PRD | Bulk | Obsolete | Chassis Mount | 125VDC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 16 mA | Non Latching | - | Screw Terminal | - | Class B | 93.75 VDC | 12.5 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
4-1393809-4RELAY GEN PURPOSE DPDT 5A 48V |
1 |
|
Veri Sayfası |
V23154, AXICOM | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 30 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|

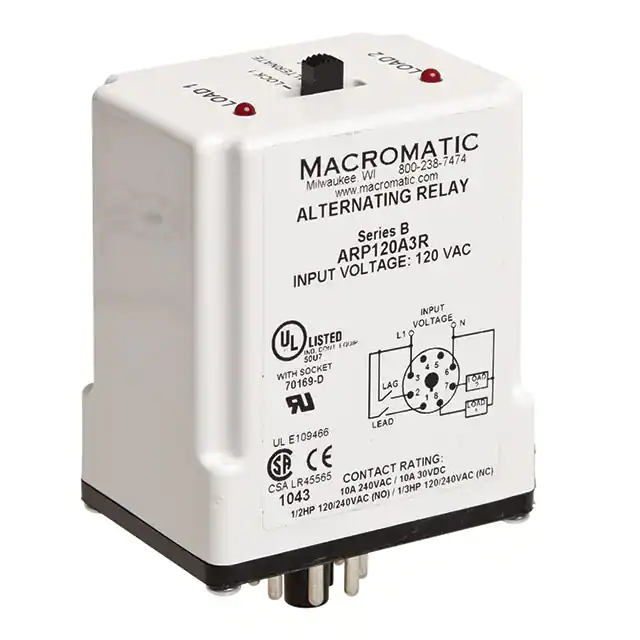

ARP120A3RRELAY IMPULSE DPDT 10A 120V |
5 |
|
Veri Sayfası |
ARP | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 24VDC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 102 VAC | - | - | - | -28°C ~ 65°C | - | - | Impulse | - | - |
|
|
3-1393806-3RELAY GEN PURPOSE 5A 1.1V |
0 |
|
Veri Sayfası |
V23154, AXICOM | Bulk | Obsolete | Socketable | 1.1VDC | - | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 0.4 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
R10L-E1X4-V185RELAY GEN PURPOSE 4PDT 7.5A 12V |
0 |
|
- |
R10L | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 7.5 A | 120VAC, 30VDC - Max | 900VA, 225W | 64.9 mA | Non Latching | - | Plug In | - | - | 9 VDC | - | - | - | -55°C ~ 75°C | - | - | General Purpose | - | - |
|
8501CDO22V51POWER RELAY, TYPE C, 20A RESISTI |
8 |
|
Veri Sayfası |
Square D 8501C | Box | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 325VDC - Max | 6500VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | CE, CSA, UL | General Purpose | - | - |
