Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RL-2 DC48RELAY GEN PURPOSE DPDT 8A 48V |
19 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-14-E-CF DC5RELAY GEN PURPOSE SPDT 16A 5V |
0 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-2A4 DC5RELAY GEN PURPOSE DPST 8A 5V |
0 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G6RL-1A-ASI DC12RELAY GEN PURPOSE SPST 10A 12V |
25 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 18.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
T9GS2L24-24RELAY GEN PURPOSE SPST 20A 24V |
9 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
8869800000RELAY GEN PURPOSE SPDT 16A 12V |
21 |
|
Veri Sayfası |
RCI | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
G5CA-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
6 |
|
Veri Sayfası |
G5CA | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
ADW1105HLWRELAY GEN PURPOSE SPST 16A 5V |
24 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
2987985RELAY GEN PURPOSE DPDT 8A 24V |
10 |
|
Veri Sayfası |
REL-MR | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | PC Pin | - | - | - | - | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
7760056310RELAY GEN PURPOSE SPDT 10A 12V |
13 |
|
Veri Sayfası |
DRI | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 44.4 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
G2R-1-T130 DC24RELAY GEN PURPOSE SPDT 10A 24V |
18 |
|
Veri Sayfası |
G2R | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JVN1AF-24V-FRELAY GEN PURPOSE SPST 16A 24V |
11 |
|
Veri Sayfası |
JV-N | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
RXG15BDHARMONY, INTERFACE PLUG-IN RELAY |
11 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
ALFG1PF241RELAY GEN PURPOSE SPST 22A 24V |
6 |
|
Veri Sayfası |
ALFG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 58.6 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

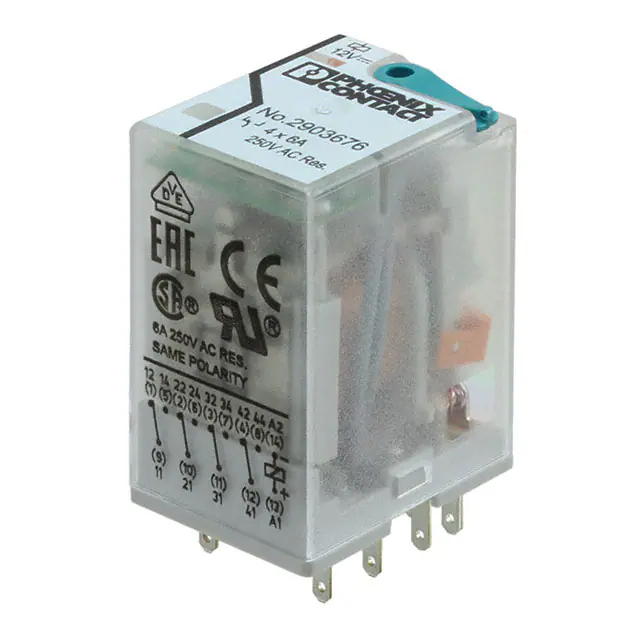

2903676RELAY GEN PURPOSE 4PDT 6A 12V |
21 |
|
Veri Sayfası |
REL-IR | - | Active | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 78 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 13 ms | 14 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
2903668RELAY GEN PURPOSE DPDT 12A 230V |
10 |
|
Veri Sayfası |
REL-IR | - | Active | Socketable | 230VAC | DPDT (2 Form C) | 12 A | 250VAC, 250VDC - Max | - | 6.5 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
T9AS2L22-24RELAY GEN PURPOSE SPST 15A 24V |
0 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 15 A | 277VAC - Max | 4155VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
L115F11AH5VDCS1.5URELAY GEN PURPOSE SPST 50A 5V |
0 |
|
Veri Sayfası |
L115F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
RSB1A120M7HARMONY, INTERFACE PLUG-IN RELAY |
7 |
|
Veri Sayfası |
Harmony | Box | Active | Socketable | 220VAC | SPDT (1 Form C) | 12 A | 250VAC, 300VDC - Max | 3000VA, 3600W | 6.7 mA | Non Latching | - | Plug In | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
G2R-1 DC48RELAY GEN PURPOSE SPDT 10A 48V |
0 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
