Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F11C110VDCS6.9RELAY GEN PURPOSE SPDT 40A 110V |
0 |
|
Veri Sayfası |
J115F1 | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALZN5F05WRELAY GEN PURPOSE SPST 16A 5V |
0 |
|
Veri Sayfası |
ALZN | Tray | Last Time Buy | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
AZ2280-1A-277AEFRELAY GEN PURPOSE SPST 40A 277V |
13 |
|
Veri Sayfası |
AZ2280 | Tray | Active | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 11080VA, 840W | 18.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 235.4 VAC | 55.4 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
G6RL-1 DC9RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 24.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G2RL-1-E DC22RELAY GEN PURPOSE SPDT 16A 22V |
16 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 22VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 18 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 15.4 VDC | 2.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
JW1AFSN-DC48V-FRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
Veri Sayfası |
JW | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 11 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G6RL-14-ASI DC9RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 24.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
1393225-2RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
2-1393224-7RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 19.1 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
L114FL1CS9VDC.40RELAY GEN PURPOSE SPDT 20A 9V |
16 |
|
Veri Sayfası |
L114FL | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 44.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
ALFG1PF09RELAY GEN PURPOSE SPST 22A 9V |
0 |
|
Veri Sayfası |
ALFG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 155 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
AZ2280-1C-277AEFRELAY GEN PURPOSE SPDT 20A 277V |
2 |
|
Veri Sayfası |
AZ2280 | Tray | Active | Chassis Mount | 277VAC | SPDT (1 Form C) | 20 A | 277VAC, 28VDC - Max | 11080VA, 840W | 18.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 235.4 VAC | 55.4 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
4-1393224-8RELAY GEN PURPOSE SPDT 8A 21V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Active | Through Hole | 21VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 14.7 VDC | 2.1 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G2RL-1A4 DC9RELAY GEN PURPOSE SPST 12A 9V |
2 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
3-1416200-8RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
Veri Sayfası |
MSR, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
1393225-5RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

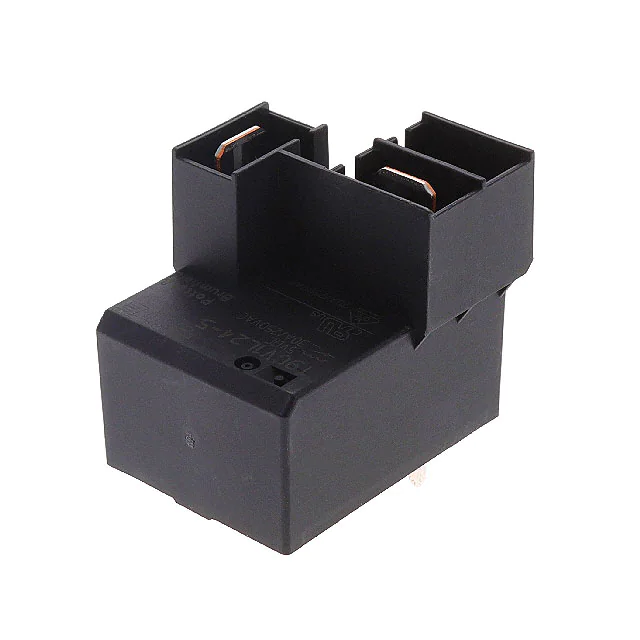

T9GV1L24-5RELAY GEN PURPOSE SPST 30A 5V |
23 |
|
Veri Sayfası |
T9G | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 180 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G2RL-14 DC48RELAY GEN PURPOSE SPDT 12A 48V |
25 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J1511CT24VDC.9RELAY GEN PURPOSE SPDT 20A 24V |
0 |
|
Veri Sayfası |
J151 | Tray | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
ADW1109HTWRELAY GEN PURPOSE SPST 16A 9V |
5 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.2 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
