Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1 DC5RELAY GEN PURPOSE SPDT 10A 5V |
738 |
|
Veri Sayfası |
G2R | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6C-1114P-US DC3RELAY GEN PURPOSE SPST 10A 3V |
1,642 |
|
Veri Sayfası |
G6C | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 67 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
PC113-2C-C1-120A-XRELAY GEN PURPOSE DPDT 12A 120V |
332 |
|
Veri Sayfası |
PC113 | Tray | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 26.4 mA | Non Latching | - | Solder Lug | - | Class F | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
T9VV1K15-12SRELAY GEN PURPOSE SPST 40A 12V |
3,386 |
|
Veri Sayfası |
T9V | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC - Nom | 11080VA | 188 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 0.8 VDC | 18 ms | 15 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AZDC007-1AE-24D50 AMP MINIATURE POWER RELAY |
369 |
|
Veri Sayfası |
AZDC007 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 65VDC - Max | 3250W | 66.7 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC | General Purpose | - | - |
|
T9AS5D22-5RELAY GEN PURPOSE SPDT 20A 5V |
1,002 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 200 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G2R-2A DC9RELAY GEN PURPOSE DPST 5A 9V |
126 |
|
Veri Sayfası |
G2R | Bulk | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 1.35 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RT424615RELAY GEN PURPOSE DPDT 8A 115V |
4,155 |
|
Veri Sayfası |
RT2, SCHRACK | Tube | Active | Through Hole | 115VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 86.3 VAC | 17.3 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J1512CT24VAC1.2RELAY GEN PURPOSE DPDT 20A 24V |
548 |
|
Veri Sayfası |
J151 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G2R-24 DC12RELAY GEN PURPOSE DPDT 4A 12V |
6,142 |
|
Veri Sayfası |
G2R | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
.jpg)
|
T9AV1L12-12RELAY GEN PURPOSE SPST 30A 12V |
389 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 77.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
RTD14024FRELAY GEN PURPOSE SPDT 16A 24V |
54,578 |
|
Veri Sayfası |
RT1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

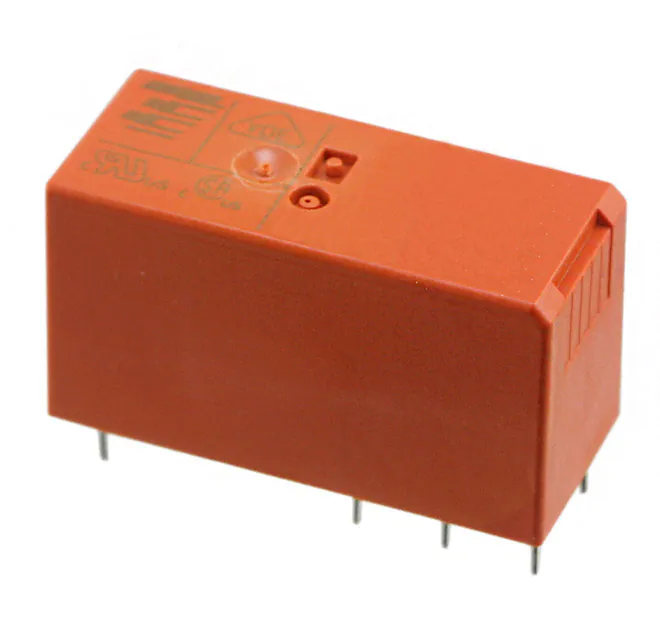

RT314F12RELAY GEN PURPOSE SPDT 16A 12V |
9,628 |
|
Veri Sayfası |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
T9AS1L12-12RELAY GEN PURPOSE SPST 30A 12V |
885 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
T9AV1D12-22RELAY GEN PURPOSE SPST 30A 22V |
820 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 22VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 45.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
JVN1A-12V-FRELAY GEN PURPOSE SPST 16A 12V |
365 |
|
Veri Sayfası |
JV-N | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
|
T9AS1D12-9RELAY GEN PURPOSE SPST 30A 9V |
207 |
|
Veri Sayfası |
T9A | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 111 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G6B-1114P-US-AP DC12RELAY GEN PURPOSE SPST 5A 12V |
104 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
G6B-1114P-FD-US-P6B DC24RELAY GEN PURPOSE SPST 5A 24V |
3,948 |
|
Veri Sayfası |
G6B | Bulk | Active | Socketable | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 8.3 mA | Non Latching | - | Plug In | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR | General Purpose | - | - |
|
|
G6B-1114P-US DC20RELAY GEN PURPOSE SPST 5A 20V |
947 |
|
Veri Sayfası |
G6B | Bulk | Active | Through Hole | 20VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14 VDC | 2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
