Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1512CF48VAC1.2RELAY GEN PURPOSE DPDT 20A 48V |
0 |
|
Veri Sayfası |
J151 | Tray | Active | Chassis Mount | 48VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 65.3 mA | Non Latching | - | Plug In | - | - | 38.4 VAC | 14.4 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
AZ165-2C-48ARELAY GEN PURPOSE DPDT 7A 48V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 48VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 25 mA | Non Latching | - | Plug In | - | - | 38.4 VAC | 14.4 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-2C-6ARELAY GENERAL PURPOSE DPDT 7A 6V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 6VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 200 mA | Non Latching | - | Plug In | - | - | 4.8 VAC | 1.8 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-2C-48DRELAY GEN PURPOSE DPDT 7A 48V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 18.5 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-2C-24ARELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 24VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 50 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-2C-12ARELAY GEN PURPOSE DPDT 7A 12V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 12VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 100 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-4C-12DRELAY GEN PURPOSE 4PDT 5A 12V |
0 |
|
Veri Sayfası |
AZ165 | Box | Active | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
2-1393219-3PE514036 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

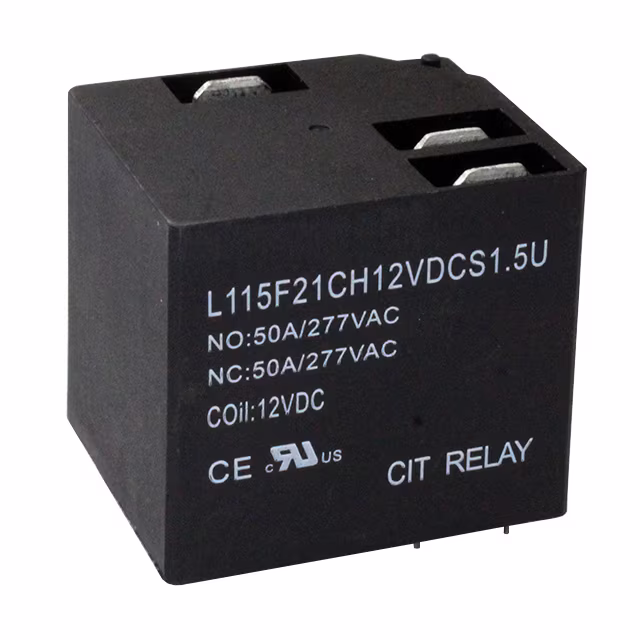

L115F21CH12VDCS1.5URELAY GEN PURPOSE SPDT 50A 12V |
0 |
|
Veri Sayfası |
L115F2 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
PC118-4C-120A-XRELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
Veri Sayfası |
PC118 | Tray | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 220VAC, 28VDC - Max | 1100VA, 140W | 26.4 mA | Non Latching | - | Solder Lug | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
JTN1S-PA-F-DC6VRELAY GEN PURPOSE SPDT 20A 6V |
8 |
|
Veri Sayfası |
JT-N | Bulk | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR | General Purpose | - | - |
|
PC113-2C-P-120A-XRELAY GEN PURPOSE DPDT 12A 120V |
0 |
|
Veri Sayfası |
PC113 | Tray | Active | Through Hole | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 26.4 mA | Non Latching | - | PC Pin | - | Class F | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
AZ21501P-1CH-12DERELAY GEN PURPOSE SPDT 30A 12V |
0 |
|
Veri Sayfası |
AZ21501P | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 75 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|
|
5-1393224-4RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
1-1393224-5RYA32009 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
|
3-1393224-0RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 19.1 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
6-1416200-1RELAY GEN PURPOSE SPST 10A 60V |
0 |
|
Veri Sayfası |
MSR, SCHRACK | Tube | Active | Through Hole | 60VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
2-1393225-0RELAY GEN PURPOSE SPDT 8A 19V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Bulk | Active | Through Hole | 19VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Fully | - | 13.3 VDC | 1.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
1393225-1RY551018 |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 18VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
7-1393224-8RELAY GEN PURPOSE SPST 8A 9V |
0 |
|
Veri Sayfası |
RY, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
