Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1984060000RCL314060W |
0 |
|
Veri Sayfası |
RCL | Box | Active | Through Hole | 60VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 7 mA | Non Latching | - | PC Pin | - | - | - | - | 8 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
RPM11JDPLUG-IN RELAY 250V 15A RPM +OPTI |
0 |
|
Veri Sayfası |
Harmony | Box | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 104.3 mA | Non Latching | Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
T90S5D12-110RELAY GEN PURPOSE SPDT 20A 110V |
0 |
|
Veri Sayfası |
T90 | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 4155VA | 8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
AZ2850-2A-24ARELAY GEN PURPOSE DPST 40A 24V |
0 |
|
Veri Sayfası |
AZ2850 | Box | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 166 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
G6B-1174P-FD-US-P6B DC5RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
- |
G6B | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
PT52AS15BRELAY GEN PURPOSE 4PDT 6A 115V |
0 |
|
Veri Sayfası |
PTH, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 8.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
|
RJ1V-A-D100RELAY PCB SPST-NO 12A 110VDC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | SPST-NO (1 Form A) | 12 A | 250VAC, 125VDC - Nom | - | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ1V-C-D100RELAY PCB SPDT 12A 110VDC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
1956024-7RELAY GEN PURPOSE SPDT 6A 60V |
0 |
|
Veri Sayfası |
SNR, SCHRACK | Tube | Active | Socketable | 60VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 2.9 mA | Non Latching | - | Plug In | Sealed - Fully | - | 42 VDC | 3 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
|
AZ2700-1A-6ATWFRELAY GEN PURPOSE SPST 30A 6V |
0 |
|
Veri Sayfası |
AZ2700 | Box | Active | Chassis Mount | 6VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 319 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 4.8 VAC | 0.9 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|

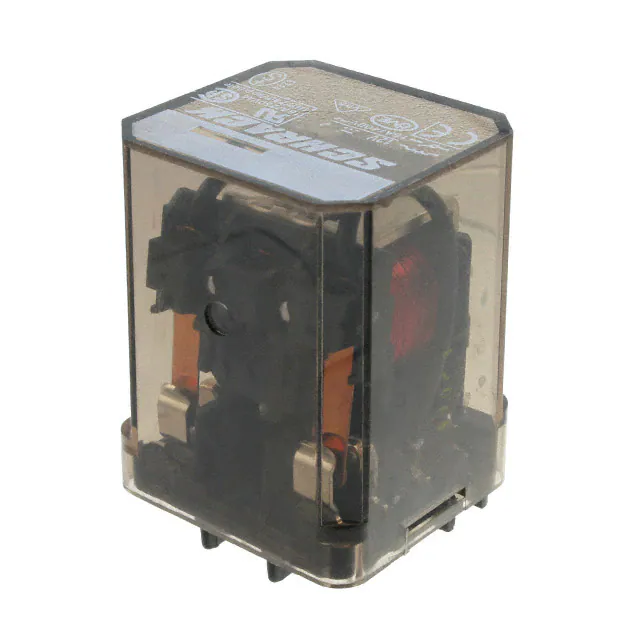

RM502012RELAY GEN PURPOSE DPST 16A 12V |
0 |
|
Veri Sayfası |
RM, SCHRACK | Tray | Obsolete | Socketable | 12VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 140 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
ADY12024RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
Veri Sayfası |
ADY | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
|
AZ2704-1A-24ATFRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Veri Sayfası |
AZ2704 | Box | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-1A-48ATFRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Veri Sayfası |
AZ2704 | Box | Active | Through Hole | 48VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class F | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
9-1415541-3RT135730 |
0 |
|
Veri Sayfası |
RT, SCHRACK | Tube | Active | Through Hole | 230VAC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 175.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ1S-C-D12RELAY PLUG-IN SPDT 12A 12VDC |
0 |
|
- |
RJ | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Nom | - | 44.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ1S-C-D5GP RELAY SPDT 5VDC COIL |
0 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 106 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
AZ2850-2A-220ARELAY GEN PURPOSE DPST 40A 220V |
0 |
|
Veri Sayfası |
AZ2850 | Box | Active | Through Hole | 220VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 18.2 mA | Non Latching | - | PC Pin | - | Class F | 176 VAC | 44 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2850-2AE-24DERELAY GEN PURPOSE DPST 40A 24V |
0 |
|
Veri Sayfası |
AZ2850 | Box | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 68.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
40.61.8.024.4000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Veri Sayfası |
40 | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 45 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 19.2 VAC | 4.8 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
