Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F11A9VDCS6.9RELAY GEN PURPOSE SPST 40A 9V |
277 |
|
Veri Sayfası |
J115F1 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALZ52B12WRELAY GEN PURPOSE SPST 16A 12V |
6,467 |
|
Veri Sayfası |
ALZ | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
J115F21A5VDCS.9RELAY GEN PURPOSE SPST 40A 5V |
746 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21AL5VDCS.9RELAY GEN PURPOSE SPST 40A 5V |
742 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALDP1F18WRELAY GEN PURPOSE SPST 5A 18V |
173 |
|
Veri Sayfası |
ALDP | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
ALDP118WRELAY GEN PURPOSE SPST 5A 18V |
1,736 |
|
Veri Sayfası |
ALDP | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 11.1 mA | Non Latching | - | PC Pin | - | Class E | 13.5 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
PR22-12V-400-1ARELAY GEN PURPOSE SPST 16A 12V |
941 |
|
Veri Sayfası |
PR22 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 120VDC - Max | 7040VA, 1920W | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR24-5V-900-1ARELAY GEN PURPOSE SPST 40A 5V |
878 |
|
Veri Sayfası |
PR24 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 250VAC, 28VDC - Max | 10000VA, 1120W | 179.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR24-12V-900-1ARELAY GEN PURPOSE SPST 40A 12V |
674 |
|
Veri Sayfası |
PR24 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 250VAC, 28VDC - Max | 10000VA, 1120W | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|

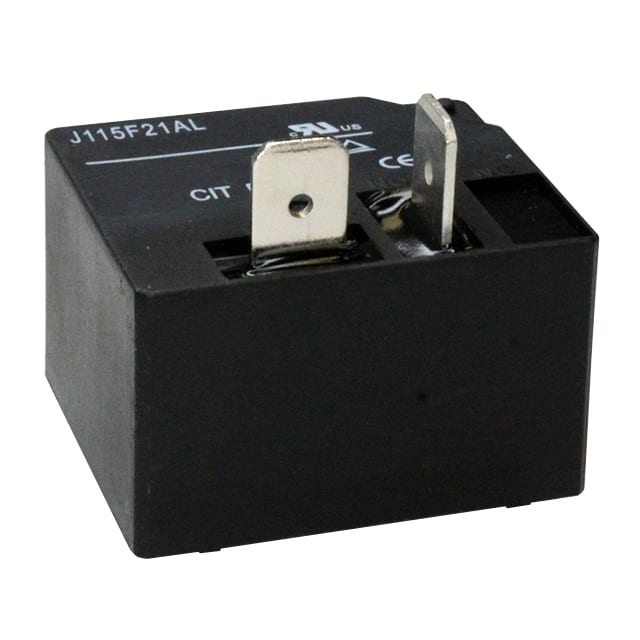

J115F21AL24VDCS.9RELAY GEN PURPOSE SPST 40A 24V |
258 |
|
Veri Sayfası |
J115F2 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
ALZ51B24RELAY GEN PURPOSE SPST 16A 24V |
9,017 |
|
Veri Sayfası |
ALZ | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
OJE-SS-112LMH2RELAY GEN PURPOSE SPST 8A 12V |
567 |
|
Veri Sayfası |
OJE, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
|
AZ2100-1AE-24DEFRELAY GEN PURPOSE SPST 40A 24V |
1,887 |
|
Veri Sayfası |
AZ2100 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
RZ01-1A4-D009RELAY GEN PURPOSE SPST 12A 9V |
310 |
|
Veri Sayfası |
RZ, SCHRACK | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
ALZ12B12RELAY GEN PURPOSE SPDT 16A 12V |
3,520 |
|
Veri Sayfası |
ALZ | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
J117F1AS5VDCRELAY GEN PURPOSE SPST 10A 5V |
401 |
|
Veri Sayfası |
J117F | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 400VAC, 150VDC - Max | 4000VA, 1500W | 43.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ2100-1CE-12DEFRELAY GEN PURPOSE SPDT 40A 12V |
341 |
|
Veri Sayfası |
AZ2100 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
AZ2100-1CE-24DEFRELAY GEN PURPOSE SPDT 40A 24V |
299 |
|
Veri Sayfası |
AZ2100 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
AZ2100-1C-12DEFRELAY GEN PURPOSE SPDT 30A 12V |
102 |
|
Veri Sayfası |
AZ2100 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 277VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
J114AF1CHS24VDC.53RELAY GEN PURPOSE SPDT 16A 24V |
1,218 |
|
Veri Sayfası |
J114AF | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 22.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
