Güç Röleleri, 2 Amper Üzeri
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paketlenme | Ürün Durumu | Montaj Türü | Bobin Voltajı | Kontak Formu | Kontak Derecesi (Akım) | Anahtar Voltajı | Yük - Maksimum Anahtar | Bobin Akımı | Bobin Türü | Özellikler | Sonlandırma Stili | Mühür Derecesi | Bobin Yalıtımı | Çalışması Gerekir Voltajı | Serbest bırakması Gerekir Voltajı | Çalışma Zamanı | Serbest Bırakma Zamanı | Çalışma Sıcaklığı | Kontak Malzemesi | Onay Ajansı | Röle Türü | Sınıf | Kalite Belirtimi |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6RL-1A4-ASI DC3RELAY GEN PURPOSE SPST 10A 3V |
2,224 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 73.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
J1512CT240VAC1.2RELAY GEN PURPOSE DPDT 20A 240V |
492 |
|
Veri Sayfası |
J151 | Tray | Active | Socketable | 240VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G5RL-K1A-E DC24RELAY GEN PURPOSE SPST 16A 24V |
146 |
|
Veri Sayfası |
G5RL-K | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 35 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
T9GV2L24-24RELAY GEN PURPOSE SPST 20A 24V |
1,557 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G5RL-1A-E-TV8 DC12RELAY GEN PURPOSE SPST 16A 12V |
1,030 |
|
Veri Sayfası |
G5RL | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
ADW1105HTWRELAY GEN PURPOSE SPST 16A 5V |
844 |
|
Veri Sayfası |
DW | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
7-1393243-3RELAY GEN PURPOSE DPDT 8A 60V |
2,923 |
|
Veri Sayfası |
RT2, SCHRACK | Tube | Active | Through Hole | 60VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 42 VDC | 6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6RL-1A-ASI DC24RELAY GEN PURPOSE SPST 10A 24V |
298 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
G2RL-14-E DC5RELAY GEN PURPOSE SPDT 16A 5V |
516 |
|
Veri Sayfası |
G2RL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|

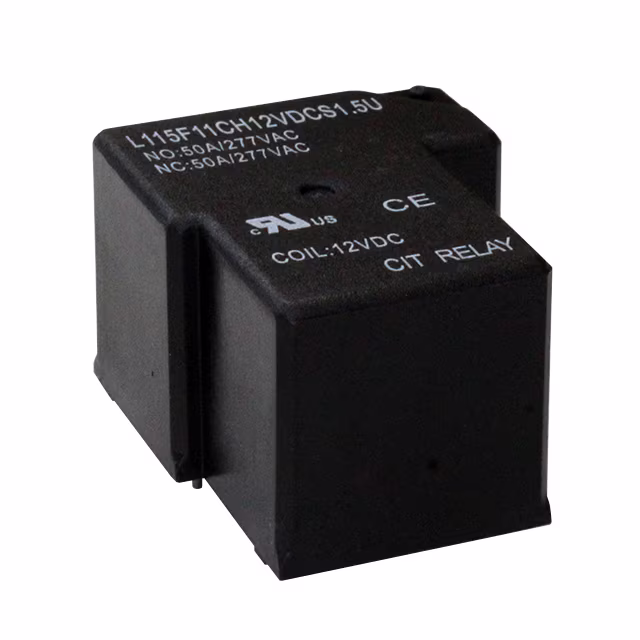

L115F11CH12VDCS1.5URELAY GEN PURPOSE SPDT 50A 12V |
221 |
|
Veri Sayfası |
L115F1 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
J1512AF12VDC.9DRELAY GEN PURPOSE DPST 20A 12V |
456 |
|
Veri Sayfası |
J151 | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G5CA-1A-TP-E DC5RELAY GEN PURPOSE SPST 15A 5V |
937 |
|
Veri Sayfası |
G5CA | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 40 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | Sealed - Flux Protection | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
DSP1A-DC24V-RRELAY GEN PURPOSE SPST 8A 24V |
729 |
|
Veri Sayfası |
DSP | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 12.5 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
G6RL-1-ASI DC12RELAY GEN PURPOSE SPDT 8A 12V |
500 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 18.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
|
G6RL-1-ASI DC3RELAY GEN PURPOSE SPDT 8A 3V |
392 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 73.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
1-1462039-7RELAY TELECOM DPDT 5A 9V |
6,976 |
|
Veri Sayfası |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 5 A | 250VAC, 220VDC - Max | 62.5VA, 60W | 15.6 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 6.75 VDC | 0.9 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | UR, VDE | Telecom | - | - |
|
|
RT134012FRELAY GEN PURPOSE SPST 12A 12V |
906 |
|
Veri Sayfası |
RT1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G5RL-1A-E-LN DC5RELAY GEN PURPOSE SPST 16A 5V |
464 |
|
Veri Sayfası |
G5RL | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
G6RL-14-ASI DC24RELAY GEN PURPOSE SPDT 8A 24V |
12,984 |
|
Veri Sayfası |
G6RL | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
T9GV5L24-15RELAY GEN PURPOSE SPDT 20A 15V |
306 |
|
Veri Sayfası |
T9G | Bulk | Active | Through Hole | 15VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 60 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
