DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ24T10050-NEC0DC DC CONVERTER 5V 50W |
0 |
|
Veri Sayfası |
SemiQ™ SQ24 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.30" L x 0.90" W x 0.27" H (58.4mm x 22.9mm x 7.0mm) | - | Enable, Active Low | - | - |
|
|
RCD20-110D15WDC DC CONVERTER +/-15V 20W |
10 |
|
Veri Sayfası |
RCD20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CB, CE, cURus | 62368-1 |
|
|
RCD20-110D12WDC DC CONVERTER +/-12V 20W |
10 |
|
Veri Sayfası |
RCD20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CB, CE, cURus | 62368-1 |
|
|
RCD20-110D24WDC DC CONVERTER +/-24V 20W |
10 |
|
Veri Sayfası |
RCD20W (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CB, CE, cURus | 62368-1 |
|
|
VCF4824QBO-400WHR3-NISOLATED MODULE DC DC CONVERTER1 |
19 |
|
Veri Sayfası |
VCF48_QBO-400WHR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
NDM2Z-50HT-A-001DC DC CONVERTER 0.6-3.3V |
0 |
|
Veri Sayfası |
Novum® NDM2Z | 20-DIP Module | Bulk | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 50A | - | - | ITE (Commercial) | Digital | -40°C ~ 125°C | 94.6% | - | - | Through Hole | 1.22" L x 0.79" W x 0.32" H (30.9mm x 20.0mm x 8.2mm) | - | - | - | - |
|
|
75QBRW4_11024S3DC-DC INDUSTRIAL |
5 |
|
Veri Sayfası |
75QBRW4_3 (75W) | Quarter Brick | Tube | Obsolete | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 3.125A | 75 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | CE | - |
|
|
VCF4824QBO-400WFR3-NISOLATED MODULE DC DC CONVERTER1 |
19 |
|
Veri Sayfası |
VCF48_QBO-400WFR3-N (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.44" L x 2.20" W x 0.58" H (62.0mm x 56.0mm x 14.7mm) | Quarter Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
SFS302412CDC DC CONVERTER 12V |
12 |
|
Veri Sayfası |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
SFS304815CDC DC CONVERTER 15V 30W |
8 |
|
Veri Sayfası |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
SFS302405CDC DC CONVERTER 5V |
5 |
|
Veri Sayfası |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
RCD30-48S12W-AISOLATED / 30W/ VOUT:12 |
13 |
|
Veri Sayfası |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
RCD30-24D12W-AISOLATED / 30W/ VOUT:12 |
3 |
|
Veri Sayfası |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
RCD30-24D24W-AISOLATED / 30W/ VOUT:24 |
2 |
|
Veri Sayfası |
RCD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 625mA, 625mA | 30 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | CB, CE, cURus, UKCA | 62368-1 |
|
|
VYC30W-Q24-S12-HDC DC CONVERTER 12V 30W |
0 |
|
Veri Sayfası |
VYC30W (30W) | 7-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.82" W x 0.91" H (50.8mm x 46.2mm x 23.0mm) | - | Enable, Active High | - | - |
|
|
SQ48S15033-NS00GDC DC CONVERTER 3.3V 50W |
0 |
|
Veri Sayfası |
SemiQ™ SQ48 (50W) | 8-SMD Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 15A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Surface Mount | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active Low | - | - |
|

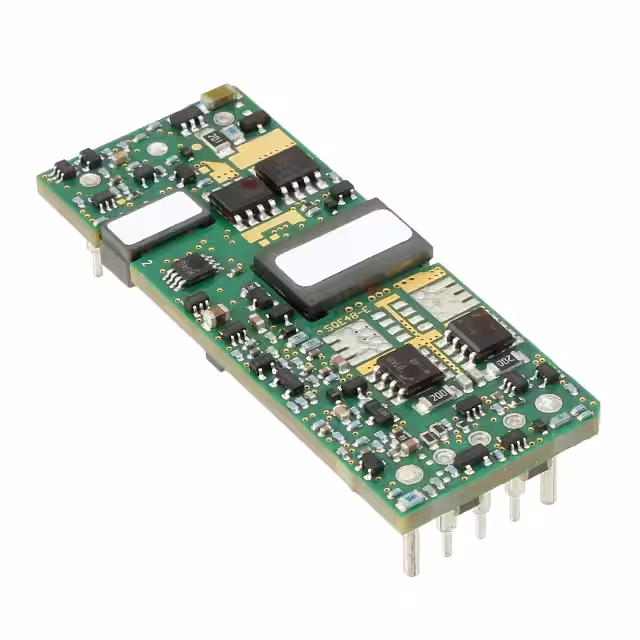

SQE48T20033-NGB0GDC DC CONVERTER 3.3V 66W |
0 |
|
Veri Sayfası |
SemiQ™ SQE48T | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm) | - | Enable, Active Low | - | - |
|
EBE4120N022N76DC DC CONVERTER 12V 264W |
14 |
|
Veri Sayfası |
EBE | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 22A | 264 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.2mm) | Eighth Brick | Enable, Active Low | cURus | - |
|
|
EED40-24D12WDC DC CONVERTER +/-12V 40W |
10 |
|
Veri Sayfası |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 1.666A, 1.666A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | - |
|
|
EED40-24S05WDC DC CONVERTER 5V 40W |
10 |
|
Veri Sayfası |
EED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | - |
