DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATMV12VPN40V100MA28W Isolated DC-DC Power Module |
3 |
|
Veri Sayfası |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 2 | 10V | 18V | 40V | -40V | - | - | 100mA, 100mA | 8 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
|
ATMV24V400V10MA14W Isolated DC-DC Power Module |
2 |
|
Veri Sayfası |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 18V | 36V | 400V | - | - | - | 10mA | 4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
|
RED40-24S15WDC DC CONVERTER 15V 40W |
20 |
|
Veri Sayfası |
RED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2.666A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 105°C (With Derating) | 93% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
|
RED40-110S24WDC DC CONVERTER 24V 40W |
10 |
|
Veri Sayfası |
RED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 1.666A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
|
RED40-110S15WDC DC CONVERTER 15V 40W |
9 |
|
Veri Sayfası |
RED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 15V | - | - | - | 2.666A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
|
RED40-24S24WDC DC CONVERTER 24V 40W |
9 |
|
Veri Sayfası |
RED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.666A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
|
RED40-110S12WDC DC CONVERTER 12V 40W |
9 |
|
Veri Sayfası |
RED40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 3.333A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
|
AM50QB-11024SA30JZ50W DC/DC Converter |
2 |
|
Veri Sayfası |
AM50QB-JZ | Quarter Brick | Box | Obsolete | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 2.08A | 50 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
AM50QB-11024S-NZDC DC CONVERTER 24V 50W |
23 |
|
Veri Sayfası |
AM50QB-NZ (50W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 2.083A | 50 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.39" L x 1.54" W x 0.50" H (60.8mm x 39.2mm x 12.7mm) | - | - | CE | - |
|

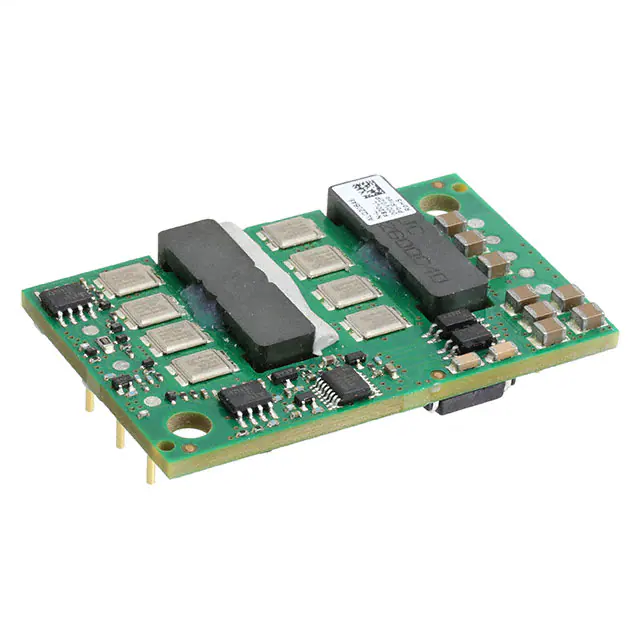

ALQ20B48N-LDC DC CONVERTER 12V 240W |
25 |
|
Veri Sayfası |
ALQ20B48 (240W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 20A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.28" L x 1.45" W x 3.36" H (58.0mm x 36.8mm x 9.1mm) | - | - | - | - |
|
75QBW4_4824S2.25ISOLATED MODULE DC DC CONVERTERS |
23 |
|
Veri Sayfası |
75QBW4_2.25 (75W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.13A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
75QBW4_4848S2.25ISOLATED MODULE DC DC CONVERTERS |
10 |
|
Veri Sayfası |
75QBW4_2.25 (75W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 1.56A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
75QBW4_4815S2.25ISOLATED MODULE DC DC CONVERTERS |
5 |
|
Veri Sayfası |
75QBW4_2.25 (75W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 5A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
75QBW4_4812S2.25ISOLATED MODULE DC DC CONVERTERS |
4 |
|
Veri Sayfası |
75QBW4_2.25 (75W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
|
75QBW4_4805S2.25ISOLATED MODULE DC DC CONVERTERS |
2 |
|
Veri Sayfası |
75QBW4_2.25 (75W) | Quarter Brick | Retail Package | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | - | - |
|
PRQ75W-Q48-S24-B-DDC-DC ISOLATED, 75 W, 18~75 VDC |
7 |
|
Veri Sayfası |
PRQ75W-D (75W) | Quarter Brick | Bag | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.13A | 75 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.6mm) | Quarter Brick | - | CE | 62368-1 |
|
RP40-4815DGWDC DC CONVERTER +/-15V 40W |
4 |
|
Veri Sayfası |
POWERLINE RP40-GW (40W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1.33A, 1.33A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 55°C | 86% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
CQB60W-110S48NDC DC CONVERTER 48V 60W |
22 |
|
Veri Sayfası |
CQB60W-110S (60W) | Module | Tray | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active Low | CB, CE, cURus | 50155; 60950-1 |
|
|
CQB60W-110S48DC DC CONVERTER 48V 60W |
10 |
|
Veri Sayfası |
CQB60W-110S (60W) | Module | Tray | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 |
|
JWL4048S3V3DC DC CONVERTER 3.3V 40W |
19 |
|
Veri Sayfası |
JWL (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
