DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRQ100W-Q48-S12-DDC DC CONVERTER 12V 100W |
7 |
|
Veri Sayfası |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | CE | - |
|
IRQ-24/4.2-T110PVF-CDC DC CONVERTER 24V 100W |
25 |
|
Veri Sayfası |
IRQ (100W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 57.6V | 160V | 24V | - | - | - | 4.2A | 100 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88.2% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|

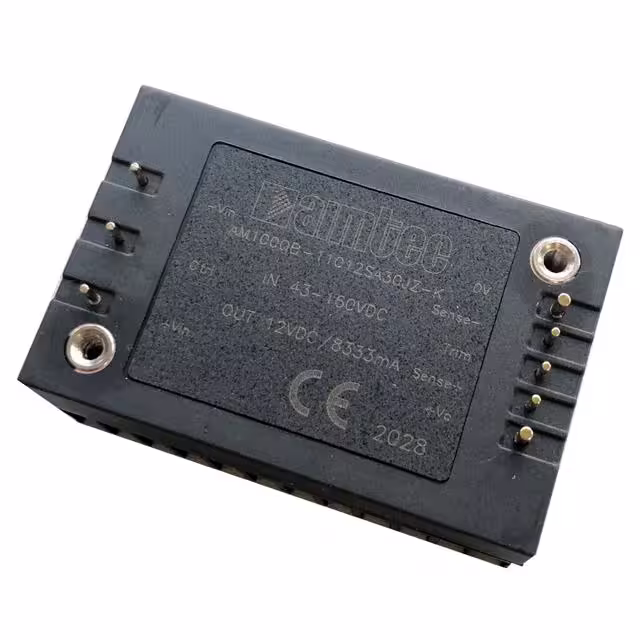

AM100QB-11012SA30JZ-K-BDC DC CONVERTER 12V 100W |
4 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 8.333A | 100 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.54" W x 1.21" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11003SA30JZ-K-BDC DC CONVERTER 3.3V 75W |
3 |
|
Veri Sayfası |
AM100QB-JZ (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 22.72A | 75 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.39" L x 1.54" W x 1.21" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11048SA30JZ-K-BDC DC CONVERTER 48V 100W |
3 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 2.083A | 100 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 1.21" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
|
AM100QB-11005SA30JZ-K-BDC DC CONVERTER 5V 100W |
2 |
|
Veri Sayfası |
AM100QB-JZ (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 20A | 100 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.39" L x 1.54" W x 1.21" H (60.8mm x 39.2mm x 27.8mm) | Quarter Brick | - | - | - |
|
RED60-48D15WDC DC CONVERTER +/-15V 60W |
10 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 2A, 2A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
RED60-48D12WDC DC CONVERTER +/-12V 60W |
10 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
RED60-48D24WDC DC CONVERTER +/-24V 60W |
10 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
RED60-110D12WDC DC CONVERTER +/-12V 60W |
10 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
RED60-110D24WDC DC CONVERTER +/-24V 60W |
9 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
RED60-110D15WDC DC CONVERTER +/-15V 60W |
8 |
|
Veri Sayfası |
RED60W (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 15V | -15V | - | - | 2A, 2A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 62368-1 |
|
|
HAE75-24S12WDC DC CONVERTER 12V 76W |
6 |
|
Veri Sayfası |
HAE75W (75W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.3A | 76 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | - |
|
|
HAE75-24S05WDC DC CONVERTER 5V 75W |
5 |
|
Veri Sayfası |
HAE75W (75W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 15A | 75 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | - |
|
|
HAE75-48S24WDC DC CONVERTER 24V 77W |
5 |
|
Veri Sayfası |
HAE75W (75W) | Half Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.2A | 77 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
|
HAE75-24S24WDC DC CONVERTER 24V 77W |
5 |
|
Veri Sayfası |
HAE75W (75W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 3.2A | 77 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
|
HAE75-48S12WDC DC CONVERTER 12V 76W |
4 |
|
Veri Sayfası |
HAE75W (75W) | Half Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.3A | 76 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
RCQ7572S05DC DC CONVERTER 5V 75W |
15 |
|
Veri Sayfası |
RCQ (50W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 43V | 101V | 5V | - | - | - | 15A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 35°C | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | 62368-1 |
|
|
RCQ75110S15DC DC CONVERTER 15V 75W |
6 |
|
Veri Sayfası |
RCQ (50W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 66V | 160V | 15V | - | - | - | 5A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 35°C | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | 62368-1 |
|
RQB-100Y54CDC-DC,14-160V INPUT, 54V/1.85A O |
14 |
|
Veri Sayfası |
RQB-100Y | Quarter Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm) | Quarter Brick | - | cCSAus, CE | 62368-1 |
