DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS6-1205DDC DC CONVERTER +/-5V 6W |
0 |
|
Veri Sayfası |
ECONOLINE RS6 (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
CCG3-48-05SFDC DC CONVERTER 5V 3W |
2 |
|
Veri Sayfası |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
MGFS32412DC DC CONVERTER 12V 3W |
1 |
|
Veri Sayfası |
MGFS (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|
RV-1205SDC DC CONVERTER 5V 2W |
5 |
|
Veri Sayfası |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
SUS30505BDC DC CONVERTER 5V |
3 |
|
Veri Sayfası |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
LMO78_1205-3.0NON-ISOLATED POL MODULE DC DC CO |
1 |
|
Veri Sayfası |
LMO78_3.0 | 5-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.59 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.37" L x 0.24" W x 0.61" H (9.4mm x 6.0mm x 15.5mm) | - | - | - | - |
|
TMR 4-2423WI4 WATT DC/DC CONVERTER, INDUSTRI |
5 |
|
Veri Sayfası |
TMR 4WI (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 133mA, 133mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|
RUZ-050505DC DC CONVERTER 2X5V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RUZ (2W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | 5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
CC6-4812DF-EDC DC CNVRTR +/-12V TO +/-15V 6W |
0 |
|
Veri Sayfası |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 12 ~ 15V | -12 ~ -15V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-4812SF-EDC DC CONVERTER 12-15V 6W |
0 |
|
Veri Sayfası |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 12 ~ 15V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC6-1203SR-EDC DC CONVERTER 3.3V 6W |
0 |
|
Veri Sayfası |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
TMR 3-2411WIEDC DC CONVERTER 5V 3W |
5 |
|
Veri Sayfası |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
EC4AB23HDC DC CONVERTER 15V 6W |
5 |
|
Veri Sayfası |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CE, cURus | - |
|
URA4805YMD-10WR3DC DC CONVERTER +/-5V 10W |
0 |
|
Veri Sayfası |
URA4805YMD-10WR3 (10W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CB, CE, cURus | - |
|
RS-053.3SDC DC CONVERTER 3.3V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
CCG3-24-12DRDC DC CONVERTER +/-12V 3.12W |
5 |
|
Veri Sayfası |
CCG1R5-10 (3W) | 6-SMD Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
.jpg)
|
REC3-0505SR/H1DC DC CONVERTER 5V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 4.25V | 5.75V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 65% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
.JPG)
|

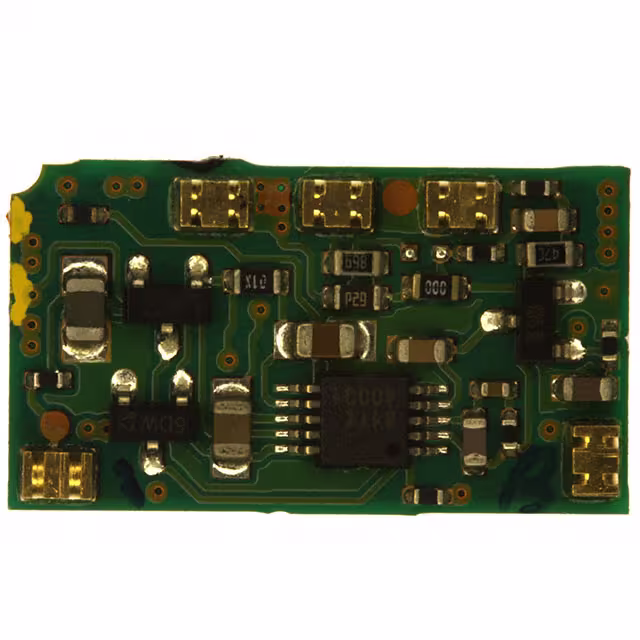

SMT05E-05W3V3JDC DC CONVERTER 0.8-3.6V 8W |
2 |
|
Veri Sayfası |
SMT05E (16W) | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.8 ~ 3.6V | - | - | - | 5A | 8 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm) | - | - | - | - |
|
SUCS1R52405BDC DC CONVERTER 5V 1.5W |
0 |
|
Veri Sayfası |
SUCS (1.5W) | 5-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
MGJ3T24150505MC-R7DC DC CONVERTER 15V -10V 3W |
0 |
|
Veri Sayfası |
MGJ3 (3W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 18V | 36V | 15V | -10V | - | - | 120mA, 120mA | 3 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 81% | - | - | Surface Mount | 0.91" L x 0.89" W x 0.58" H (23.0mm x 22.6mm x 14.7mm) | - | - | - | - |
