DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCG30-48-15SDC DC CONVERTER 15V 30W |
0 |
|
Veri Sayfası |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
SKMW20G-12DC DC CONVERTER 12V 20W |
2 |
|
Veri Sayfası |
SKMW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TVN 3-0921DC DC CONVERTER +/-5V 3W |
5 |
|
Veri Sayfası |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TVN 3-2419DC DC CONVERTER 9V 3W |
5 |
|
Veri Sayfası |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 333mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
TVN 3-2412DC DC CONVERTER 12V 3W |
0 |
|
Veri Sayfası |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|

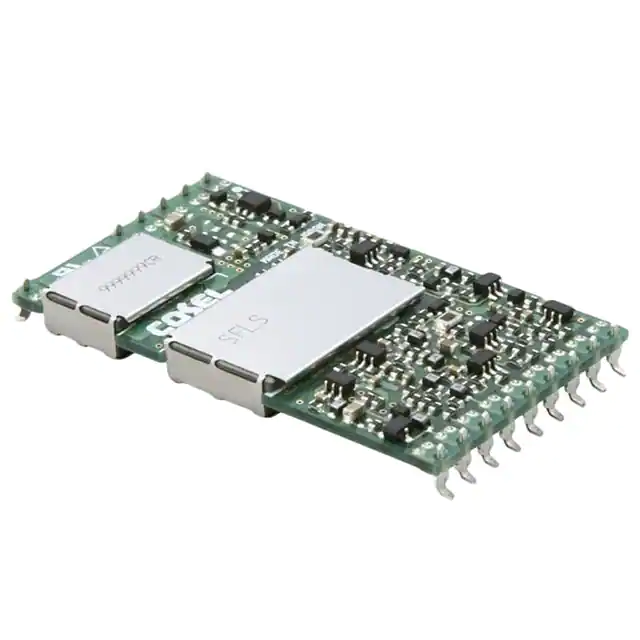

SFLS154805BDC DC CONVERTER 5V 15W |
3 |
|
Veri Sayfası |
SFLS (15W) | 18-SMD Module, 15 Leads | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Surface Mount | 1.52" L x 0.88" W x 0.17" H (38.7mm x 22.4mm x 4.2mm) | - | - | - | - |
|
TMR 12-1223WIULTRA COMPACT 12 WATT DC/DC IN S |
1 |
|
Veri Sayfası |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
DKMW20F-12DC DC CONVERTER +/-12V 20W |
0 |
|
Veri Sayfası |
DKMW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 830mA, 830mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
SUW101212BDC DC CONVERTER +/-12V 24V 11W |
3 |
|
Veri Sayfası |
SUW (10W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 450mA, 450mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 1.54" L x 0.83" W x 0.26" H (39.2mm x 21.0mm x 6.5mm) | - | - | - | - |
|
TDR 3-1222WISMDC DC CONVERTER +/-12V 3W |
0 |
|
Veri Sayfası |
TDR 3WISM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
THL 15-2410WIDC DC CONVERTER 3.3V 11W |
0 |
|
Veri Sayfası |
THL 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3.4A | 11 W | 1.8 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 70°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CB | - |
|
|
THL 15-4822WIDC DC CONVERTER +/-12V 15W |
0 |
|
Veri Sayfası |
THL 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.8 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 70°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CB | - |
|
SUS10123R3CDC DC CONVERTER 3.3V 8.6W |
2 |
|
Veri Sayfası |
SUS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.6A | 8.6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.54" L x 0.83" W x 0.26" H (39.2mm x 21.0mm x 6.5mm) | - | - | - | - |
|
EC5BU-12S05DC DC CONVERTER 5V 15W |
3 |
|
Veri Sayfası |
EC5BU (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
SUCS10243R3CDC DC CONVERTER 3.3V |
5 |
|
Veri Sayfası |
SUCS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2.6A | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
SUCS100505BDC DC CONVERTER 5V 10W |
2 |
|
Veri Sayfası |
SUCS (10W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
|
|
SUCS10053R3CDC DC CONVERTER 3.3V |
1 |
|
Veri Sayfası |
SUCS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 2.6A | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm) | - | - | - | - |
.jpg)
|
REC5-0515DRW/H6/CDC DC CONVERTER +/-15V 5W |
0 |
|
Veri Sayfası |
ECONOLINE REC5 (5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 75% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC4BW05DC DC CONVERTER +/-15V 10W |
0 |
|
Veri Sayfası |
EC4BW (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|
|
TVN 3-1223DC DC CONVERTER +/-15V 3W |
5 |
|
Veri Sayfası |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
