DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F0509LT-1WR3ISOLATED MODULE DC DC CONVERTER |
24 |
|
Veri Sayfası |
F0509LT-1WR3 (1W) | 12-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 62368-1 |
|
|
F0515LT-1WR3ISOLATED MODULE DC DC CONVERTER |
22 |
|
Veri Sayfası |
F05_LT-1WR3 (1W) | 12-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 62368-1 |
|
AM1D-1205SZDC DC CONVERTER 5V 1W |
4 |
|
Veri Sayfası |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
PEME1-S5-D12-SDC DC CONVERTER +/-12V 1W |
0 |
|
Veri Sayfası |
PEME1-S (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
|
|
PEME1-S5-D9-SDC DC CONVERTER +/-9V 1W |
0 |
|
Veri Sayfası |
PEME1-S (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
|
|
MID06W0505AGY-3R-Z0.6W, REGULATED, 3KVDC ISOLATED |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 120mA | 600 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 125°C | 83% | - | - | Surface Mount | 0.41" L x 0.30" W x 0.10" H (10.4mm x 7.5mm x 2.5mm) | 16-SOIC | - | - | - |
|
|
MID06W0503AGY-3S-Z0.6W, 3KVDC, SEMI-REGULATED ISOL |
0 |
|
Veri Sayfası |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 181mA | 600 mW | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C (With Derating) | 38% | - | - | Surface Mount | 0.41" L x 0.10" W x 0.07" H (10.4mm x 7.5mm x 2.5mm) | 16-SOIC | - | CB | 62368-1 |
|
E0509S-1WR3DC DC CONVERTER +/-9V 1W |
20 |
|
Veri Sayfası |
E_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
LMT78_05-0.5RDC-DC POL |
0 |
|
Veri Sayfası |
LMT78_0.5R | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | - | CE, cURus | 62368-1 |
|
TPS82692SIPRDC DC CONVERTER 2.2V 2W |
0 |
|
Veri Sayfası |
MicroSip™ | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.3V | 4.8V | 2.2V | - | - | - | 800mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm) | 8-uSIP (2.9x2.3) | - | - | - |
|
|
TPS826951SIPRDC DC CONVERTER 2.5V 2W |
0 |
|
Veri Sayfası |
MicroSip™ | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.3V | 4.8V | 2.5V | - | - | - | 800mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm) | 8-uSIP (2.9x2.3) | - | - | - |
|
VX7803-500DC DC CONVERTER 3.3V 1.65W |
0 |
|
Veri Sayfası |
VX78-500 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
VX78039-500DC DC CONVERTER 9V 4.5W |
0 |
|
Veri Sayfası |
VX78-500 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 12V | 36V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
VX7815-500DC DC CONVERTER 15V 7.5W |
0 |
|
Veri Sayfası |
VX78-500 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 19V | 36V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

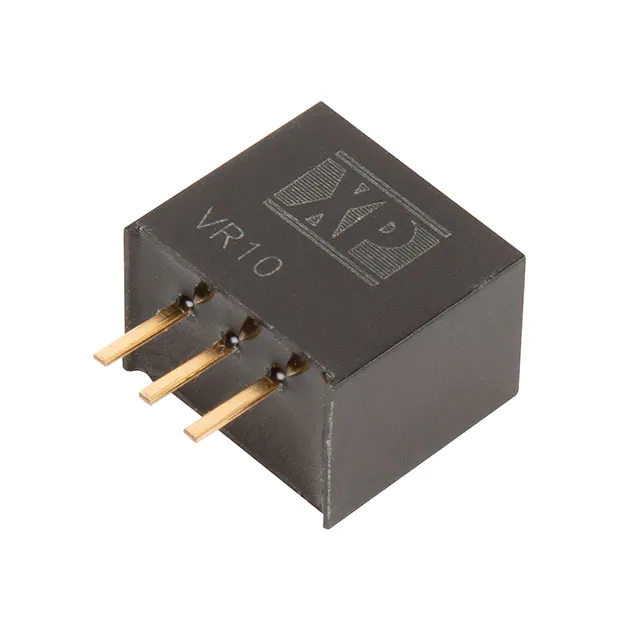

VR10S12DC DC CONVERTER 12V |
0 |
|
Veri Sayfası |
VR10 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 16V | 36V | 12V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - |
|

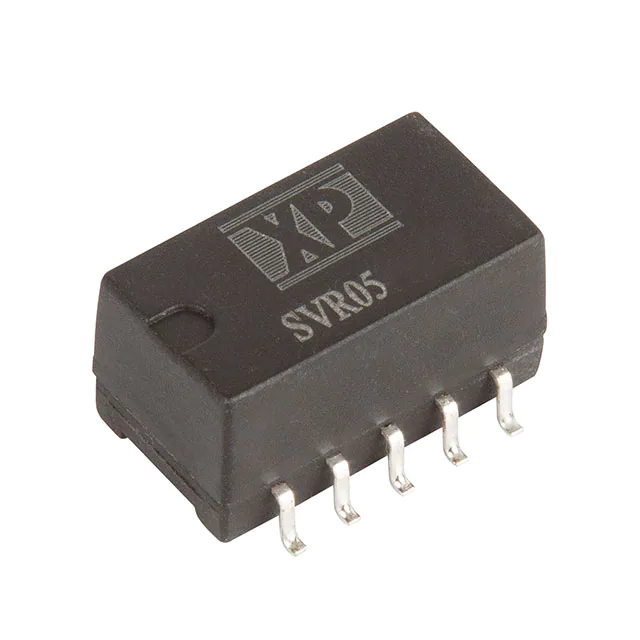

SVR05S05DC DC CONVERTER 5V |
0 |
|
Veri Sayfası |
SVR05 | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | - | - | - |
|
|
VR10S05DC DC CONVERTER 5V |
0 |
|
Veri Sayfası |
VR10 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 8V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - |
|
|
SVR05S3V3DC DC CONVERTER 3.3V |
0 |
|
Veri Sayfası |
SVR05 | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | - | - | - |
|
|
IAB0105D3V3DC DC CONVERTER DUAL 3.3V 1W |
3 |
|
Veri Sayfası |
IAB01 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, UKCA, UL | 62368-1 |
|
1S7A_0512S1.5UPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Veri Sayfası |
1S7A_1.5UP (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
