DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPA150E-4848SEW/PDC DC CONVERTER 48V 144W |
57 |
|
Veri Sayfası |
RPA150E (150W) | Eighth Brick | Box | Active | Isolated Module | 1 | 9V | 60V | 48V | - | - | - | 3A | 144 W | 3 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) | Eighth Brick | Enable, Active High | cURus | 62368-1 |
|

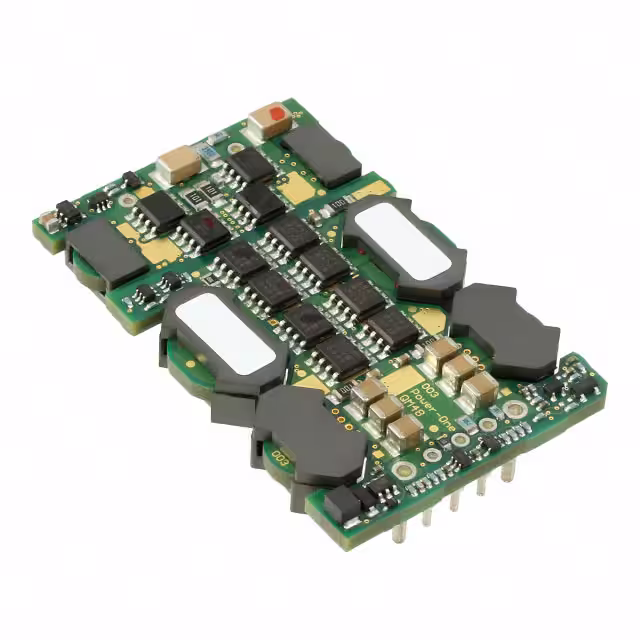

QM48T25050-NDB0GDC DC CONVERTER 5V 125W |
165 |
|
Veri Sayfası |
QM | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 25A | 125 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
40IMX15-12-12-8GDC DC CONVERTER 12V 12V 15W |
38 |
|
Veri Sayfası |
Melcher IMX15 (15W) | 17-DIP Module, 11 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 12V | 12V | - | - | 700mA, 700mA | 15 W | 2.1 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
TEN 40-7211WIRDC DC CONVERTER 5V 40W |
47 |
|
Veri Sayfası |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
Q10N-5DC DC CONVERTER -1000V 500MW |
178 |
|
Veri Sayfası |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | -1000V | - | - | - | 500µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
|
Q10-12DC DC CONVERTER 1000V 500MW |
53 |
|
Veri Sayfası |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 1000V | - | - | - | 500µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
|
REM60-2412SW60W DC/DC-CONVERTER 'MEDLINE' 2" |
29 |
|
Veri Sayfası |
MEDLINE REM60-W (60W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote Sense | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | cURus | 60601-1; 62368-1 |
|
A15N-5DC DC CONVERTER -1500V 1W |
106 |
|
Veri Sayfası |
XP EMCO - A (1W) | 5-DIP Module | Tube | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | -1500V | - | - | - | 670µA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
70IMX7-05-05-8GDC DC CONVERTER 5V 5V 7W |
70 |
|
Veri Sayfası |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 40V | 121V | 5V | 5V | - | - | 700mA, 700mA | 7 W | 2.1 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
LTM4678IYDC DC CNVRTR 0.5-3.3V 0.5-3.3V |
80 |
|
Veri Sayfası |
LTM®, uModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module, Digital | 2 | 5.75V | 16V | 0.5 ~ 3.3V | 0.5 ~ 3.3V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.23" H (16.0mm x 16.0mm x 6.3mm) | 144-BGA (16x16) | - | - | - |
|
VHB100W-Q24-S48DC DC CONVERTER 48V 100W |
555 |
|
Veri Sayfası |
VHB100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 2.08A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 85% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | UL | 60950-1 |
|
|
REC300H-2415SW300W DC/DC-CONVERTER 'POWERLINE' |
26 |
|
Veri Sayfası |
ECONOLINE REC300H-W (300W) | Half Brick | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 20A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | - | - |
|

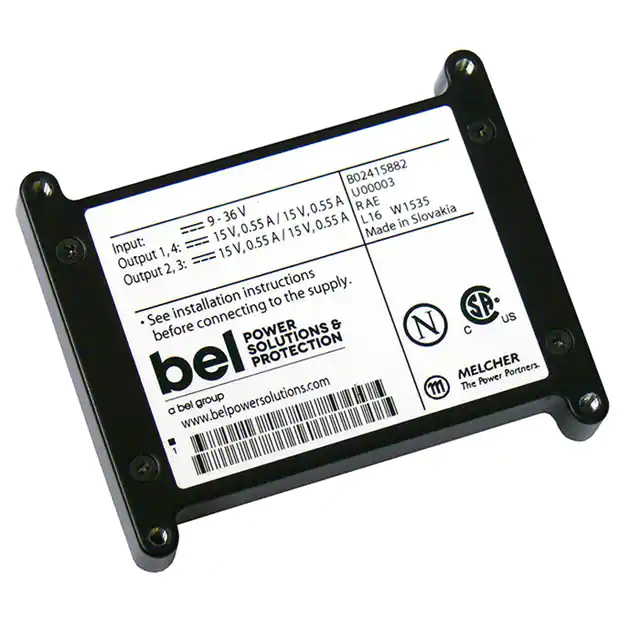

20IMX35D05D15-8GDC DC CONVERTER 5V 15V 15V 35W |
62 |
|
Veri Sayfası |
Melcher IMX35 (35W) | 19-DIP Module | Tube | Active | Isolated Module, Conformal Coated | 4 | 9V | 36V | 5V | 15V | 15V | - | 1.35A, 550mA, 550mA | 35 W | 1.5 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|
MTC3528S12DC DC CONVERTER 12V 35W |
98 |
|
Veri Sayfası |
MTC (35W) | 11-DIP Module | Box | Active | Isolated Module | 1 | 10V | 40V | 12V | - | - | - | 2.9A | 35 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.00" L x 1.10" W x 0.50" H (50.8mm x 27.9mm x 12.7mm) | - | Enable, Active High | - | - |
|
CHB200W12-72S24NDC DC CONVERTER 24V 200W |
29 |
|
Veri Sayfası |
CHB200W12 (200W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.4A | 200 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 50155; 62368-1 |
|
VHB200W-Q24-S5DC DC CONVERTER 5V 200W |
49 |
|
Veri Sayfası |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 10V | 36V | 5V | - | - | - | 40A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
VHB200W-Q24-S15DC DC CONVERTER 15V 200W |
48 |
|
Veri Sayfası |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 10V | 36V | 15V | - | - | - | 13.3A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 86% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | Half Brick | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
VHB200W-Q48-S24DC DC CONVERTER 24V 200W |
38 |
|
Veri Sayfası |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 8.3A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | - | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
AEQ5-100FL0.5HVPS,100VDC, 5V INPUT, 0.5 WATT, |
62 |
|
Veri Sayfası |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 4.5V | 5.5V | 100V | - | - | - | 5mA | 500 mW | 1.5 kV | ITE (Commercial) | Adjustable Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | Module | - | No | 62368-1 |
|
CFB600-48S12DC DC CONVERTER 12V 600W |
31 |
|
Veri Sayfası |
CFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Full Brick | Enable, Active Low | CE, cURus | 60950-1 |
