DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1D-1212SH40ZDC DC CONVERTER 12V 1W |
12 |
|
Veri Sayfası |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
PEM1-S15-S12-SDC DC CONVERTER 12V 1W |
1 |
|
Veri Sayfası |
PEM1-S (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | - | - |
|
0.75T8A_0515S1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Veri Sayfası |
0.75T8A_1.5RP (750mW) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 50mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
|
0.75T8A_0509S1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Veri Sayfası |
0.75T8A_1.5RP (750mW) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 83mA | 747 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
|
0.75T8A_0512S1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
- |
0.75T8A_1.5RP (750mW) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 62mA | 744 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
|
0.75T8A_0505S1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
- |
0.75T8A_1.5RP (750mW) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 150mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
|
0.75T8A_0503S1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Veri Sayfası |
0.75T8A_1.5RP (750mW) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 200mA | 660 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 68% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, cURus, UL | - |
|
AM2D-0507DZDC DC CONVERTER +/-7.2V 2W |
6 |
|
Veri Sayfası |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | -7.2 ~ 7.2V | -7.2V | - | - | 139mA, 139mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
RB-0515S/HDC DC CONVERTER 15V 1W |
5 |
|
Veri Sayfası |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
PEME2-S12-S12-SDC-DC 3KV ISOLATED, 2 W, 10.8~13 |
1 |
|
Veri Sayfası |
PEME2-S (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2.004 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
|
AM2S-2405SZDC DC CONVERTER 5V 2W |
0 |
|
Veri Sayfası |
AM2S-Z (2W) | 4-SIP Module | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - | |
|
AM2D-0518SH30ZDC DC CONVERTER 18V 2W |
0 |
|
Veri Sayfası |
AM2D-Z (2W) | 7-SIP Module | Active | Isolated Module | 1 | 4.5V | 5.5V | 18V | - | - | - | 111mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - | |
|
PDM1-S24-S15-SDC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
|
|
PDM1-S24-S9-SDC DC CONVERTER 9V 1W |
0 |
|
Veri Sayfası |
PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
ISE1215A-HDC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
ISE (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.28" H (12.7mm x 8.3mm x 7.0mm) | - | - | - | 61000 |
|
|
ISE1215A-H-TRDC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
ISE (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.28" H (12.7mm x 8.3mm x 7.0mm) | - | - | - | 61000 |
|

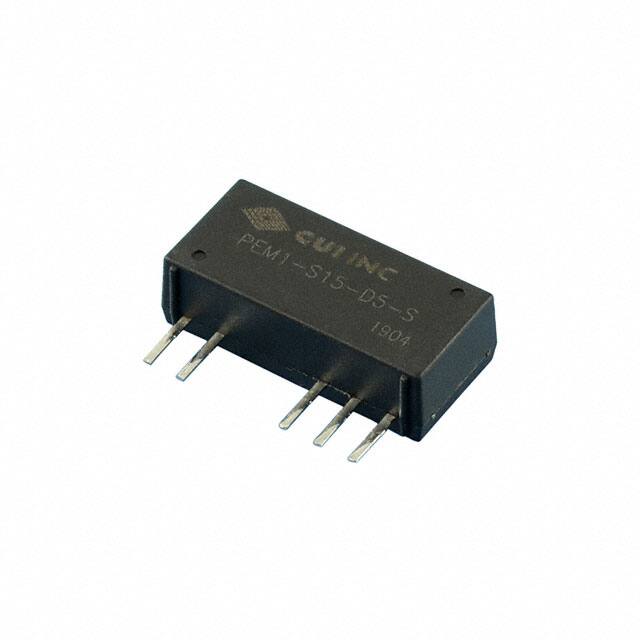

PEM1-S15-D5-SDC DC CONVERTER +/-5V 1W |
0 |
|
Veri Sayfası |
PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | - | - |
|
|
AM1LR-1215SH30JZ1W DC/DC Converter |
6 |
|
Veri Sayfası |
AM1LR-JZ | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
|
PEM1-S12-D3-SDC DC CONVERTER +/-3.3V 1W |
0 |
|
Veri Sayfası |
PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) | - | - | - | - |
|
1S7B_1205S4UPISOLATED MODULE DC DC CONVERTERS |
25 |
|
Veri Sayfası |
1S7B_4UP (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
