DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PES1-S24-S24-MDC DC CONVERTER 24V 1W |
0 |
|
Veri Sayfası |
PES1-M (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
MAXM17515ALI+TDC DC CONVERTER 0.75-3.6V |
0 |
|
- |
Himalaya | 29-SMD Module, Exposed Pad | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.75 ~ 3.6V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | - | - | - | - |
|

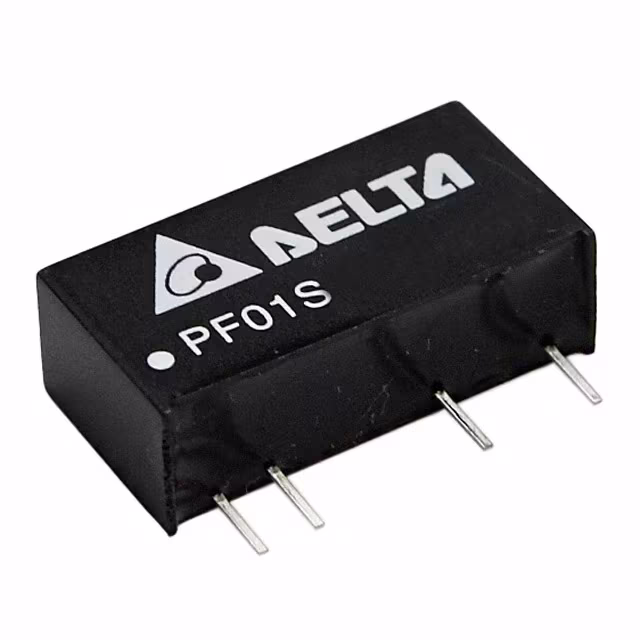

PF01S0505ADC DC CONVERTER 5V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S0509ADC DC CONVERTER 9V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S0512ADC DC CONVERTER 12V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S0515ADC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S1205ADC DC CONVERTER 5V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S1209ADC DC CONVERTER 9V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S1212ADC DC CONVERTER 12V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S1215ADC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S2405ADC DC CONVERTER 5V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S2409ADC DC CONVERTER 9V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 86.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S2412ADC DC CONVERTER 12V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
PF01S2415ADC DC CONVERTER 15V 1W |
0 |
|
Veri Sayfası |
PF01S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|

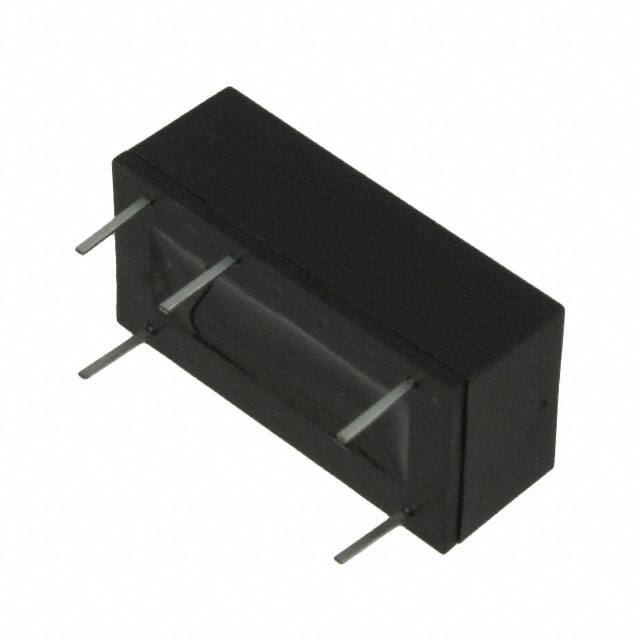

MEV1S2405DCDC DC CONVERTER 5V 1W |
10 |
|
Veri Sayfası |
MEV1 (1W) | 14-DIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm) | - | - | - | - |
|
AM1DS-0515DZDC DC CONVERTER +/-15V 1W |
6 |
|
Veri Sayfası |
AM1DS-Z (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33.33mA, 33.33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
AM1DS-1212DZDC DC CONVERTER +/-12V 1W |
6 |
|
Veri Sayfası |
AM1DS-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -12 ~ 12V | -12V | - | - | 41.67mA, 41.67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
MEV1S4812SCDC DC CONVERTER 12V 1W |
5 |
|
Veri Sayfası |
MEV1 (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
|
AM1DS-0515SZDC DC CONVERTER 15V 1W |
5 |
|
Veri Sayfası |
AM1DS-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66.7mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
AM1DS-1205SZDC DC CONVERTER 5V 1W |
5 |
|
Veri Sayfası |
AM1DS-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
