DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
REC3-1215SRW/H6/A/M/X2DC DC CONVERTER 15V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
REC5-2405SRW/H2/A/SMD/CTRLDC DC CONVERTER 5V 5W |
0 |
|
Veri Sayfası |
ECONOLINE REC5 (5W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C | 81% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
TSR 3-0533ADC DC CONVERTER 0.6-3.3V 10W |
0 |
|
Veri Sayfası |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 2.5V | 5.5V | 0.6 ~ 3.3V | - | - | - | 3A | 10 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.61" L x 0.37" W x 0.24" H (15.5mm x 9.4mm x 6.2mm) | - | - | - | - |
|
|
TDR 2-0522DC DC CONVERTER +/-12V 2W |
0 |
|
Veri Sayfası |
TDR 2 (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
|
TDR 2-1222DC DC CONVERTER +/-12V 2W |
0 |
|
Veri Sayfası |
TDR 2 (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
|
TDR 2-1223DC DC CONVERTER +/-15V 2W |
0 |
|
Veri Sayfası |
TDR 2 (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
|
TDR 2-4822DC DC CONVERTER +/-12V 2W |
0 |
|
Veri Sayfası |
TDR 2 (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
|
TDR 2-4823DC DC CONVERTER +/-15V 2W |
0 |
|
Veri Sayfası |
TDR 2 (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|

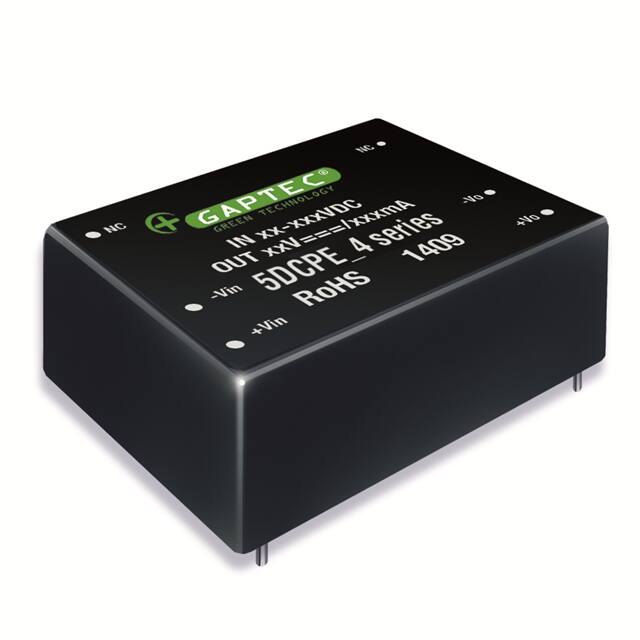

5DCPE_05S4ISOLATED MODULE DC DC CONVERTERS |
1 |
|
Veri Sayfası |
5DCPE_4 (5W) | 5-DIP Module | Retail Package | Obsolete | Isolated Module | 1 | 100V | 1000V | 5V | - | - | - | 1A | 5 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | - | - | CE | - |
|
|
EC4AW07HMSLOW POWER DC-DC I/P:9-36VDC O/P: |
0 |
|
- |
EC4AW (3.3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1A | 3.3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -25°C ~ 71°C | 80% | - | - | Surface Mount | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC4AW13HMSLOW POWER DC-DC I/P:18-72VDC O/P |
0 |
|
- |
EC4AW (6W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -25°C ~ 71°C | 86% | - | - | Surface Mount | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC4AW12HMSLOW POWER DC-DC I/P:18-72VDC O/P |
0 |
|
- |
EC4AW (6W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 470mA | 5.64 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -25°C ~ 71°C | 86% | - | - | Surface Mount | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC4AW17HMSLOW POWER DC-DC I/P:18-72VDC O/P |
0 |
|
- |
EC4AW (3.3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 3.3V | - | - | - | 1A | 3.3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -25°C ~ 71°C | 79% | - | - | Surface Mount | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) | - | Enable, Active High | CE | 62368-1 |
|
R24P209D/P/R8DC DC CONVERTER +/-9V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
10DAW4_4805D1.5DC-DC INDUSTRIAL |
0 |
|
Veri Sayfası |
10DAW4_1.5 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 72V | 5V | - | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
|
10DAW4_4815D1.5DC-DC INDUSTRIAL |
0 |
|
Veri Sayfası |
10DAW4_1.5 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 72V | 15V | - | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
|
10DAW4_2415D1.5DC-DC INDUSTRIAL |
0 |
|
Veri Sayfası |
10DAW4_1.5 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | - | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
|
10DAW4_2405D1.5DC-DC INDUSTRIAL |
0 |
|
Veri Sayfası |
10DAW4_1.5 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | - | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
|
REC3-1205SRW/H4/A/M/CTRL/X2DC DC CONVERTER 5V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
|
REC3-1209SRW/H4/A/M/CTRL/X2DC DC CONVERTER 9V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 330mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
