DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDN 5-0921WIDC DC CONVERTER +/-5V 5W |
0 |
|
Veri Sayfası |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 80% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
|
TDN 5-4822WIDC DC CONVERTER +/-12V 5W |
0 |
|
Veri Sayfası |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
|
TDN 5-4823WIDC DC CONVERTER +/-15V 5W |
0 |
|
Veri Sayfası |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 168mA, 168mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 84% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|

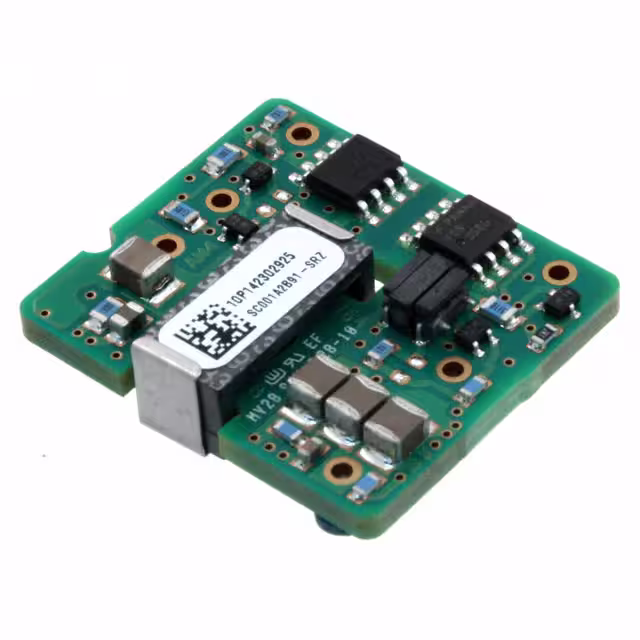

SC001A2B91-SRZDC DC CONVERTER 12V 14W |
0 |
|
Veri Sayfası |
SC001 | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.2A | 14 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
R24P212D/P/R8DC DC CONVERTER +/-12V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R24P205D/P/R8DC DC CONVERTER +/-5V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R24P215D/P/R8DC DC CONVERTER +/-15V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R24P23.3D/P/R8DC DC CONVERTER +/-3.3V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R15P212D/P/R8DC DC CONVERTER +/-12V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R15P209D/P/R8DC DC CONVERTER +/-9V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R15P215D/P/R8DC DC CONVERTER +/-15V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
R15P23.3D/P/R8DC DC CONVERTER +/-3.3V 2W |
0 |
|
Veri Sayfası |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 8 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
.jpg)
|
REC3-4805SRWZ/H2/A/SMD/CTRL-RDC DC CONVERTER 5V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
|
REC3-4809SRWZ/H2/A/SMD/CTRL-RDC DC CONVERTER 9V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 72V | 9V | - | - | - | 330mA | 3 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
|
REC3-4812SRWZ/H2/A/SMD/CTRL-RDC DC CONVERTER 12V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 72V | 12V | - | - | - | 250mA | 3 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
|
REC3-4815SRWZ/H2/A/SMD/CTRL-RDC DC CONVERTER 15V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 72V | 15V | - | - | - | 200mA | 3 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
|
REC3-483.3SRWZ/H2/A/SMD/CTRL-RDC DC CONVERTER 3.3V 3W |
0 |
|
Veri Sayfası |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 72V | 3.3V | - | - | - | 900mA | 3 W | 2 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) | - | Enable, Active Low | - | - |
|
PTH12020WAZDC DC CONVERTER 1.2-5.5V 99W |
0 |
|
Veri Sayfası |
PTH12020 (99W) | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 18A | 99 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|
NID30S24-05DC DC CONVERTER 5V 13W |
2 |
|
Veri Sayfası |
NID30 (30W) | 11-SIP Module | Box | Obsolete | Non-Isolated PoL Module | 1 | 20V | 53V | 5V | - | - | - | 2.5A | 13 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 65°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 0.42" W x 0.51" H (50.8mm x 10.7mm x 13.0mm) | - | - | - | - |
|
|
ISU0224D15DC DC CONVERTER +/-15V 2W |
0 |
|
Veri Sayfası |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | 0.75" L x 0.59" W x 0.33" H (19.1mm x 15.0mm x 8.5mm) | - | - | CE, UKCA, UL | 62368-1 |
