DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I7A12060A008V-0C1-RDC DC CONVERTER 0.8-8V 400W |
46 |
|
Veri Sayfası |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 18V | 0.8 ~ 8V | - | - | - | 60A | 480 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.50" H (36.8mm x 34.0mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
PYD20-72WD12DC DC CONVERTER +/-12V 20W |
35 |
|
Veri Sayfası |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
PYD20-72WD15DC DC CONVERTER +/-15V 20W |
32 |
|
Veri Sayfası |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
PYD20-72WS12DC DC CONVERTER 12V 20W |
27 |
|
Veri Sayfası |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 8.5V | 160V | 12V | - | - | - | 1.67A | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
JHM3012S1230W PCB 9-18VDC INPUT 2:1 MEDICA |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.5A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S1230W PCB 18-36VDC INPUT 2:1 MEDIC |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3012S0530W PCB 9-18VDC INPUT 2:1 MEDICA |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 6A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S1530W PCB 18-36VDC INPUT 2:1 MEDIC |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3012S1530W PCB 9-18VDC INPUT 2:1 MEDICA |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S0530W PCB 18-36VDC INPUT 2:1 MEDIC |
48 |
|
Veri Sayfası |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
TEN 40-4810WIEDC DC CONVERTER 3.3V 40W |
30 |
|
Veri Sayfası |
TEN 40WIE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 12.2A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
RP20-2415DFDC DC CONVERTER +/-15V 20W |
51 |
|
Veri Sayfası |
POWERLINE RP20-F (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
PTP20-48-S5DC-DC, ISOLATED, 15 W, 36~75 VDC |
54 |
|
Veri Sayfası |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 4A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-48-S12DC-DC, ISOLATED, 15 W, 36~75 VDC |
54 |
|
Veri Sayfası |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.67A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-48-S24DC-DC, ISOLATED, 15 W, 36~75 VDC |
52 |
|
Veri Sayfası |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 840mA | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
REC30-2412SZDC DC CONVERTER 12V 30W |
105 |
|
Veri Sayfası |
ECONOLINE REC30-Z (30W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C | 88.5% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
BMR4560105/001DC DC CONVERTER 12V 420W |
59 |
|
Veri Sayfası |
BMR456 | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
QME48T35120-NJB0GDC DC CONVERTER 12V 420W |
270 |
|
Veri Sayfası |
ipwer™ | 5-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 11.0mm) | - | Enable, Active Low | - | - |
|
QME48T40033-NGB0GDC DC CONVERTER 3.3V 132W |
270 |
|
Veri Sayfası |
QME48T40 | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 40A | 132 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|

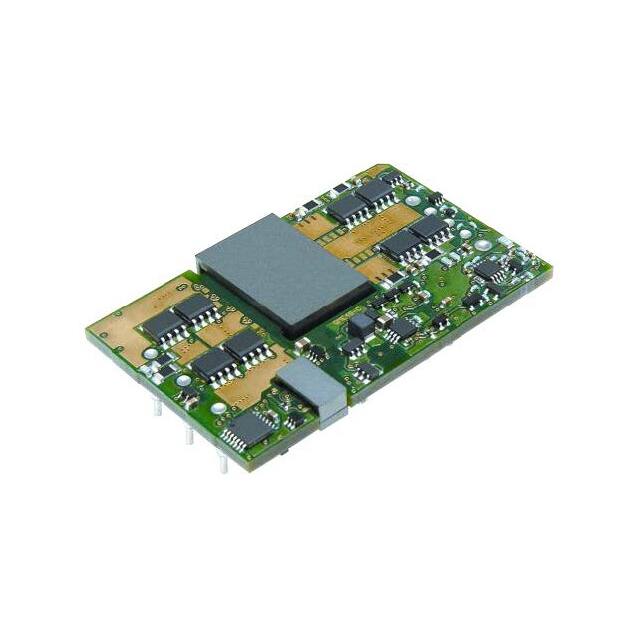

QME48T40012-NGB0GDC DC CONVERTER 1.2V 48W |
270 |
|
Veri Sayfası |
QME48T40 | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 1.2V | - | - | - | 40A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 10.9mm) | Quarter Brick | - | - | - |
