DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDF15072S2414-160VDC I/P 24VDC O/P |
26 |
|
Veri Sayfası |
RDF150 (150W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, EN, UKCA, UL | 50155; 62368-1 |
|

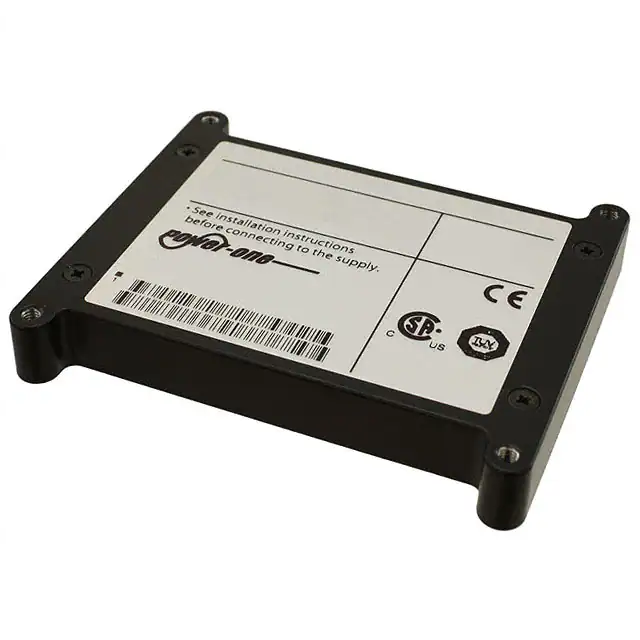

40IMX35D12D12-8GDC DC CONVERTER 12V 12V 12V 35W |
48 |
|
Veri Sayfası |
Melcher IMX35 (35W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 12V | 12V | 12V | - | 700mA, 700mA, 700mA | 35 W | 1.2 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|
|
LTM4683IY#PBFLOW VOUT QUAD 31.25A OR SINGLE 1 |
36 |
|
Veri Sayfası |
µModule® | 330-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.3 ~ 0.7V | - | - | - | 125A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 0.87" L x 0.59" W x 0.22" H (22.0mm x 15.0mm x 5.7mm) | 330-BGA (22x15) | - | - | - |
|
|
20IMX7-15-15-8MDC DC CONVERTER 15V 15V 7W |
239 |
|
Veri Sayfası |
Melcher IMX7 (7W) | 14-SMD Module, 8 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 15V | 15V | - | - | 200mA, 200mA | 7 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm) | - | - | - | - |
|
VHB350-D48-S28DC DC CONVERTER 28V 350W |
72 |
|
Veri Sayfası |
VHB350 (350W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 12.5A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 92.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.52" H (61.0mm x 57.9mm x 13.2mm) | - | Enable, Active High | EN | 55024; 55032 Class A; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3; 61000-6-4 |
|
|
ERM6H100N150W 1/4 BRICK, NEG-ENABLE, 36-1 |
120 |
|
Veri Sayfası |
ERM150 (150W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 6.25A | 150 W | 2 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.30" L x 1.47" W x 0.67" H (58.4mm x 37.3mm x 17.0mm) | - | Enable, Active Low | CE, UKCA | 50155; 62368-1 |
|
20IMX15-05-8RGDC DC CONVERTER 5.1V 15W |
95 |
|
Veri Sayfası |
Melcher IMX15 (15W) | 17-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 1 | 8.4V | 36V | 5.1V | - | - | - | 3.5A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
40IMX35D05D05-8GDC DC CONVERTER 5V 5V 5V 35W |
30 |
|
Veri Sayfası |
Melcher IMX35 (35W) | 19-DIP Module, 17 Leads | Tube | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 5V | 5V | 5V | - | 1.4A, 1.4A, 1.4A | 35 W | 1.5 kV | ITE (Commercial), Railway | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm) | - | - | - | - |
|

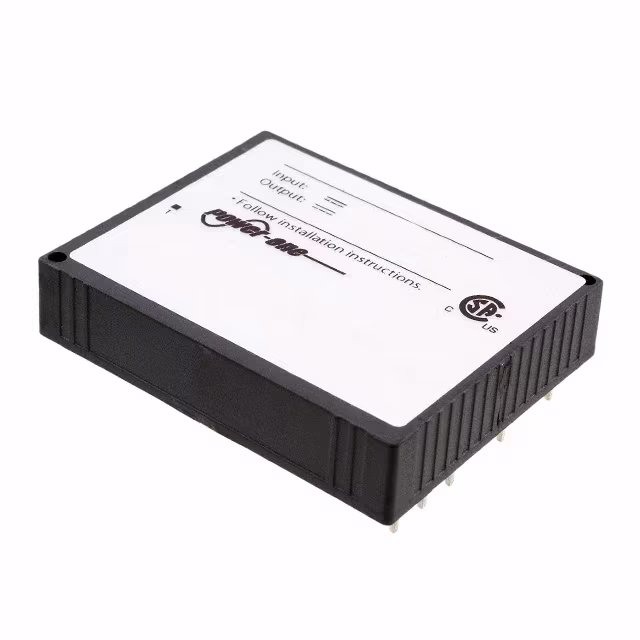

40IMX15-15-15-8GDC DC CONVERTER 15V 15V 15W |
100 |
|
Veri Sayfası |
Melcher IMX15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 15V | 15V | - | - | 560mA, 560mA | 15 W | 2.1 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
|
40IMX15-24-24-8GDC DC CONVERTER 24V 24V 15W |
60 |
|
Veri Sayfası |
Melcher IMX15 (15W) | 17-DIP Module, 11 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 2.1 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
|
20IMX15-05-05-8GDC DC CONVERTER 5V 5V 15W |
36 |
|
Veri Sayfası |
Melcher IMX15 (15W) | 17-DIP Module | Tube | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 5V | 5V | - | - | 1.3A, 1.3A | 15 W | 2.1 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
MTC0528S05DC DC CONVERTER 5V 5W |
35 |
|
Veri Sayfası |
MTC (5W) | 12-DIP Module, 9 Leads | Box | Active | Isolated Module | 1 | 15.5V | 40V | 5V | - | - | - | 800mA | 5 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 100°C | 77% | - | - | Through Hole | 1.26" L x 0.76" W x 0.34" H (32.0mm x 19.3mm x 8.7mm) | - | - | - | - |
|
36IBX15-50-0GDC DC CONVERTER 80V |
32 |
|
Veri Sayfası |
Melcher IBX15 | 17-DIP Module, 10 Leads | Bulk | Active | Non-Isolated PoL Module, Conformal Coated | 1 | 25.2V | 80V | 80V | - | - | - | 2.2A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 70°C | 95% | - | - | Through Hole | 2.16" L x 2.15" W x 0.45" H (54.9mm x 54.7mm x 11.5mm) | - | - | - | - |
|
AIH10H300N-LDC DC CONVERTER 24V 250W |
98 |
|
Veri Sayfası |
AIH (250W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 24V | - | - | - | 10.4A | 250 W | - | ITE (Commercial) | OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | - | - | - | - |
|
24IMX70-15-0TGDC DC CONVERTER 15V 90W |
60 |
|
Veri Sayfası |
Melcher IMX70 (70W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 15V | 33.6V | 15V | - | - | - | 6A | 90 W | 1.5 kV | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 95°C | 90% | - | - | Through Hole | 3.00" L x 2.50" W x 0.49" H (76.2mm x 63.5mm x 12.5mm) | - | - | - | - |
|
|
TEP 200-7215UIR200W HALF-BRICK DC/DC CONVERTER |
38 |
|
Veri Sayfası |
TEP 200UIR (200W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.4A | 202 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.40" L x 2.28" W x 0.51" H (61.0mm x 57.9mm x 13.0mm) | Half Brick | - | CB, cURus | 62368-1 |
|

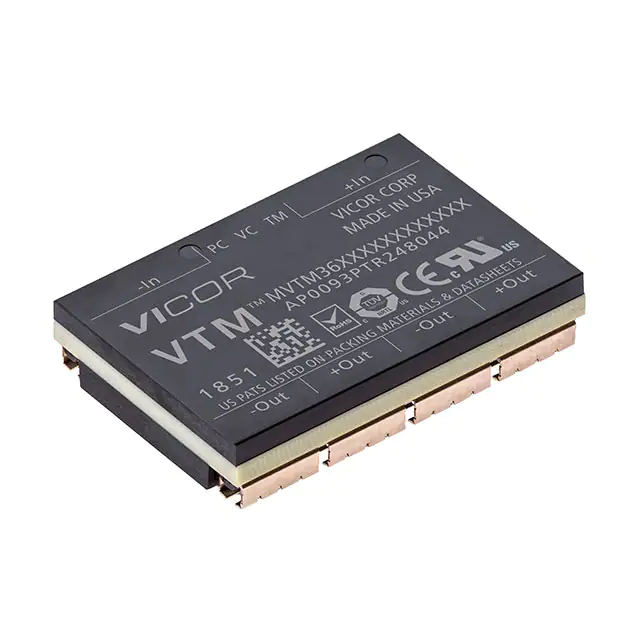

MVTM36BF045M027A00DC DC CONVERTER 4.5V 150W |
31 |
|
Veri Sayfası |
MVTM36 (150W) | Module | Tray | Active | Voltage Transformation Module | 1 | 26V | 50V | 4.5V | - | - | - | 27A | 150 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -55°C ~ 125°C | 94.7% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
|
110IMY15-05-8RG-GDC DC CONVERTER 5.1V 15W |
71 |
|
Veri Sayfası |
IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 50V | 150V | 5.1V | - | - | - | 3.5A | 15 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.4mm) | - | - | cCSAus, CE | 60950-1; 62368-1 |
|
|
110IMY15-05-8RGZ-GDC DC CONVERTER 5.1V 15W |
60 |
|
Veri Sayfası |
Melcher IMY15 (15W) | 17-DIP Module, 6 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 50V | 150V | 5.1V | - | - | - | 2.5A | 15 W | 4.2 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
|
|
110IMY15-24-24-8GDC DC CONVERTER 24V 24V 15W |
60 |
|
Veri Sayfası |
Melcher IMY15 (15W) | 17-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 50V | 150V | 24V | 24V | - | - | 350mA, 350mA | 15 W | 4.2 kV | ITE (Commercial), Railway | OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm) | - | - | - | - |
