DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F2412XT-1WR3-TRDC DC CONVERTER 12V 1W |
459 |
|
Veri Sayfası |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
IVB0105S05DC DC CONVERTER SINGLE 5V 1W |
217 |
|
Veri Sayfası |
IVB01 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, UKCA, UL | 62368-1 |
|
F1205D-1WR3DC DC CONVERTER 5V 1W |
358 |
|
Veri Sayfası |
F1205D-1WR3 (1W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.79" L x 0.39" W x 0.28" H (20.0mm x 10.0mm x 7.0mm) | - | - | - | - |
|
A0512S-1WR3DC DC CONVERTER +/-12V 1W |
2,923 |
|
Veri Sayfası |
A_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
A0515S-1WR3DC DC CONVERTER +/-15V 1W |
904 |
|
Veri Sayfası |
A_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
A0509S-1WR3DC DC CONVERTER +/-9V 1W |
160 |
|
Veri Sayfası |
A_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
TPS826716SIPRDC DC CONVERTER 1.6V 1W |
0 |
|
Veri Sayfası |
MicroSip™ | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.3V | 4.8V | 1.6V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm) | 8-uSIP (2.9x2.3) | Enable, Active High | - | - |
|
TPS826745SIPRDC DC CONVERTER 1.225V 0.735W |
0 |
|
Veri Sayfası |
MicroSip™ | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.3V | 4.8V | 1.225V | - | - | - | 600mA | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm) | 8-uSIP (2.9x2.3) | Enable, Active High | - | - |
|
|
TPS82672SIPRDC DC CONVERTER 1.5V 0.90W |
0 |
|
Veri Sayfası |
MicroSip™ | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.3V | 4.8V | 1.5V | - | - | - | 600mA | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm) | 8-uSIP (2.9x2.3) | Enable, Active High | - | - |
|
|
IAB0105D09DC DC CONVERTER DUAL 9V 1W |
133 |
|
Veri Sayfası |
IAB01 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, UKCA, UL | 62368-1 |
|

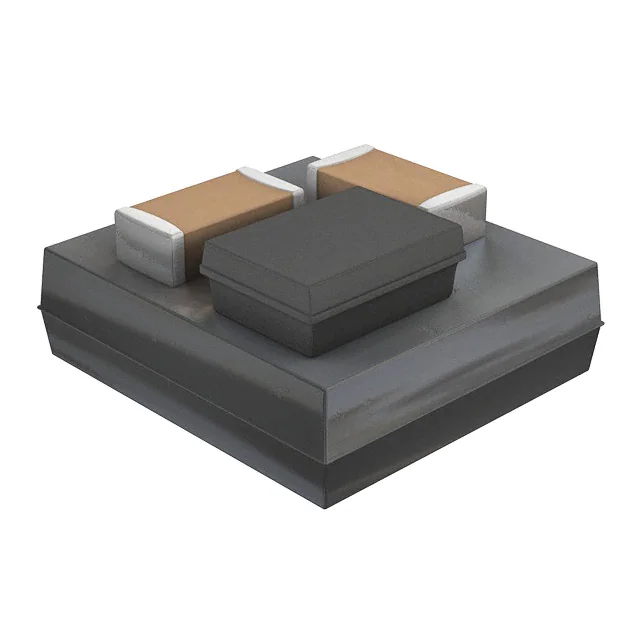

LXDC2UR30A-143DC DC CONVERTER 3V 2W |
2,370 |
|
- |
LXDC2UR | 9-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 3.6V | 5.5V | 3V | - | - | - | 600mA | 2 W | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.10" L x 0.09" W x 0.04" H (2.5mm x 2.3mm x 1.1mm) | - | - | - | - |
|
|
B1212T-1WR3ISOLATED MODULE DC DC CONVERTER |
123 |
|
Veri Sayfası |
B_T-1WR3 (1W) | 8-SMD Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, EN, UKCA | 62368-1 |
|
|
XCL232D091KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,975 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 0.9V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
|
XCL232B111KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,967 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 1.1V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
|
B0303T-1WR3ISOLATED MODULE DC DC CONVERTER |
197 |
|
Veri Sayfası |
B03_T-1WR3 (1W) | 8-SMD Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 77% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
|
B0305T-1WR3ISOLATED MODULE DC DC CONVERTER |
152 |
|
Veri Sayfası |
B03_T-1WR3 (1W) | 8-SMD Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|
IF0503S-1WR3DC DC CONVERTER 3.3V 825MW |
175 |
|
Veri Sayfası |
IF05_S-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 3.3V | - | - | - | 250mA | 825 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 67% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UKCA | 62368-1 |
|
|
B2415D-2WR3ISOLATED MODULE DC DC CONVERTER |
166 |
|
Veri Sayfası |
B_D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 1.99 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
|
B2424D-2WR3ISOLATED MODULE DC DC CONVERTER |
156 |
|
Veri Sayfası |
B_D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.99 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
F0512XT-1WR3-TRDC DC CONVERTER 12V 1W |
4,242 |
|
Veri Sayfası |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus | - |
