DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UHE-3.3/7500-Q48-CDC DC CONVERTER 3.3V 25W |
0 |
|
Veri Sayfası |
UHE (30W) | 9-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 7.5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
PQA100-48-S24H-ODC-DC ISOLATED, 100W, 36~75 VDC |
0 |
|
Veri Sayfası |
PQA100-O (100W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 4.17A | 100 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.52" H (58.4mm x 22.9mm x 13.2mm) | Eighth Brick | - | CE, UKCA | 62368-1 |
|

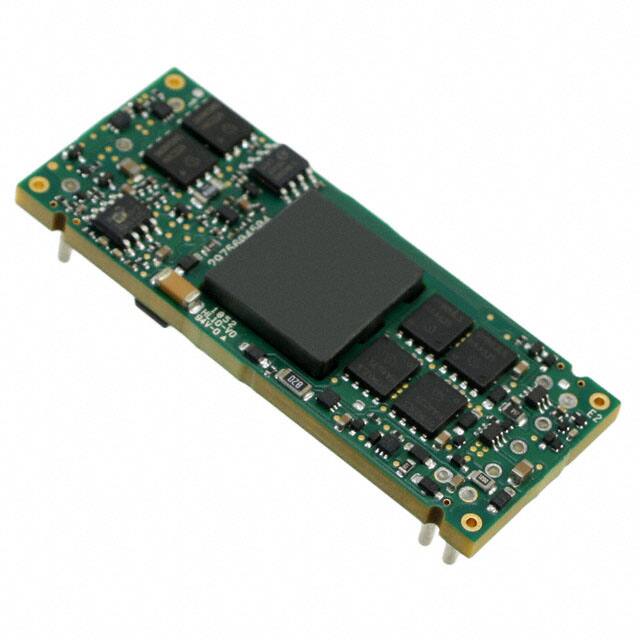

E48SP3R360NRFADC DC CONVERTER 3.3V 200W |
0 |
|
Veri Sayfası |
Delphi E48SP (200W) | 10-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 60A | 200 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 118°C | 92.3% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 10.9mm) | - | Enable, Active Low | - | - |
|
URE1D15LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | - | 60950-1 |
|
URE1D12LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | 60950-1 |
|
URB1D03LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 5A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | 60950-1 |
|
URB1D15LMD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 15V | - | - | - | 1.333A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D03LMD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 5A | 17 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URE1D15LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | 60950-1 |
|
|
URE1D12LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | - | 60950-1 |
|
|
URB1D05LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | 60950-1 |
|
URB1D12LMD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 1.667A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D24LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 833mA | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | 60950-1 |
|
URB1D03LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 3.3V | - | - | - | 5A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CE | 60950-1 |
|
|
URB1D03LMD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 5A | 17 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URE1D24LD-20WR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | - | 60950-1 |
|
|
URB1D15LMD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 15V | - | - | - | 1.333A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D05LMD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LMD-15WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URE1D24LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URE1D_LD-20WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 40V | 160V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | - | 60950-1 |
|
|
URB1D05LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1 |
|
Veri Sayfası |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 5V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CE | 60950-1 |
