DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E0515S-2WR3DC DC CONVERTER +/-15V 2W |
231 |
|
Veri Sayfası |
E0515S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
A0505D-2WR3DC DC CONVERTER +/-5V 2W |
150 |
|
Veri Sayfası |
A0505D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
F0524D-2WR3DC DC CONVERTER 24V 2W |
140 |
|
Veri Sayfası |
F0524D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
E0512S-2WR3DC DC CONVERTER +/-12V 2W |
124 |
|
Veri Sayfası |
E0512S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
E0503D-2WR3DC DC CONVERTER +/-3.3V 2W |
123 |
|
Veri Sayfası |
E0503D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 303mA, 303mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
F0512D-2WR3DC DC CONVERTER 12V 2W |
118 |
|
Veri Sayfası |
F0512D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
E0515D-2WR3DC DC CONVERTER +/-15V 2W |
110 |
|
Veri Sayfası |
E0515D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) | - | - | - | - |
|
AM1S-0505SH30ZDC DC CONVERTER 5V 1W |
1,200 |
|
Veri Sayfası |
AM1S-Z (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE | - |
|
K78L05-3AR3DC DC CONVERTER 5V |
241 |
|
Veri Sayfası |
K78(L)xx-3AR3 | 12-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 8V | 36V | 5V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm) | - | - | CE | 62368-1 |
|
K78L12-3AR3DC DC CONVERTER 12V |
144 |
|
Veri Sayfası |
K78(L)xx-3AR3 | 12-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 97% | - | - | Through Hole | 1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm) | - | - | CE | 62368-1 |
|

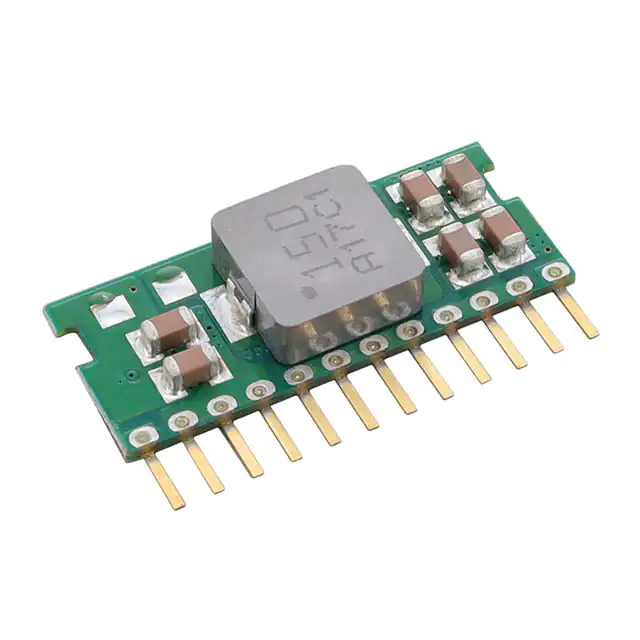

K78LX6-3AR3DC DC CONVERTER 6.5V |
115 |
|
Veri Sayfası |
K78(L)xx-3AR3 | 12-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 10V | 36V | 6.5V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 1.20" L x 0.23" W x 0.49" H (30.6mm x 5.8mm x 12.5mm) | - | - | CE | 62368-1 |
|
XCL232B181KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
1,140 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 1.8V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
B1515LS-1WR3DC DC CONVERTER 15V 1W |
266 |
|
Veri Sayfası |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
B1505LS-1WR3DC DC CONVERTER 5V 1W |
202 |
|
Veri Sayfası |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
SC24S15-2WH2DC DC CONVERTER 15V 1.995W |
20,000 |
|
Veri Sayfası |
- | 7-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 22.8V | 25.2V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
S12HS05-1WH2DC DC CONVERTER 5V 1W |
19,990 |
|
Veri Sayfası |
- | 7-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80 ~ 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
|
XCL232D081KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,997 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 0.8V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
|
XCL232B121KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,985 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 1.2V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
|
XCL232D181KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,891 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 1.8V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
|
|
XCL232D161KR-GULTRA-LLOW QUIESCENT CURRENT, IN |
2,795 |
|
Veri Sayfası |
XCL232 | 6-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 1.6V | - | - | - | 150mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.08" L x 0.10" W x 0.04" H (2.0mm x 2.5mm x 1.0mm) | CL-2025-03 | Enable, Active High | - | - |
