DC-DC Dönüştürücüler
| Fotoğraf | Üretici Parça # | Mevcutluk | Miktar | Veri Sayfası | Seri | Paket/Kutular | Paketlenme | Ürün Durumu | Tür | Çıkış Sayısı | Voltaj - Giriş (Minimum) | Voltaj - Giriş (Maksimum) | Voltaj - Çıkış 1 | Voltaj - Çıkış 2 | Voltaj - Çıkış 3 | Voltaj - Çıkış 4 | Akım - Çıkış (Maksimum) | Güç (Watt) | Voltaj - Yalıtım | Uygulamalar | Özellikler | Çalışma Sıcaklığı | Verimlilik | Sınıf | Kalite Belirtimi | Montaj Türü | Boyut / Ölçü | Tedarikçi Cihaz Paketi | Kontrol Özellikleri | Onay Ajansı | Standart Numarası |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP10-2415SA/XCDC DC CONVERTER 15V 10W |
0 |
|
Veri Sayfası |
POWERLINE RP10-A (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 670mA | 10 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
RP10-2424SA/XCDC DC CONVERTER 24V 10W |
0 |
|
Veri Sayfası |
POWERLINE RP10-A (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 416mA | 10 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
RP10-4815SA/XCDC DC CONVERTER 15V 10W |
0 |
|
Veri Sayfası |
POWERLINE RP10-A (10W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 670mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
QBVW025A0BZDC DC CONVERTER 12V 300W |
0 |
|
Veri Sayfası |
Barracuda™ QBVW025A0B (300W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.6mm) | - | Enable, Active High | - | - |
|
REC20-2415SZDC DC CONVERTER 15V 20W |
0 |
|
Veri Sayfası |
ECONOLINE REC20-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 100°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
RP10-1103.3SRAW10W DC/DC-CONVERTER 'POWERLINE' |
0 |
|
Veri Sayfası |
RP10-RAW (10W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 3.3V | - | - | - | 2.5A | 10 W | 3 kV | Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CE, cURus, UKCA | 60601-1 |
|
|
RP10-1105.1SRAW10W DC/DC-CONVERTER 'POWERLINE' |
0 |
|
Veri Sayfası |
RP10-RAW (10W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 5.1V | - | - | - | 2A | 10 W | 3 kV | Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm) | - | - | CE, cURus, UKCA | 60601-1 |
|
|
PT4501CDC DC CONVERTER 3.3V 20W |
0 |
|
Veri Sayfası |
Excalibur™ PT4500 (20W) | 12-SIP SMD Module | Tray | Obsolete | Isolated Module | 1 | 18V | 40V | 3.3V | - | - | - | 5A | 20 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Surface Mount | 2.58" L x 1.19" W x 0.34" H (65.5mm x 30.2mm x 8.6mm) | - | - | - | - |
|

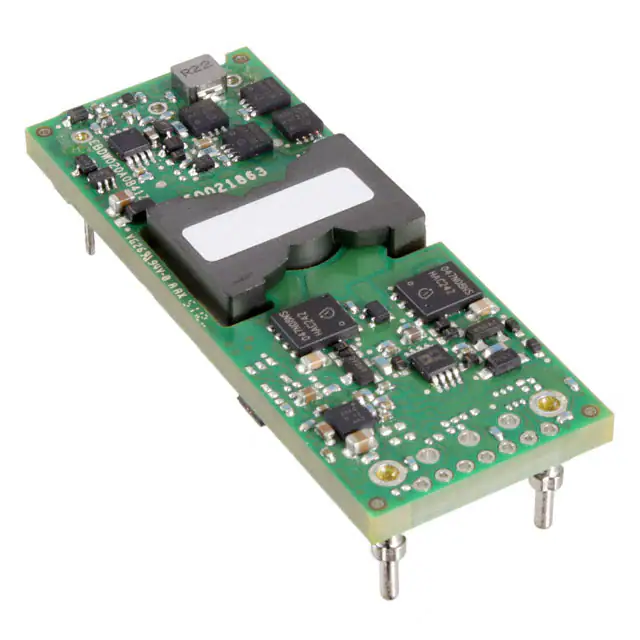

EBVW025A0B41ZDC DC CONVERTER 12V 300W |
0 |
|
Veri Sayfası |
Barracuda™ EBVW025A0B (300W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 94.7% | - | - | Through Hole | 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm) | - | Enable, Active High | - | - |
|
THN 15-7221WIRDC DC CONVERTER +/-5V 15W |
0 |
|
Veri Sayfası |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THN 15-7222WIRDC DC CONVERTER +/-12V 15W |
0 |
|
Veri Sayfası |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
|
THN 15-7225WIRDC DC CONVERTER +/-24V 15W |
0 |
|
Veri Sayfası |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 160V | 24V | -24V | - | - | 315mA, 315mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
TRI 10-4822DC DC CONVERTER +/-12V 10W |
0 |
|
Veri Sayfası |
TRI 10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm) | - | - | CB, cURus | - |
.jpg)
|
TEN 15-4822WIDC DC CONVERTER +/-12V 15W |
0 |
|
Veri Sayfası |
TEN 15WI (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
TEN 15-4823WIDC DC CONVERTER +/-15V 15W |
0 |
|
Veri Sayfası |
TEN 15WI (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
UEI-12/5-Q48P-CDC DC CONVERTER 12V 60W |
0 |
|
Veri Sayfası |
UEI (60W) | 9-DIP Module, 6 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89.9% | - | - | Through Hole | 1.90" L x 1.50" W x 0.38" H (48.3mm x 38.1mm x 9.7mm) | - | - | - | - |
|
|
UEI-5/12-Q48PR-CDC DC CONVERTER 5V 60W |
0 |
|
Veri Sayfası |
UEI (60W) | 9-DIP Module, 8 Leads | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C | 91% | - | - | Through Hole | 1.90" L x 1.50" W x 0.38" H (48.3mm x 38.1mm x 9.7mm) | - | Enable, Active High | - | - |
|
JHM1512D12DC DC CONVERTER +/-12V 15W |
0 |
|
Veri Sayfası |
JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 87% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
JHM1512D15DC DC CONVERTER +/-15V 15W |
0 |
|
Veri Sayfası |
JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
JHM1524D05DC DC CONVERTER +/-5V 15W |
0 |
|
Veri Sayfası |
JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 83% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
